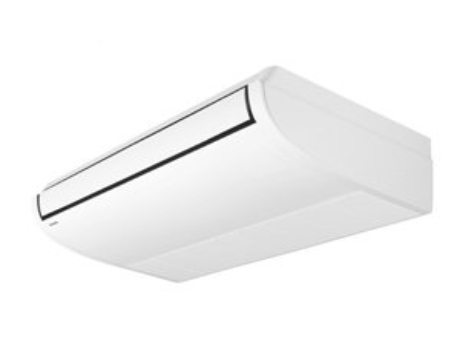

Panasonic S-71PT2E5B 7.1kW 1 Phase Under Ceiling System

S-71PT2E5B/U-71PZ2R5 Under Ceiling Air Conditioner

$3,681.00 Incl GST
$3,346.36 Excl GST
Sold Out

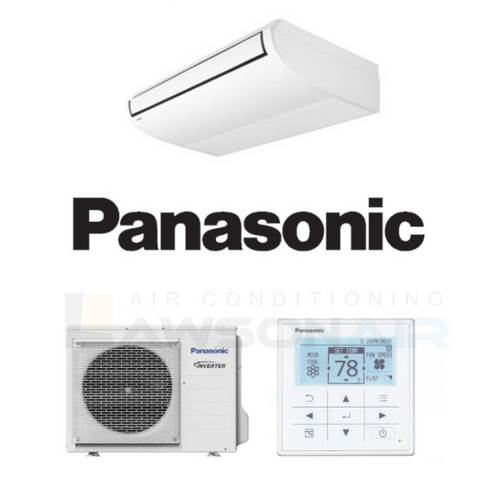

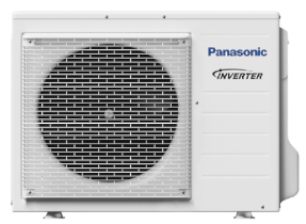

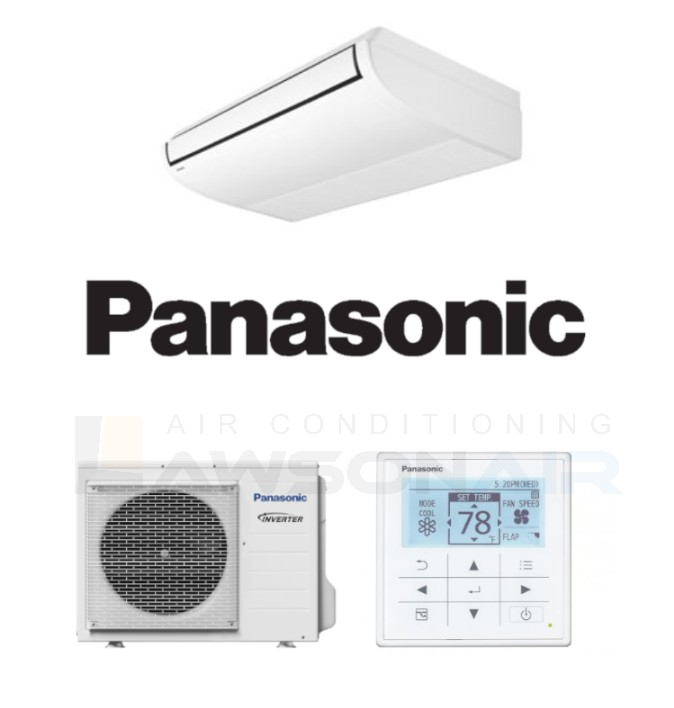

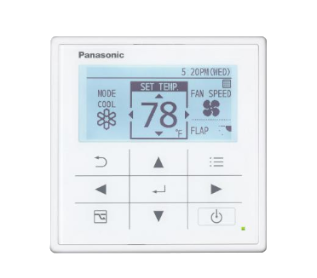

Panasonic S-71PT2E5B 7.1kW Under Ceiling System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-71PZ2R5

Providing outstanding energy-saving performance, comfort and long-distance airflow distribution, these units are perfect for retail stores and schools.


  • Compact looking, stylish, one-motion design
  • Energy-saving technology delivering top-class efficiency
  • Comfortable, long-distance airflow distribution


Rated Capacity Cool (kW) 7.1
Heat (kW) 7.1
Capacity Range Cool (kW) (2.0 - 8.0)
Heat (kW) (1.8 - 8.6)
Power Input (Rated) Cool (kW) 1.93
Heat (kW) 1.62
E.E.R./C.O.P. Cool/Heat 3.68/4.38
Air Flow Rate (Rated) I/S 350
Indoor Sound Level (H/M/L) dBA 57/53/49
Piping Length (m) 3 - 40
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 235 x 1275 x 690
Outdoor (mm) 695 x 875 x 320
Weight Indoor(kg) 33
Outdoor(kg) 44
Power Supply V/Hz 1 Phase, 240V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
Gas (mm) Ø15.88
Drain (mm) VP-25
Supply Air Opening mm (HxW, Flange) TBA
Return Air Opening mm (Oval) TBA
Outdoor Operating Range Cool (°CDB) - 10 to 43
Heat (°CWB) - 15 to 24
Sound Power Level  dBA (C/H) 67/67
Outdoor Sound Level  Pressure dBA (C/H) 49/49
Brand Panasonic
Shipping Weight 77.0000kg
