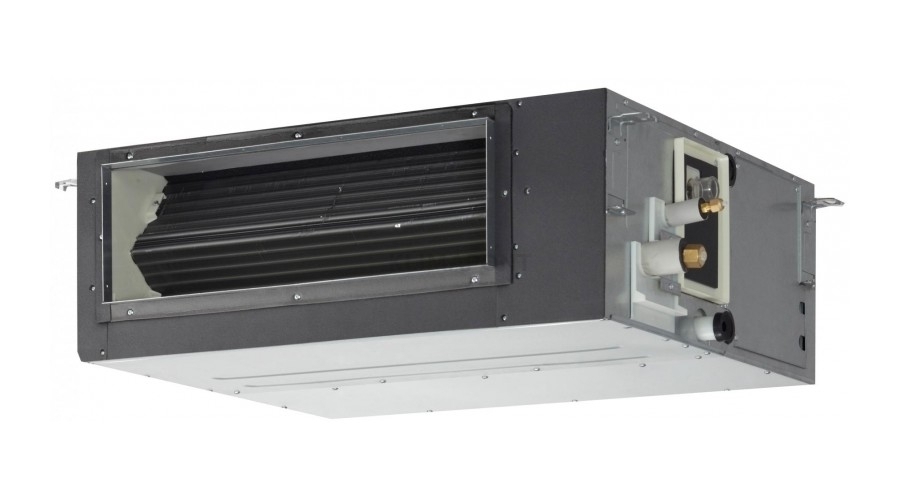

Panasonic S-71PF1E5B 7.1kW Slimline 1 Phase Ducted System
S-71PF1E5B/U-71PZ2R5 Ducted System Air Conditioner
$2,566.36 Excl GST
.jpg)

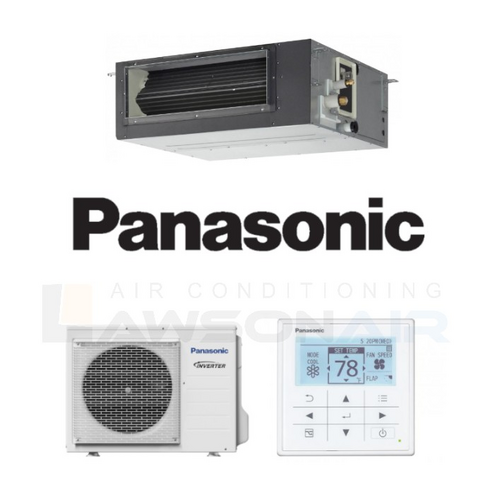

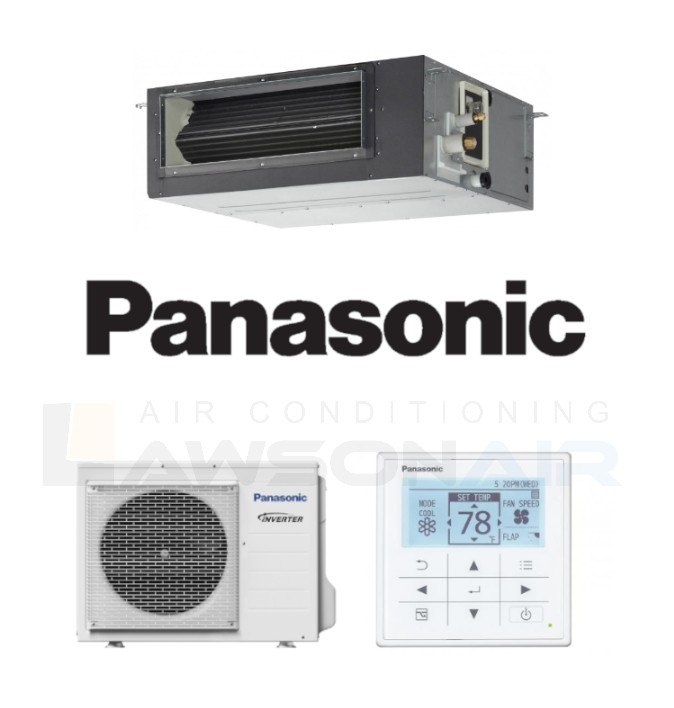

Panasonic S-71PF1E5B 7.1kW Slimline Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-71PZ2R5
Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.
Features:
- Variable external static pressure control
- System example
- More powerful drain pump
(S-71PF1E5B)
| INDOOR UNIT | S-71PF1E5B | |

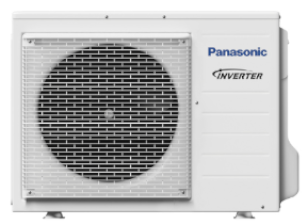

| OUTDOOR UNIT | U-71PZ2R5 | |
| Rated Capacity | Cool (kW) | 7.1 |
| Heat (kW) | 7.1 | |
| Capacity Range | Cool (kW) | (2.0 - 8.0) |
| Heat (kW) | (1.8 - 8.6) | |
| Power Input (Rated) | Cool (kW) | 2.08 |
| Heat (kW) | 1.71 | |
| E.E.R./C.O.P. | Cool/Heat | 3.41/4.15 |
| Air Flow Rate (Rated) | I/S | 350 |
| Indoor Sound Level (H/M/L) | dBA | 57/54/48 |
| Piping Length | (m) | 3 - 40 |
| Indoor Fan Speeds (No.) | 3 | |
| Dimensions (HxWxD) | Indoor (mm) | 290 x 1000 x 700 |
| Outdoor (mm) | 695 x 875 x 320 | |
| Weight | Indoor(kg) | 33 |
| Outdoor(kg) | 44 | |
| Power Supply | V/Hz | 1 Phase, 240V, 50Hz |
| Compressor Type | TBA | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | Ø9.52 |
| Gas (mm) | Ø15.88 | |
| Drain (mm) | VP-25 | |
| Supply Air Opening | mm (HxW, Flange) | TBA |
| Return Air Opening | mm (Oval) | TBA |
| Outdoor Operating Range | Cool (°CDB) | - 10 to 43 |
| Heat (°CWB) | - 15 to 24 | |
| Sound Power Level | dBA (C/H) | 67/67 |
| Outdoor Sound Level | Pressure dBA (C/H) | 49/49 |
| SKU | S-71PF1E5B |
| Brand | Panasonic |
| Shipping Weight | 77.0000kg |
