Panasonic S-60PU2E5B 6.0 kW Wired Single Phase Cassette System

S-60PU2E5B/U-60PZ2R5 Cassette System




$3,242.00 Incl GST
$2,947.27 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

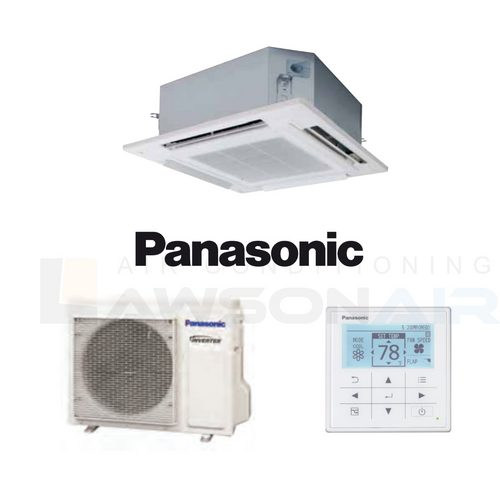

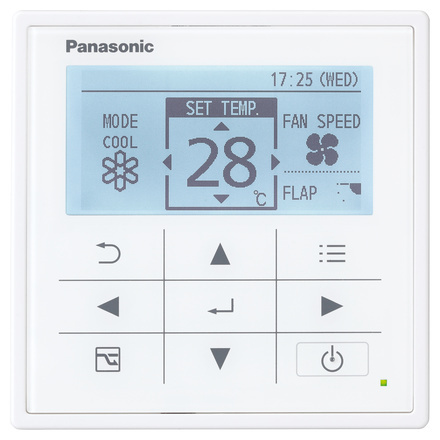

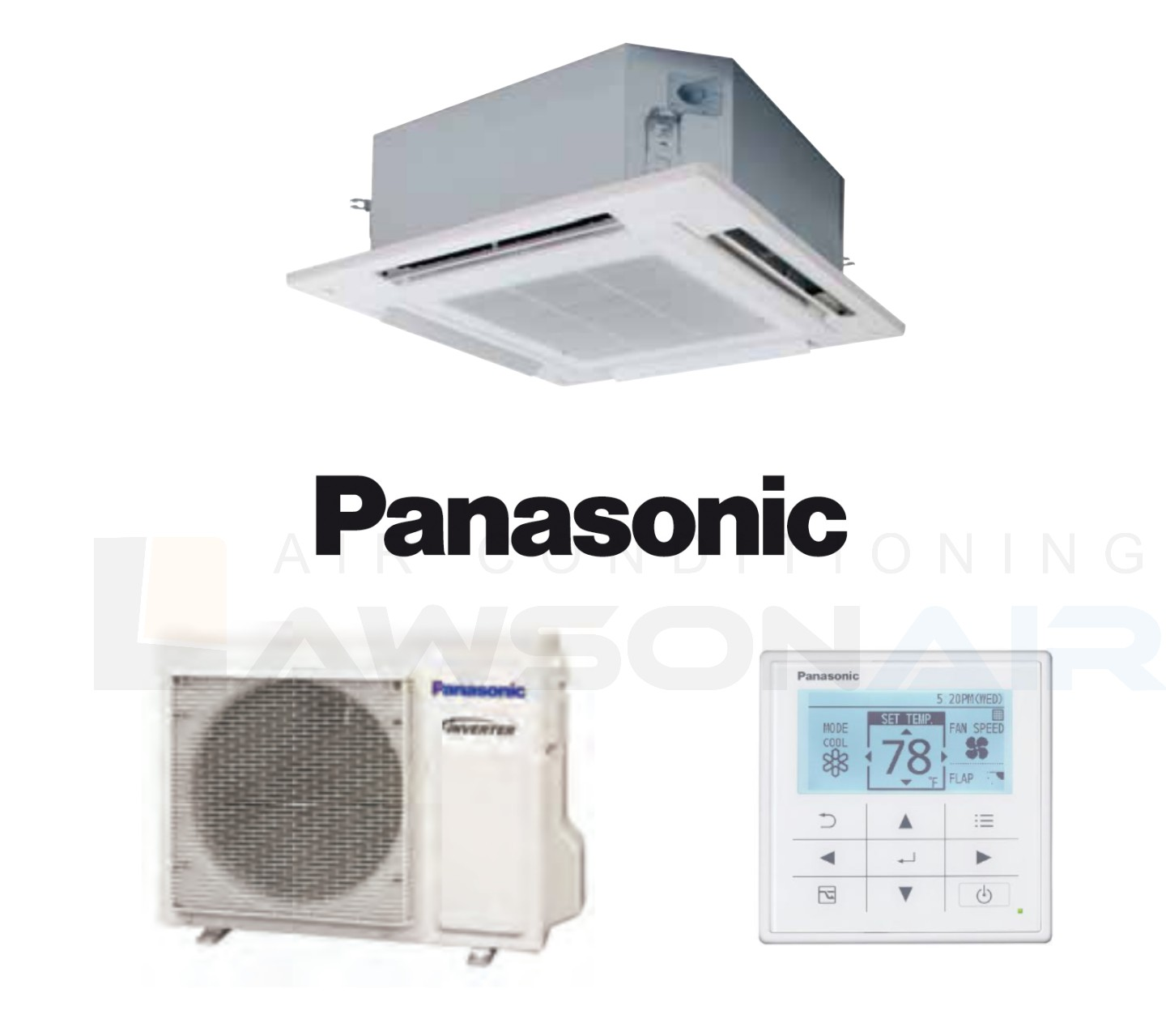

Panasonic S-60PU2E5B 6.0 kW Single Phase Cassette System - Includes Wired Controller & Outdoor Unit U-60PZ2R5

Thanks to advances in design and technology such as the high performance turbo fan, more efficient and silent, the nanoe™ X air cleaner, the U2 Panasonic 4 way 90x90 cassette offers high energy saving, fresh air and comfort.



Features:

  • High performance turbo fan, path system for heat exchanger
  • Light weight, easy piping
  • Easy installation structure of the panel
  •  Lower noise in slow fan operation

(S-60PU2E5B)

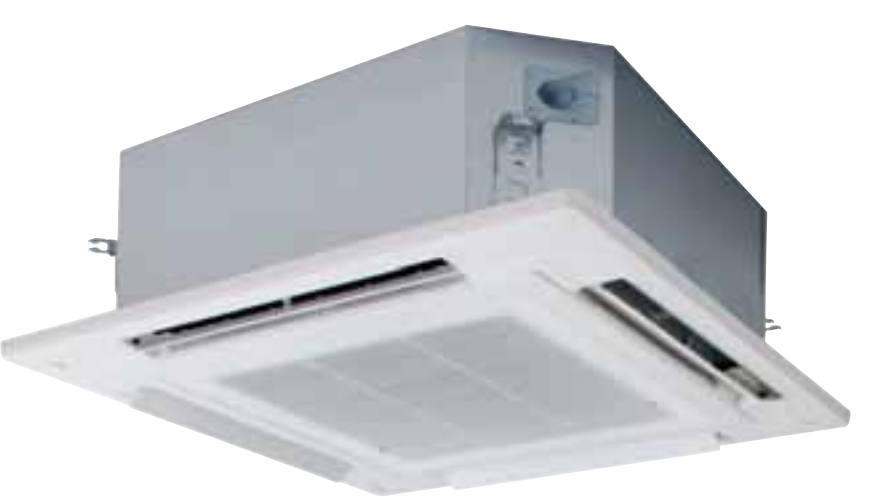

Indoor Unit S-60PU2E5B
Outdoor Unit U-60PZ2R5
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 6.0
Cooling Capacity Range - Min ~ Max kW 2.00 ~ 7.10
EER w/w 3.75
Heating Capacity Rated Conditions kW 7.0
Heating Capacity Range - Min ~ Max kW 1.80 ~ 8.00
COP w/w 4.07
Sound Pressure Indoor - Cool - Hi / Med / Lo dB(A) 36 / 31 / 28
Sound Pressure Outdoor - Cool / Heat  dB(A) 46 / 49
Air Flow - Cool / Heat L/s 633 / 683
Indoor Dimensions - H x W x D mm 256  x 840 x 840
Outdoor Dimensions - H x W x D mm 619 x 799 x 299
Panel Dimensions - H x W x D mm 33.5 x 950 x 950
Weight - Indoor kg 20
Weight - Outdoor kg 40
Weight - Panel kg 5
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm Ø9.52 / Ø15.88
Piping Length Range Min ~ Max m 3 ~40
Pipe Length for Additional Gas m 30
Operating Temperature Range - Outdoor - Cooling °C -15 ~ 46
Operating Temperature Range - Outdoor - Heating °C -20 ~ 24
SKU S-60PU2E5B
Brand Panasonic
Shipping Weight 65.0000kg
Shipping Cubic 0.359199000m3
