Panasonic S-60PF1E5B 6.0kW Slimline 1 Phase Ducted System

S-60PF1E5B/U-60PZ2R5 Ducted System Air Conditioner




$2,735.00 Incl GST
$2,486.36 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

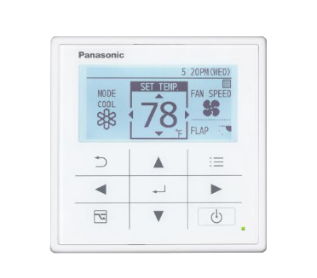

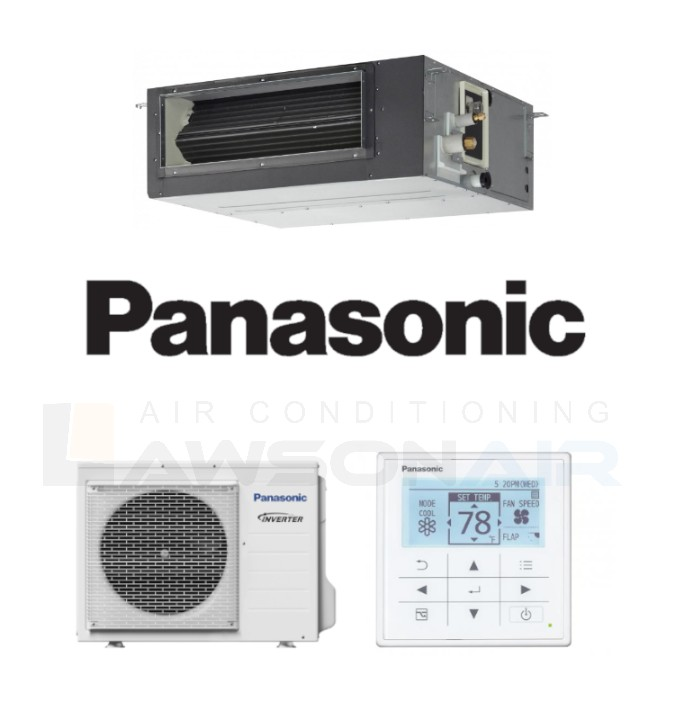

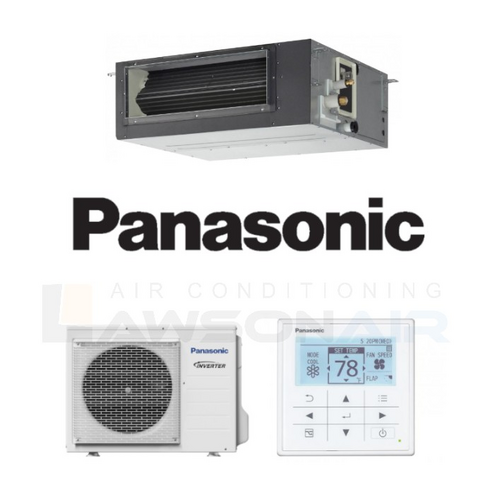

Panasonic S-60PF1E5B 6.0kW Slimline Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-60PZ2R5

Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.

Features:

  • Variable external static pressure control
  • System example
  • More powerful drain pump

(S-60PF1E5B)

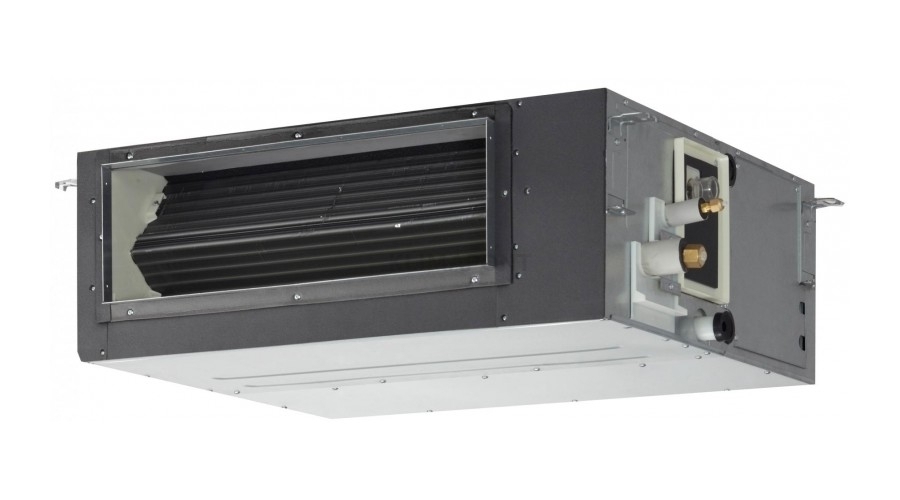

INDOOR UNIT S-60PF1E5B

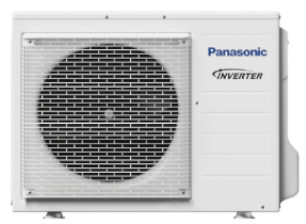

OUTDOOR UNIT U-60PZ2R5
Rated Capacity Cool (kW) 6.0
Heat (kW) 6.0
Capacity Range Cool (kW) (2.0 - 7.1)
Heat (kW) (1.8 - 7.6)
Power Input (Rated) Cool (kW) 1.58
Heat (kW) 1.33
E.E.R./C.O.P. Cool/Heat 3.80/4.51
Air Flow Rate (Rated) I/S 350
Indoor Sound Level (H/M/L) dBA 57/54/48
Piping Length (m) 3 - 40
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 290 x 1000 x 700
Outdoor (mm) 695 x 875 x 320
Weight Indoor(kg) 33
Outdoor(kg) 44
Power Supply V/Hz 1 Phase, 240V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
Gas (mm) Ø15.88
Drain (mm) VP-25
Supply Air Opening mm (HxW, Flange) TBA
Return Air Opening mm (Oval) TBA
Outdoor Operating Range Cool (°CDB) - 10 to 43
Heat (°CWB) - 15 to 24
Sound Power Level  dBA (C/H) 65/66
Outdoor Sound Level  Pressure dBA (C/H) 46/48
SKU S-60PF1E5B
Brand Panasonic
Shipping Weight 44.0000kg
Shipping Cubic 0.397600000m3
