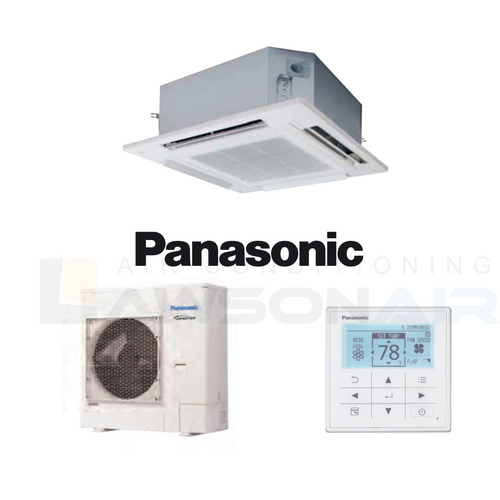

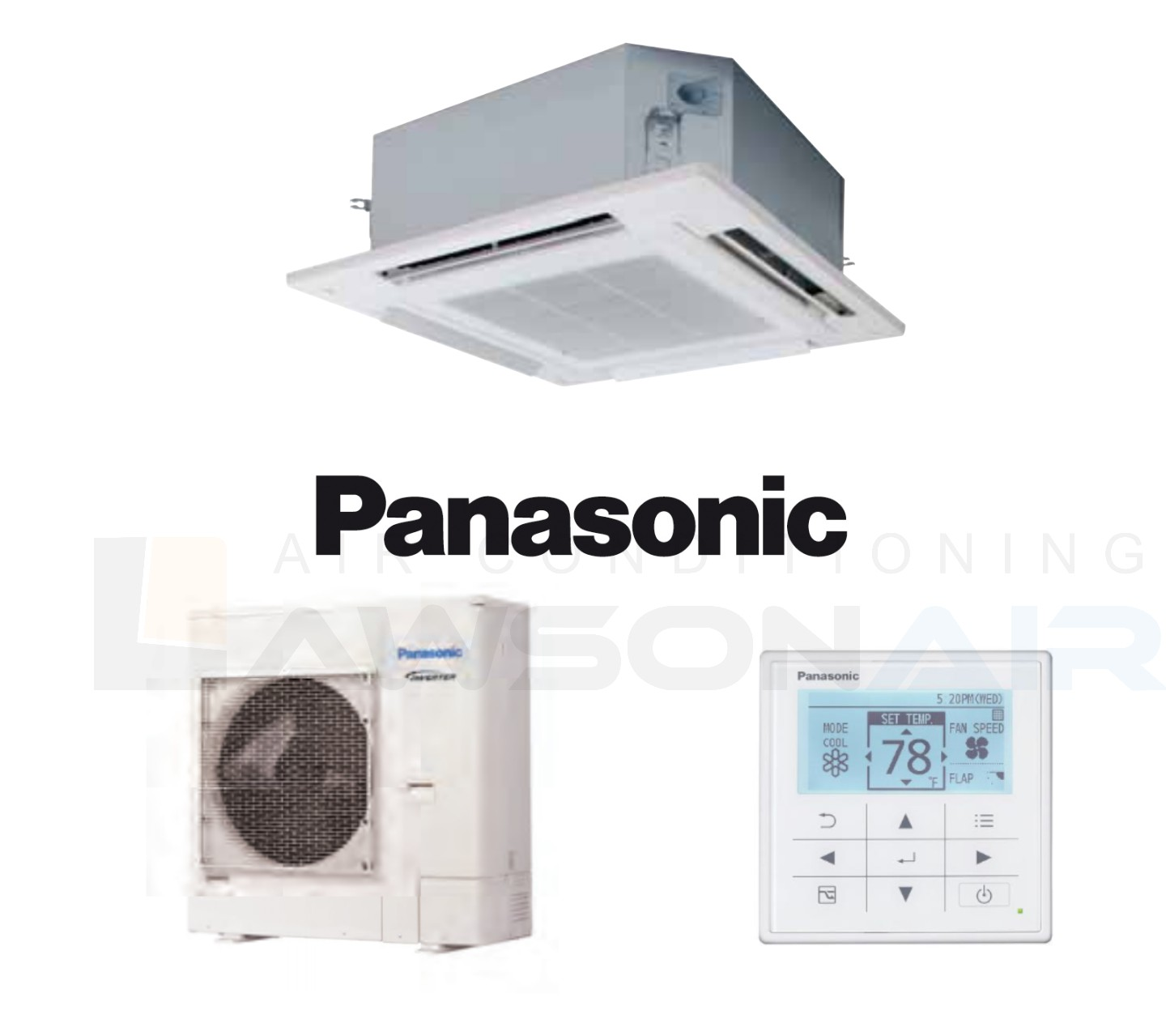

Panasonic S-140PU2E5B 14.0 kW Wired Three Phase Cassette System

S-140PU2E5B/U-140PZ2R8 Cassette System




$5,902.00 Incl GST
$5,365.45 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

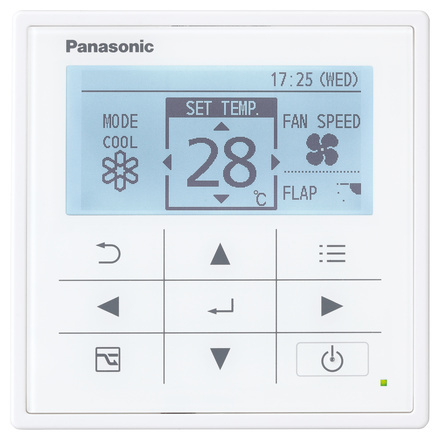

Panasonic S-140PU2E5B 14.0 kW Three Phase Cassette System - Includes Wired Controller & Outdoor Unit U-140PZ2R8

Thanks to advances in design and technology such as the high performance turbo fan, more efficient and silent, the nanoe™ X air cleaner, the U2 Panasonic 4 way 90x90 cassette offers high energy saving, fresh air and comfort.



Features:

  • High performance turbo fan, path system for heat exchanger
  • Light weight, easy piping
  • Easy installation structure of the panel
  • Lower noise in slow fan operation

(S-140PU2E5B-3P)

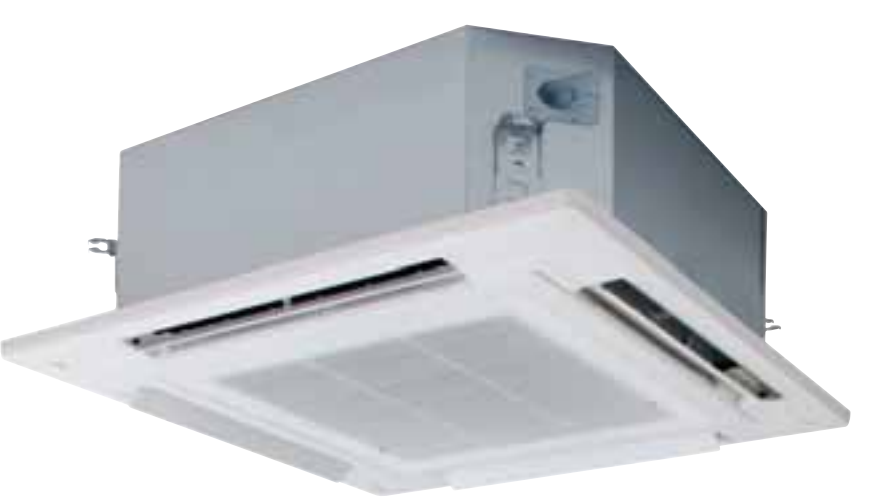

Indoor Unit S-140PU2E5B
Outdoor Unit U-140PZ2R8
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 14.0
Cooling Capacity Range - Min ~ Max kW 3.30 ~ 15.50
EER w/w 3.30
Heating Capacity Rated Conditions kW 16.0
Heating Capacity Range - Min ~ Max kW 4.10~ 18.00
COP w/w 4.30
Sound Pressure Indoor - Cool - Hi / Med / Lo dB(A) 47 / 40 / 34
Sound Pressure Outdoor - Cool / Heat  dB(A) 54 / 55
Air Flow - Cool / Heat L/s 2250 / 2000
Indoor Dimensions - H x W x D mm 319  x 840 x 840
Outdoor Dimensions - H x W x D mm 1416 x 940 x 340
Panel Dimensions - H x W x D mm 33.5 x 950 x 950
Weight - Indoor kg 25
Weight - Outdoor kg 98
Weight - Panel kg 5
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm Ø9.52 / Ø15.88
Piping Length Range Min ~ Max m 5 ~75
Pipe Length for Additional Gas m 30
Operating Temperature Range - Outdoor - Cooling °C -15 ~ 46
Operating Temperature Range - Outdoor - Heating °C -20 ~ 24
SKU S-140PU2E5B-3P
Brand Panasonic
Shipping Weight 128.0000kg
Shipping Cubic 0.708325000m3
