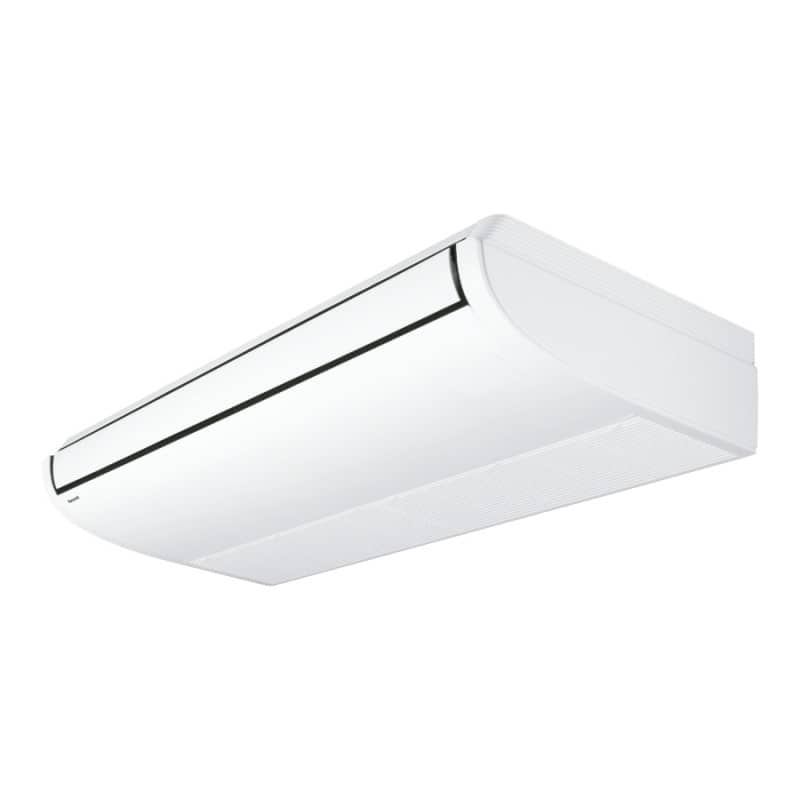

Panasonic S-140PT2E5B 14.0kW 1 Phase Under Ceiling System

S-140PT2E5B/U-140PZ2R5 Under Ceiling Air Conditioner

$6,320.00 Incl GST
$5,745.45 Excl GST
Sold Out

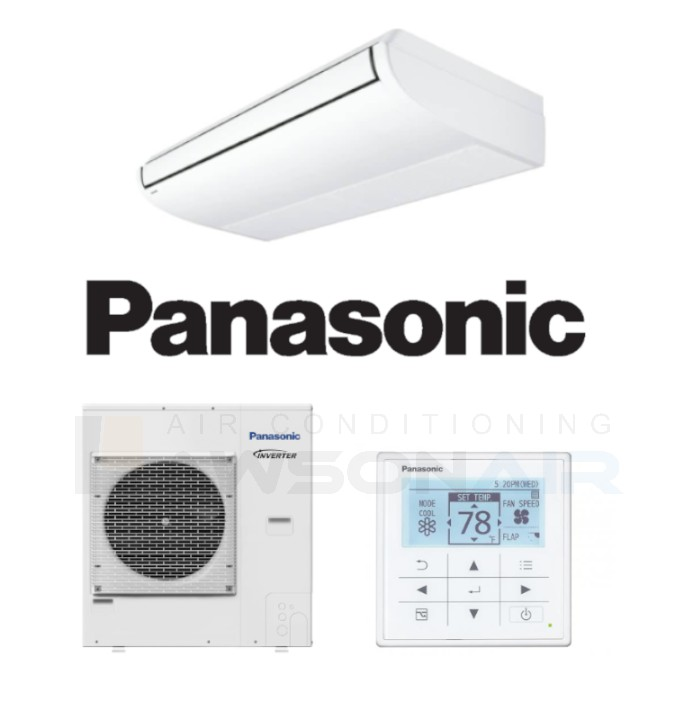

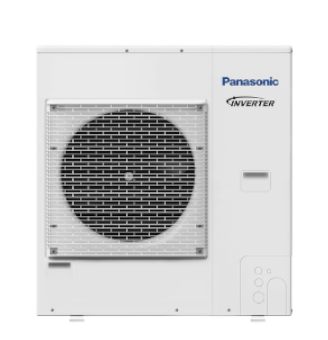

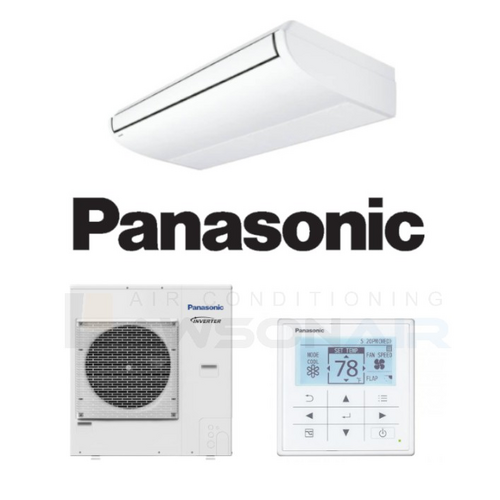

Panasonic S-140PT2E5B 14.0kW Under Ceiling System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-140PZ2R5

Providing outstanding energy-saving performance, comfort and long-distance airflow distribution, these units are perfect for retail stores and schools.


  • Compact looking, stylish, one-motion design
  • Energy-saving technology delivering top-class efficiency
  • Comfortable, long-distance airflow distribution


Rated Capacity Cool (kW) 13.6
Heat (kW) 14.0
Capacity Range Cool (kW) (3.3 - 15.0)
Heat (kW) (3.4 - 16.0)
Power Input (Rated) Cool (kW) 4.32
Heat (kW) 3.78
E.E.R./C.O.P. Cool/Heat 3.15/3.70
Air Flow Rate (Rated) I/S 583
Indoor Sound Level (H/M/L) dBA 65/59/55
Piping Length (m) 5 - 50
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 235 x 1590 x 690
Outdoor (mm) 996 x 980 x 370
Weight Indoor(kg) 40
Outdoor(kg) 94
Power Supply V/Hz 1 Phase, 240V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
Gas (mm) Ø15.88
Drain (mm) VP-25
Supply Air Opening mm (HxW, Flange) TBA
Return Air Opening mm (Oval) TBA
Outdoor Operating Range Cool (°CDB) - 10 to 43
Heat (°CWB) - 15 to 24
Sound Power Level  dBA (C/H) 71/71
Outdoor Sound Level  Pressure dBA (C/H) 56/56
Brand Panasonic
Shipping Weight 130.0000kg
