Panasonic S-140PF1E5B 14.0kW Slimline 1 Phase Ducted System

S-140PF1E5B/U-140PZ2R8 Ducted System Air Conditioner




$5,255.00 Incl GST
$4,777.27 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

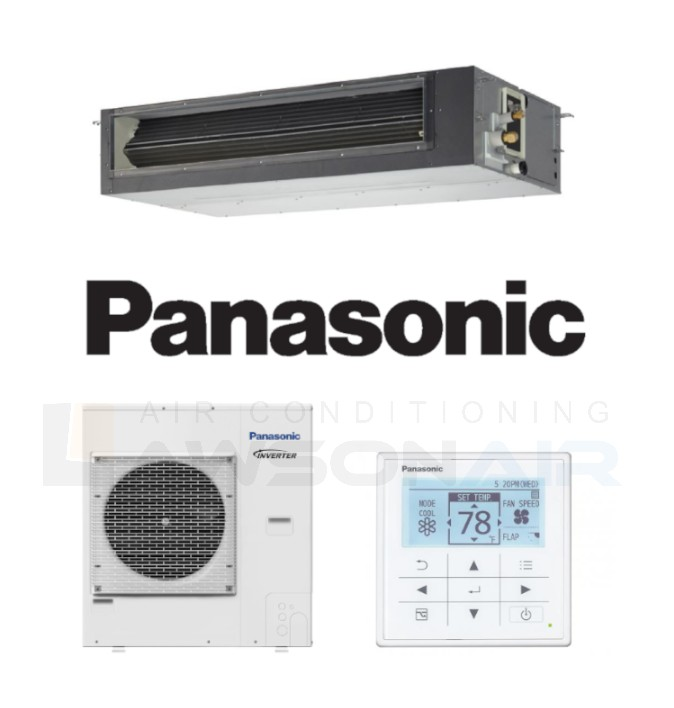

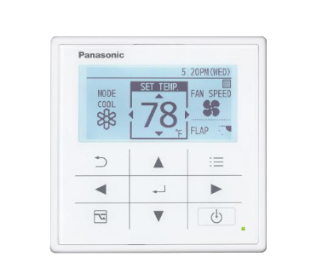

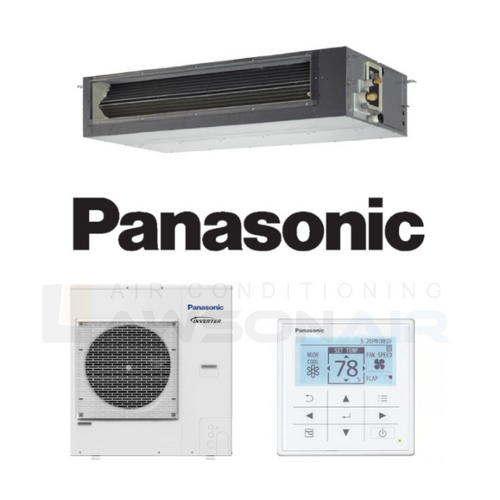

Panasonic S-140PF1E5B 14.0kW Slimline 3 Phase Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-140PZ2R8

Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.

Features:

  • Variable external static pressure control
  • System example
  • More powerful drain pump

(S-140PF1E5B-3P)

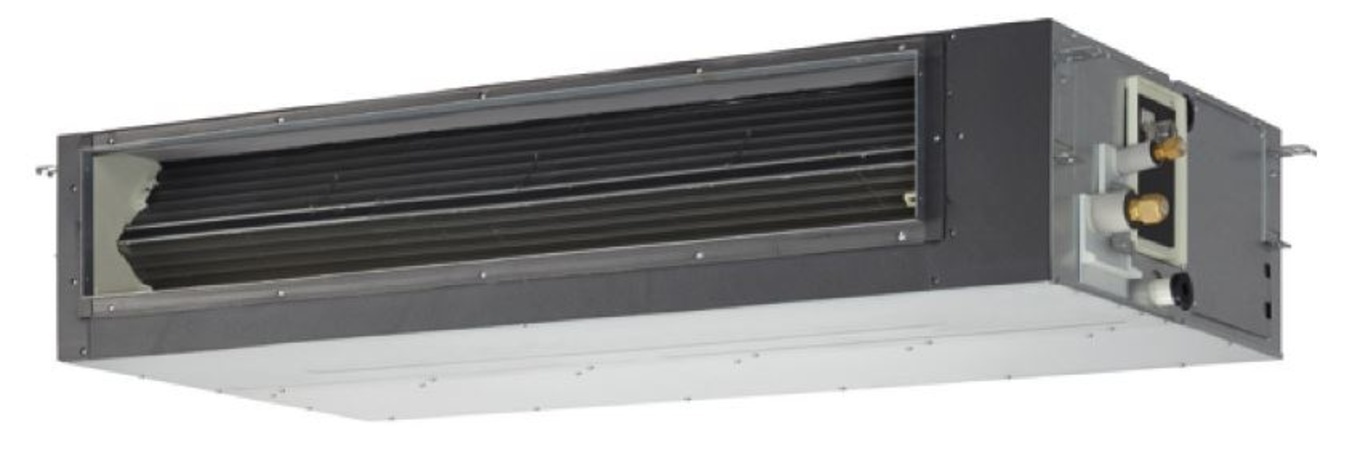

INDOOR UNIT S-140PF1E5B

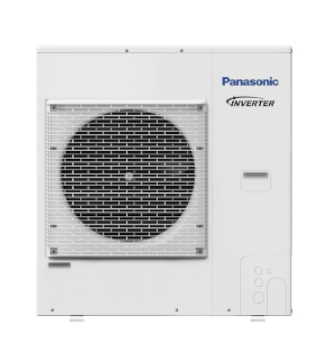

OUTDOOR UNIT U-140PZ2R8
Rated Capacity Cool (kW) 14.0
Heat (kW) 14.0
Capacity Range Cool (kW) (3.3 - 15.0)
Heat (kW) (3.4 - 16.0)
Power Input (Rated) Cool (kW) 4.40
Heat (kW) 3.69
E.E.R./C.O.P. Cool/Heat 3.18/3.79
Air Flow Rate (Rated) I/S 600
Indoor Sound Level (H/M/L) dBA 62/58/55
Piping Length (m) 5 - 50
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 290 x 1400 x 700
Outdoor (mm) 996 x 980 x 370
Weight Indoor(kg) 45
Outdoor(kg) 94
Power Supply V/Hz 3 Phase, 415V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
Gas (mm) Ø15.88
Drain (mm) VP-25
Supply Air Opening mm (HxW, Flange) TBA
Return Air Opening mm (Oval) TBA
Outdoor Operating Range Cool (°CDB) - 10 to 43
Heat (°CWB) - 15 to 24
Sound Power Level  dBA (C/H) 71/71
Outdoor Sound Level  Pressure dBA (C/H) 56/56
SKU S-140PF1E5B-3P
Brand Panasonic
Shipping Weight 139.0000kg
Shipping Cubic 0.645350000m3

Be The First To Review This Product!

Help other Lawson Air Conditioning users shop smarter by writing reviews for products you have purchased.

Write a product review

Product Enquiry Form Complete this form to email us your enquiry.

S-140PF1E5B-3P
