Panasonic S-125PU2E5B 12.5 kW Wired Three Phase Cassette System
S-125PU2E5B/U-125PZ2R8 Cassette System
$5,173.00 Incl GST
$4,702.73 Excl GST
Sold Out
$4,702.73 Excl GST
.jpg)

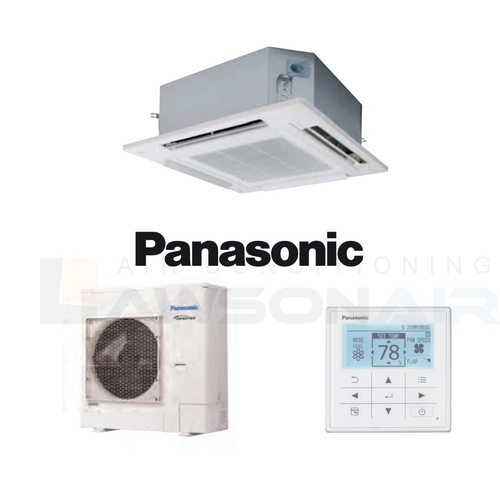

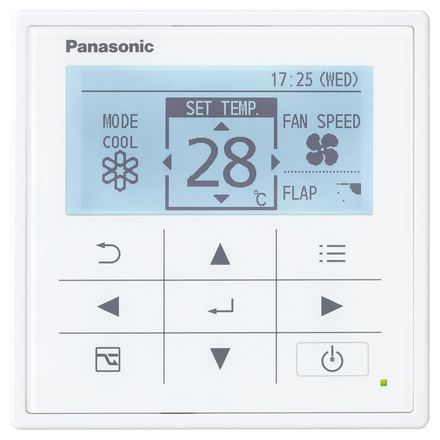

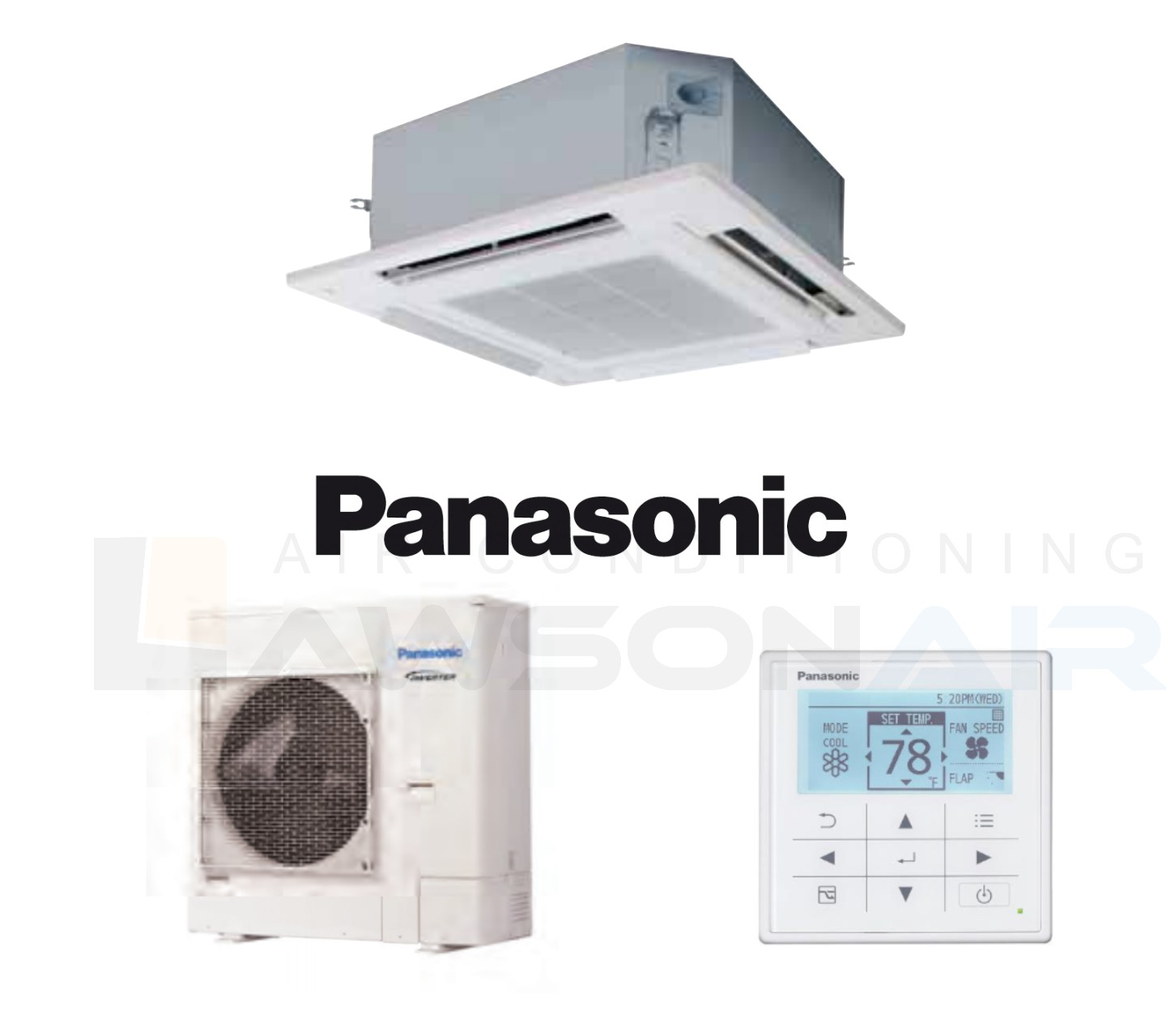

Panasonic S-125PU2E5B 12.5 kW Three Phase Cassette System - Includes Wired Controller & Outdoor Unit U-125PZ2R8
Thanks to advances in design and technology such as the high performance turbo fan, more efficient and silent, the nanoe™ X air cleaner, the U2 Panasonic 4 way 90x90 cassette offers high energy saving, fresh air and comfort.
Features:
- High performance turbo fan, path system for heat exchanger
- Light weight, easy piping
- Easy installation structure of the panel
- Lower noise in slow fan operation
(S-125PU2E5B-3P)
| Indoor Unit | S-125PU2E5B | |
| Outdoor Unit | U-125PZ2R8 | |
| Function | Cooling + Heating | |
| Cooling Capacity Rated Conditions | kW | 12.5 |
| Cooling Capacity Range - Min ~ Max | kW | 3.30 ~ 14.00 |
| EER | w/w | 3.70 |
| Heating Capacity Rated Conditions | kW | 14.0 |
| Heating Capacity Range - Min ~ Max | kW | 4.10~ 16.00 |
| COP | w/w | 4.60 |
| Sound Pressure Indoor - Cool - Hi / Med / Lo | dB(A) | 46 / 39 / 33 |
| Sound Pressure Outdoor - Cool / Heat | dB(A) | 53 / 53 |
| Air Flow - Cool / Heat | L/s | 2166 / 1833 |
| Indoor Dimensions - H x W x D | mm | 319 x 840 x 840 |
| Outdoor Dimensions - H x W x D | mm | 1416 x 940 x 340 |
| Panel Dimensions - H x W x D | mm | 33.5 x 950 x 950 |
| Weight - Indoor | kg | 25 |
| Weight - Outdoor | kg | 98 |
| Weight - Panel | kg | 5 |
| Refrigerant Pipe Diameter - Liquid Side / Gas Side | mm | Ø9.52 / Ø15.88 |
| Piping Length Range Min ~ Max | m | 5 ~75 |
| Pipe Length for Additional Gas | m | 30 |
| Operating Temperature Range - Outdoor - Cooling | °C | -15 ~ 46 |
| Operating Temperature Range - Outdoor - Heating | °C | -20 ~ 24 |
| SKU | S-125PU2E5B-3P |
| Brand | Panasonic |
| Shipping Weight | 128.0000kg |
