Panasonic S-125PU2E5B 12.5 kW Wired Single Phase Cassette System
S-125PU2E5B/U-125PZ2R5 Cassette System
$5,173.00 Incl GST
$4,702.73 Excl GST
Sold Out
$4,702.73 Excl GST

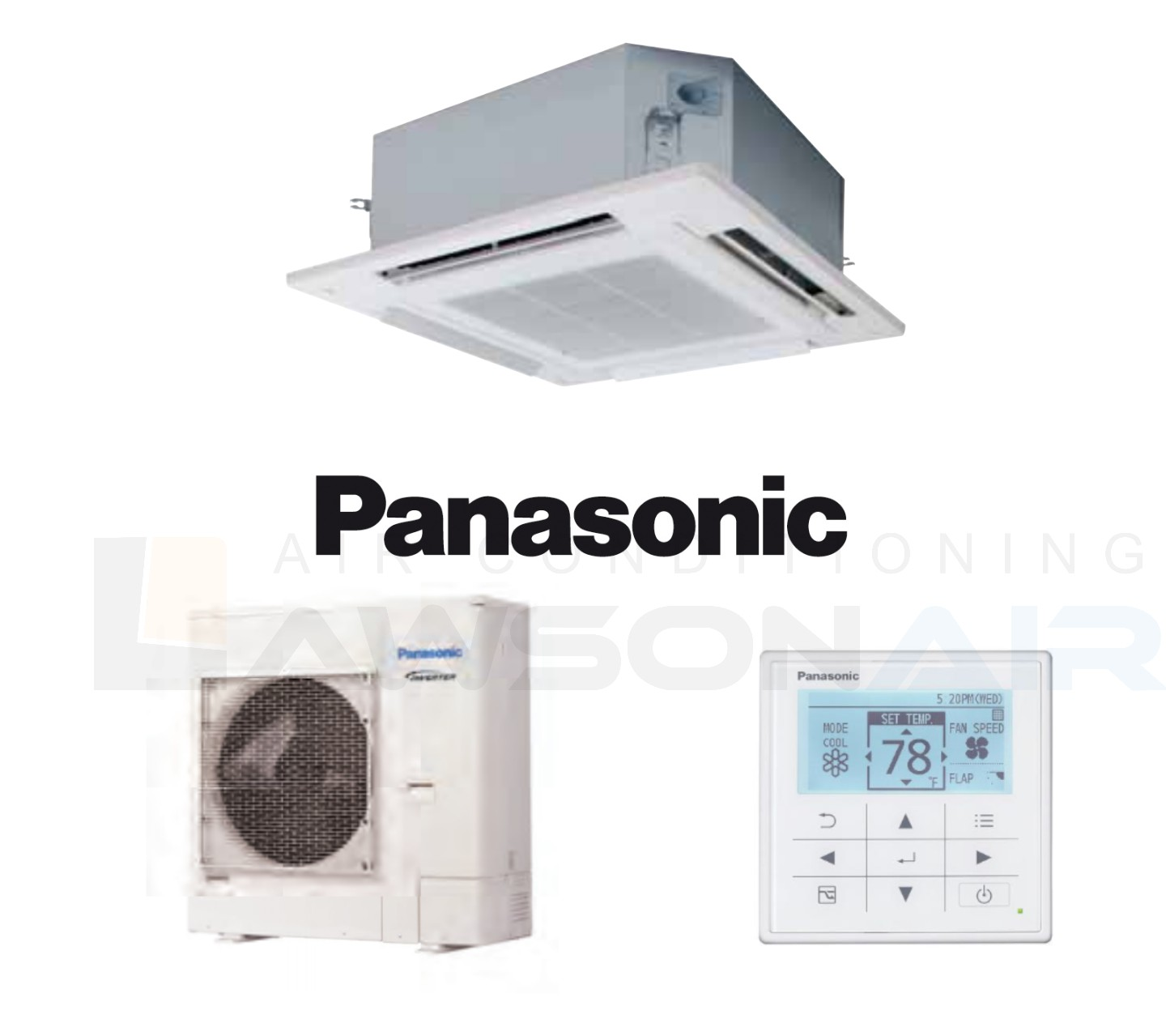

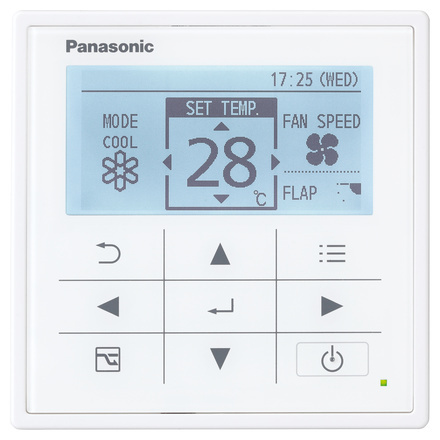

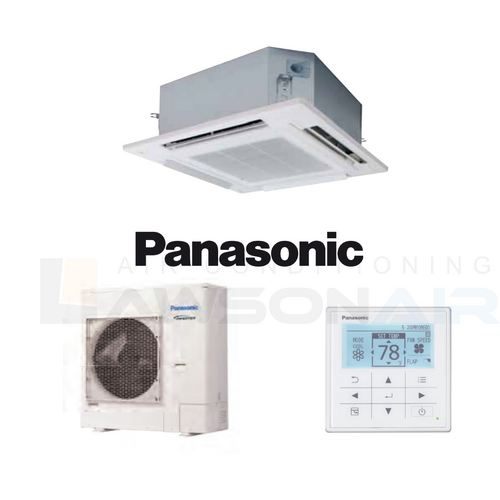

Panasonic S-125PU2E5B 12.5 kW Single Phase Cassette System - Includes Wired Controller & Outdoor Unit U-125PZ2R5
Thanks to advances in design and technology such as the high performance turbo fan, more efficient and silent, the nanoe™ X air cleaner, the U2 Panasonic 4 way 90x90 cassette offers high energy saving, fresh air and comfort.
Features:
- High performance turbo fan, path system for heat exchanger
- Light weight, easy piping
- Easy installation structure of the panel
- Lower noise in slow fan operation
(S-125PU2E5B)

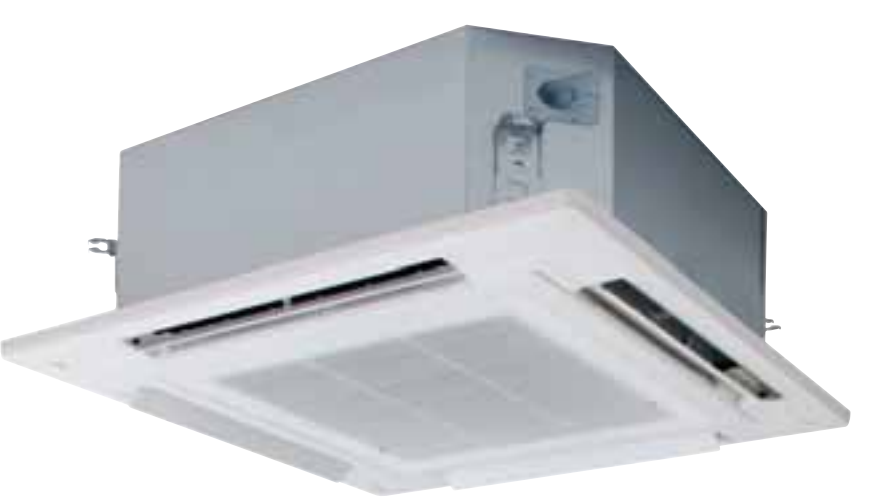

Indoor Unit | S-125PU2E5B | |
Outdoor Unit | U-125PZ2R5 | |
Function | Cooling + Heating | |
Cooling Capacity Rated Conditions | kW | 12.5 |
Cooling Capacity Range - Min ~ Max | kW | 3.30 ~ 14.00 |
EER | w/w | 3.70 |
Heating Capacity Rated Conditions | kW | 14.0 |
Heating Capacity Range - Min ~ Max | kW | 4.10~ 16.00 |
COP | w/w | 4.60 |
Sound Pressure Indoor - Cool - Hi / Med / Lo | dB(A) | 46 / 39 / 33 |
Sound Pressure Outdoor - Cool / Heat | dB(A) | 53 / 53 |
Air Flow - Cool / Heat | L/s | 2166 / 1833 |
Indoor Dimensions - H x W x D | mm | 319 x 840 x 840 |
Outdoor Dimensions - H x W x D | mm | 1416 x 940 x 340 |
Panel Dimensions - H x W x D | mm | 33.5 x 950 x 950 |
Weight - Indoor | kg | 25 |
Weight - Outdoor | kg | 98 |
Weight - Panel | kg | 5 |
Refrigerant Pipe Diameter - Liquid Side / Gas Side | mm | Ø9.52 / Ø15.88 |
Piping Length Range Min ~ Max | m | 5 ~75 |
Pipe Length for Additional Gas | m | 30 |
Operating Temperature Range - Outdoor - Cooling | °C | -15 ~ 46 |
Operating Temperature Range - Outdoor - Heating | °C | -20 ~ 24 |
SKU | S-125PU2E5B |
Brand | Panasonic |
Shipping Weight | 128.0000kg |
