Panasonic S-125PT2E5B 12.5kW 1 Phase Under Ceiling System
S-125PT2E5B/U-125PZ2R5 Under Ceiling Air Conditioner
$5,529.00 Incl GST
$5,026.36 Excl GST
Sold Out
$5,026.36 Excl GST
.jpg)

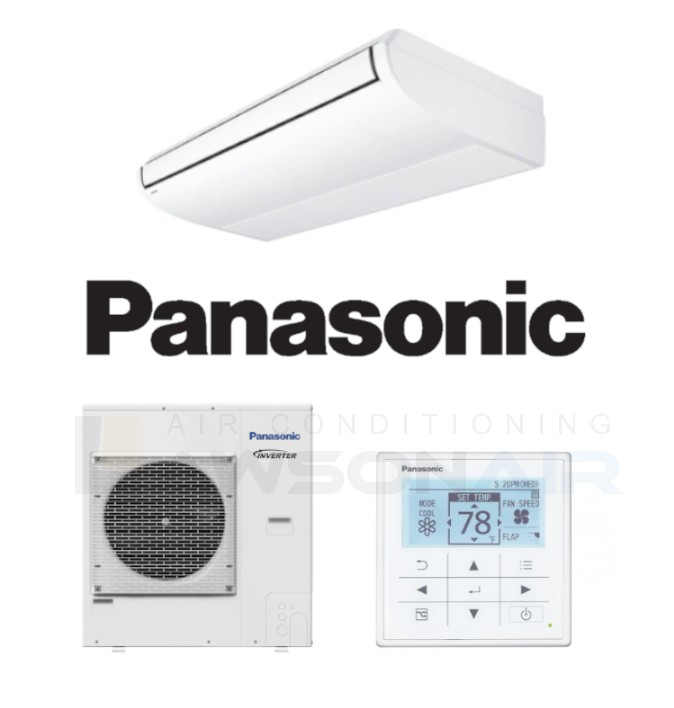

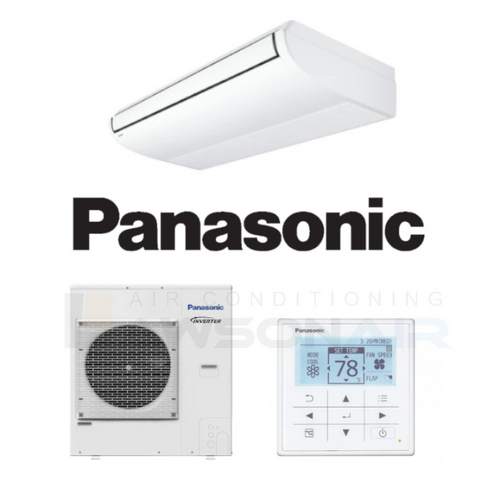

Panasonic S-125PT2E5B 12.5kW Under Ceiling System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-125PZ2R5
Providing outstanding energy-saving performance, comfort and long-distance airflow distribution, these units are perfect for retail stores and schools.
Features:
- Compact looking, stylish, one-motion design
- Energy-saving technology delivering top-class efficiency
- Comfortable, long-distance airflow distribution

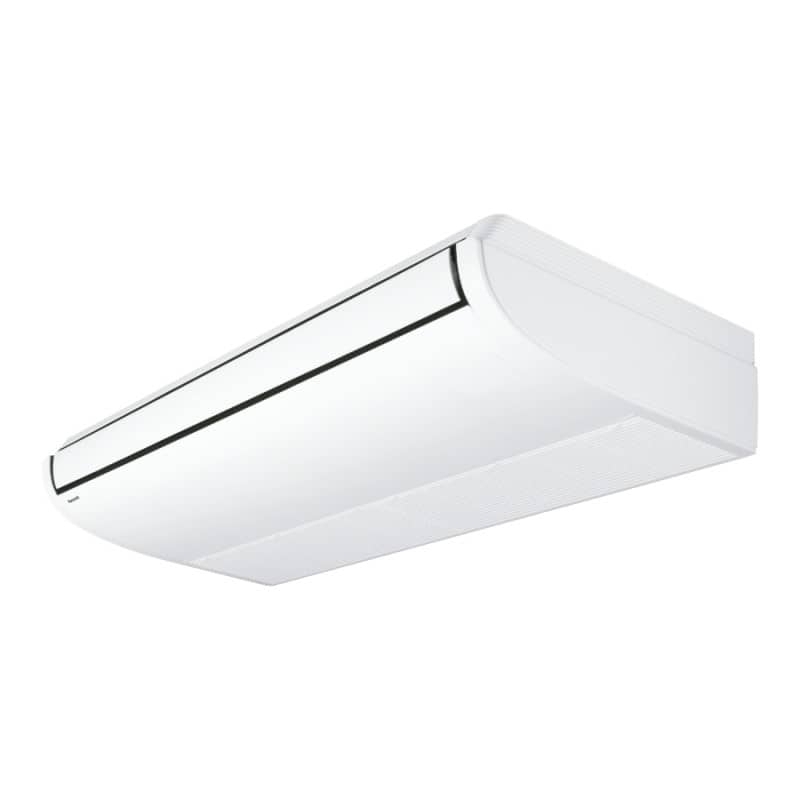

(S-125PT2E5B)
| INDOOR UNIT | S-125PT2E5B | |

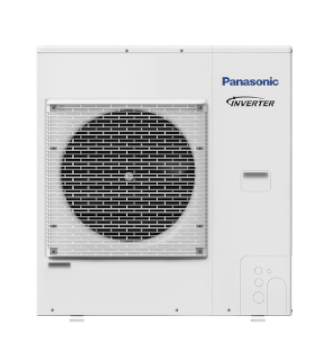

| OUTDOOR UNIT | U-125PZ2R5 | |
| Rated Capacity | Cool (kW) | 12.5 |
| Heat (kW) | 12.5 | |
| Capacity Range | Cool (kW) | (3.2 - 13.5) |
| Heat (kW) | (3.3 - 15.0) | |
| Power Input (Rated) | Cool (kW) | 3.76 |
| Heat (kW) | 3.21 | |
| E.E.R./C.O.P. | Cool/Heat | 3.32/3.89 |
| Air Flow Rate (Rated) | I/S | 566 |
| Indoor Sound Level (H/M/L) | dBA | 64/58/54 |
| Piping Length | (m) | 5 - 50 |
| Indoor Fan Speeds (No.) | 3 | |
| Dimensions (HxWxD) | Indoor (mm) | 235 x 1590 x 690 |
| Outdoor (mm) | 996 x 980 x 370 | |
| Weight | Indoor(kg) | 40 |
| Outdoor(kg) | 94 | |
| Power Supply | V/Hz | 1 Phase, 240V, 50Hz |
| Compressor Type | TBA | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | Ø9.52 |
| Gas (mm) | Ø15.88 | |
| Drain (mm) | VP-25 | |
| Supply Air Opening | mm (HxW, Flange) | TBA |
| Return Air Opening | mm (Oval) | TBA |
| Outdoor Operating Range | Cool (°CDB) | - 10 to 43 |
| Heat (°CWB) | - 15 to 24 | |
| Sound Power Level | dBA (C/H) | 70/70 |
| Outdoor Sound Level | Pressure dBA (C/H) | 55/55 |
| SKU | S-125PT2E5B |
| Brand | Panasonic |
| Shipping Weight | 130.0000kg |
