Panasonic S-125PF1E5B 12.5kW Slimline 1 Phase Ducted System
S-125PF1E5B/U-125PZ2R5 Ducted System Air Conditioner
$4,690.00 Incl GST
$4,263.64 Excl GST
Sold Out
$4,263.64 Excl GST

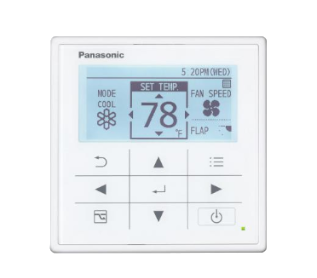

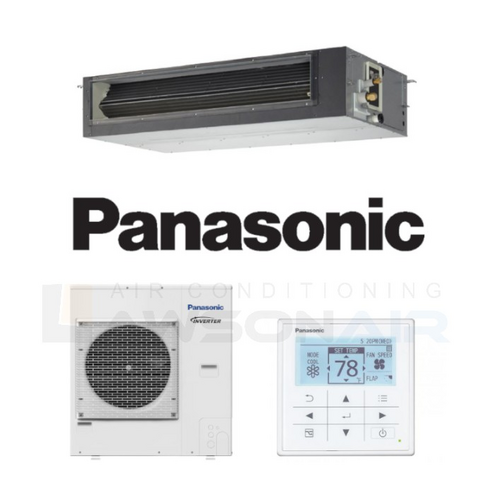

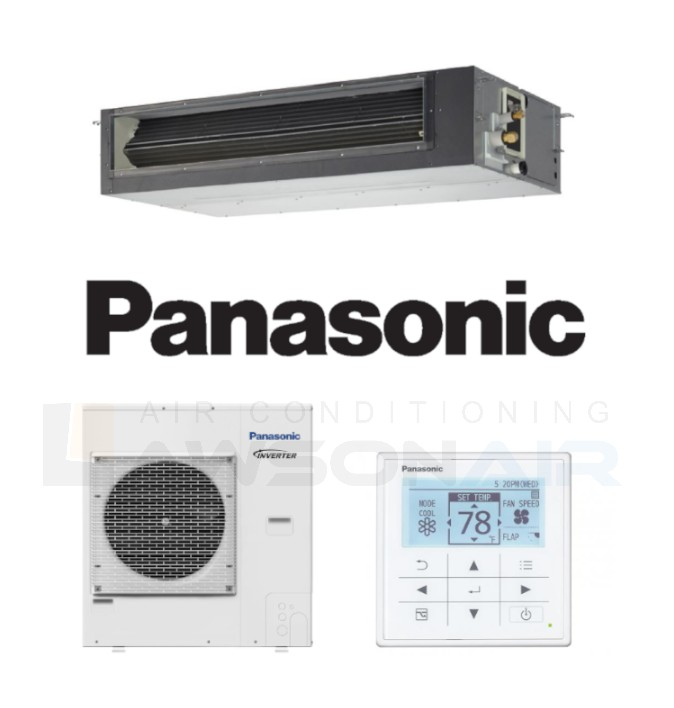

Panasonic S-125PF1E5B 12.5kW Slimline Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-125PZ2R5
Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.
Features:
- Variable external static pressure control
- System example
- More powerful drain pump
(S-125PF1E5B)

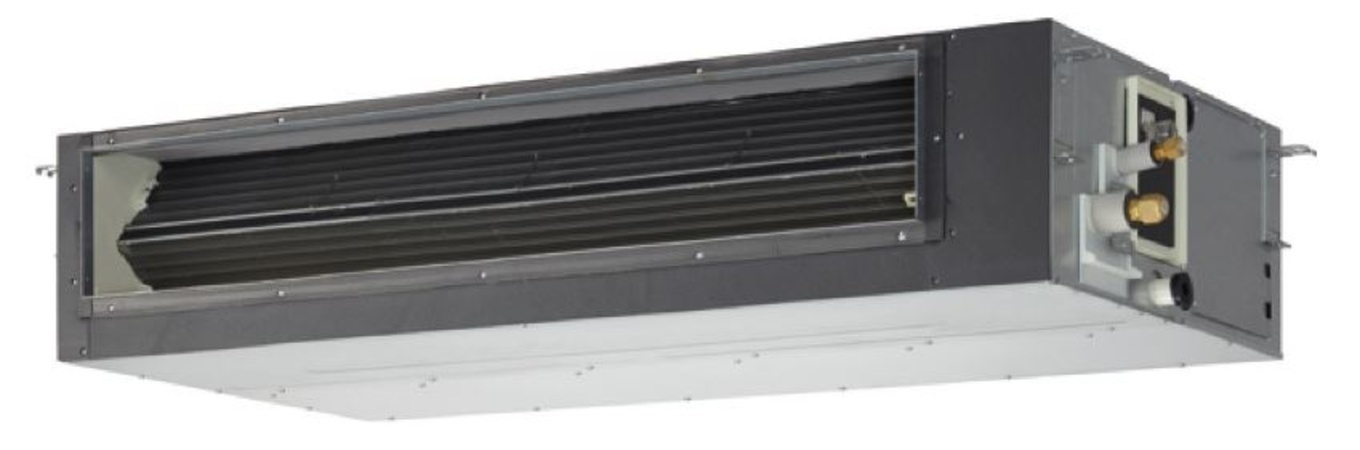

INDOOR UNIT | S-125PF1E5B | |

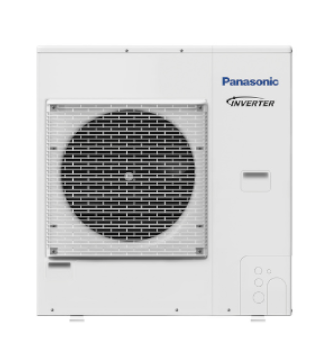

OUTDOOR UNIT | U-125PZ2R5 | |
Rated Capacity | Cool (kW) | 12.5 |
Heat (kW) | 12.5 | |
Capacity Range | Cool (kW) | (3.2 - 13.5) |
Heat (kW) | (3.3 - 15.0) | |
Power Input (Rated) | Cool (kW) | 3.55 |
Heat (kW) | 3.11 | |
E.E.R./C.O.P. | Cool/Heat | 3.52/4.02 |
Air Flow Rate (Rated) | I/S | 566 |
Indoor Sound Level (H/M/L) | dBA | 61/57/54 |
Piping Length | (m) | 3 - 40 |
Indoor Fan Speeds (No.) | 3 | |
Dimensions (HxWxD) | Indoor (mm) | 290 x 1400 x 700 |
Outdoor (mm) | 996 x 980 x 370 | |
Weight | Indoor(kg) | 45 |
Outdoor(kg) | 94 | |
Power Supply | V/Hz | 1 Phase, 240V, 50Hz |
Compressor Type | TBA | |
Refrigerant | R32 | |
Pipe Sizes | Liquid (mm) | Ø9.52 |
Gas (mm) | Ø15.88 | |
Drain (mm) | VP-25 | |
Supply Air Opening | mm (HxW, Flange) | TBA |
Return Air Opening | mm (Oval) | TBA |
Outdoor Operating Range | Cool (°CDB) | - 10 to 43 |
Heat (°CWB) | - 15 to 24 | |
Sound Power Level | dBA (C/H) | 70/70 |
Outdoor Sound Level | Pressure dBA (C/H) | 55/55 |
SKU | S-125PF1E5B |
Brand | Panasonic |
Shipping Weight | 139.0000kg |
