Panasonic S-125PF1E5B 12.5kW Slimline 3 Phase 3 Phase Ducted System

S-125PF1E5B/U-125PZ2R8 Ducted System Air Conditioner




$4,690.00 Incl GST
$4,263.64 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

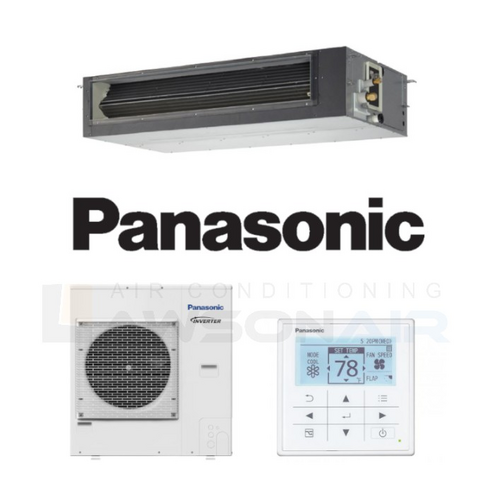

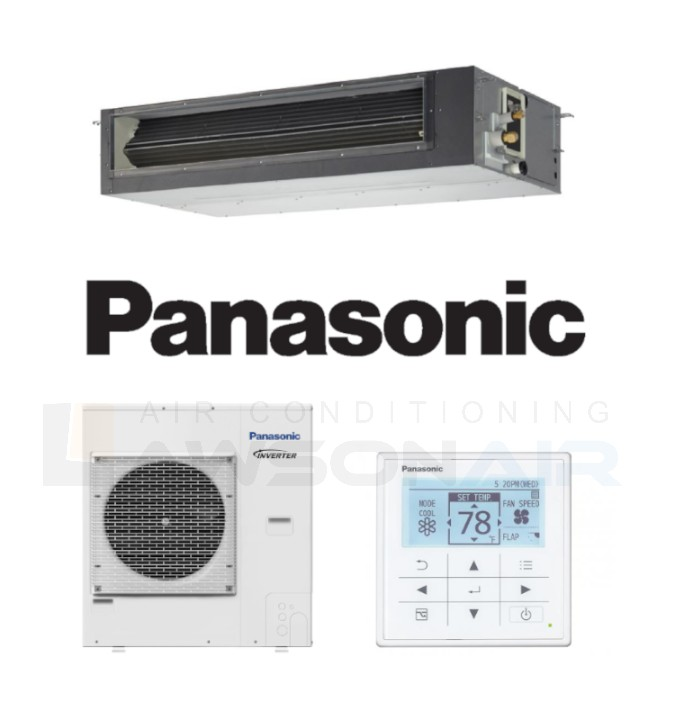

Panasonic S-125PF1E5B 12.5kW Slimline 3 Phase Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-125PZ2R8

Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.

Features:

  • Variable external static pressure control
  • System example
  • More powerful drain pump

(S-125PF1E5B-3P)

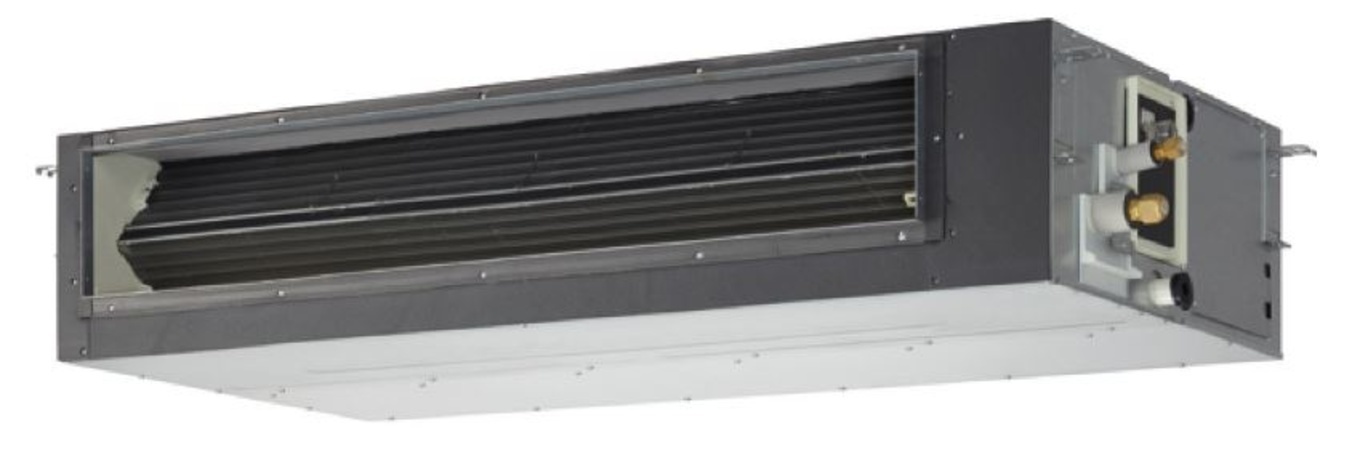

INDOOR UNIT S-125PF1E5B

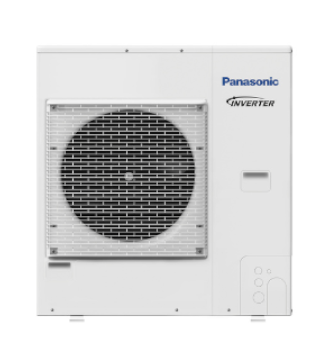

OUTDOOR UNIT U-125PZ2R8
Rated Capacity Cool (kW) 12.5
Heat (kW) 12.5
Capacity Range Cool (kW) (3.2 - 13.5)
Heat (kW) (3.3 - 15.0)
Power Input (Rated) Cool (kW) 3.55
Heat (kW) 3.11
E.E.R./C.O.P. Cool/Heat 3.52/4.02
Air Flow Rate (Rated) I/S 566
Indoor Sound Level (H/M/L) dBA 61/57/54
Piping Length (m) 3 - 40
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 290 x 1400 x 700
Outdoor (mm) 996 x 980 x 370
Weight Indoor(kg) 45
Outdoor(kg) 94
Power Supply V/Hz 3 Phase, 415V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
Gas (mm) Ø15.88
Drain (mm) VP-25
Supply Air Opening mm (HxW, Flange) TBA
Return Air Opening mm (Oval) TBA
Outdoor Operating Range Cool (°CDB) - 10 to 43
Heat (°CWB) - 15 to 24
Sound Power Level  dBA (C/H) 70/70
Outdoor Sound Level  Pressure dBA (C/H) 55/55
SKU S-125PF1E5B-3P
Brand Panasonic
Shipping Weight 139.0000kg
Shipping Cubic 0.645350000m3
