Panasonic S-100PU2E5B 10.0 kW Wired Single Phase Cassette System

S-100PU2E5B/U-100PZ2R5 Cassette System




$4,748.00 Incl GST
$4,316.36 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

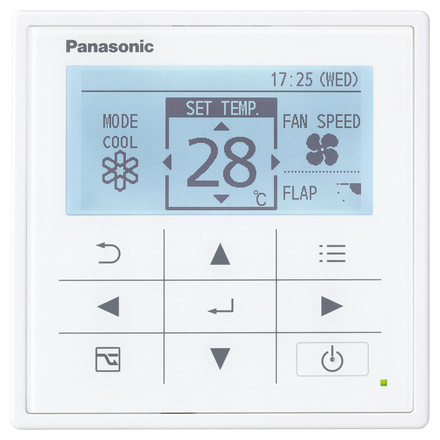

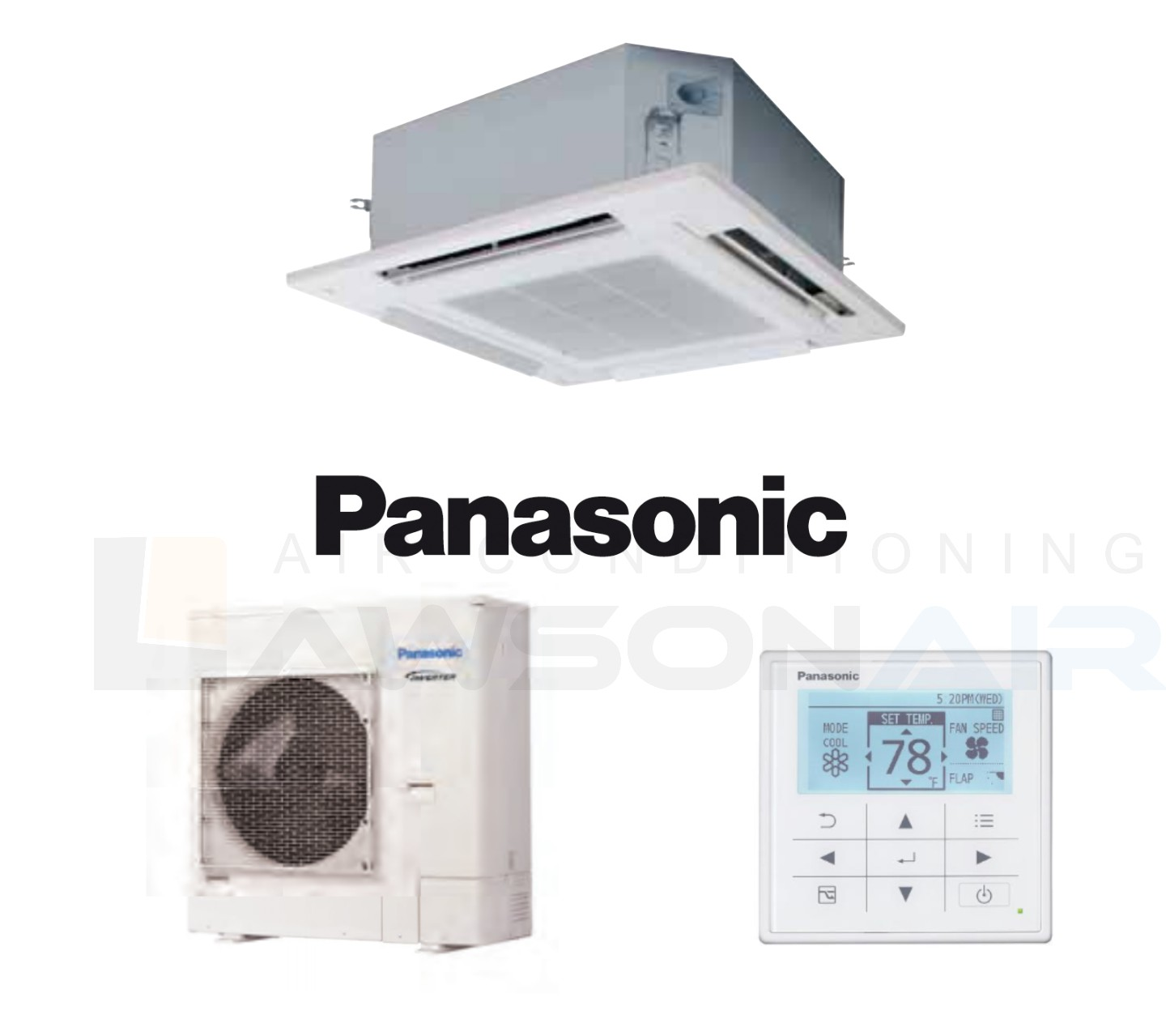

Panasonic S-100PU2E5B 10.0 kW Single Phase Cassette System - Includes Wired Controller & Outdoor Unit U-100PZ2R5

Thanks to advances in design and technology such as the high performance turbo fan, more efficient and silent, the nanoe™ X air cleaner, the U2 Panasonic 4 way 90x90 cassette offers high energy saving, fresh air and comfort.



Features:

  • High performance turbo fan, path system for heat exchanger
  • Light weight, easy piping
  • Easy installation structure of the panel
  • Lower noise in slow fan operation

(S-100PU2E5B)

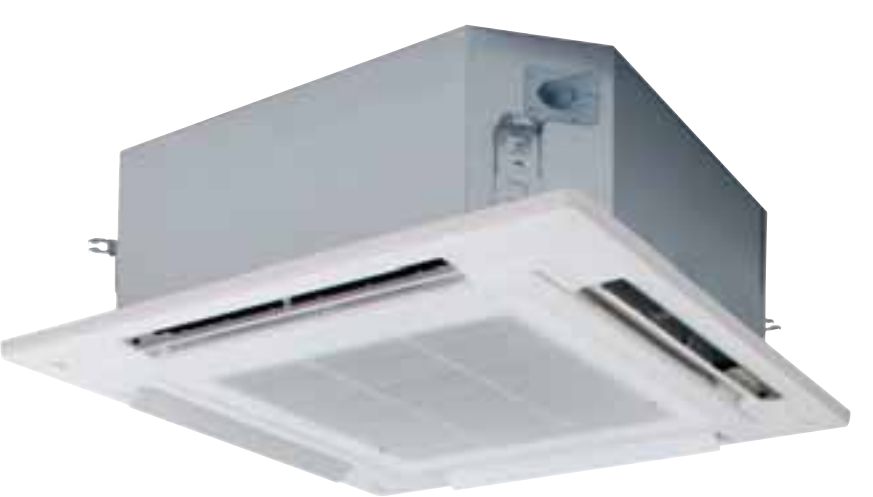

Indoor Unit S-100PU2E5B

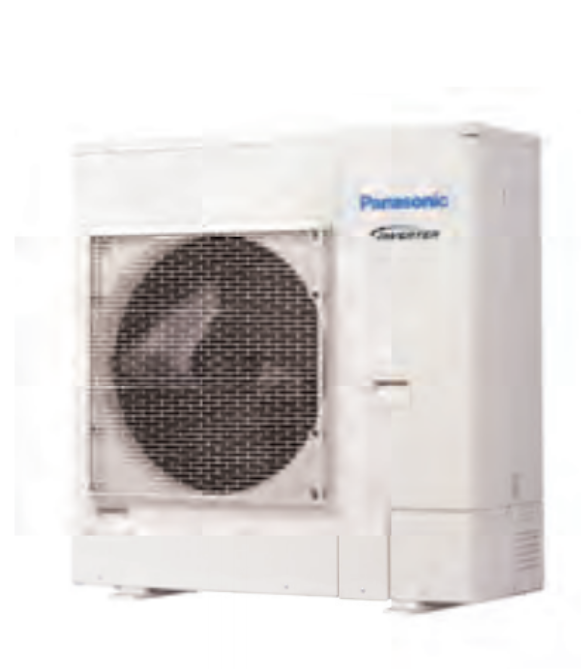

Outdoor Unit U-100PZ2R5
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 10.0
Cooling Capacity Range - Min ~ Max kW 3.03 ~ 12.50
EER w/w 4.27
Heating Capacity Rated Conditions kW 11.2
Heating Capacity Range - Min ~ Max kW 4.10 ~ 14.00
COP w/w 5.00
Sound Pressure Indoor - Cool - Hi / Med / Lo dB(A) 45 / 38 / 32
Sound Pressure Outdoor - Cool / Heat  dB(A) 52 / 52
Air Flow - Cool / Heat L/s 1833 / 1583
Indoor Dimensions - H x W x D mm 319  x 840 x 840
Outdoor Dimensions - H x W x D mm 1416 x 940 x 340
Panel Dimensions - H x W x D mm 33.5 x 950 x 950
Weight - Indoor kg 25
Weight - Outdoor kg 98
Weight - Panel kg 5
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm Ø9.52 / Ø15.88
Piping Length Range Min ~ Max m 5 ~75
Pipe Length for Additional Gas m 30
Operating Temperature Range - Outdoor - Cooling °C -15 ~ 46
Operating Temperature Range - Outdoor - Heating °C -20 ~ 24
SKU S-100PU2E5B
Brand Panasonic
Shipping Weight 128.0000kg
Shipping Cubic 0.708325000m3
