Panasonic CSCU-Z50UB4RAW 5.0 kW 4-Way Mini-Cassette System
CS-Z50UB4RAW/CU-Z50UBRA Mini-Cassette Air Conditioner
$1,150.00 Incl GST
$1,045.45 Excl GST
Sold Out
$1,045.45 Excl GST
.jpg)

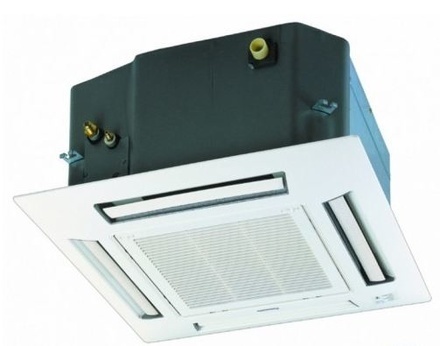

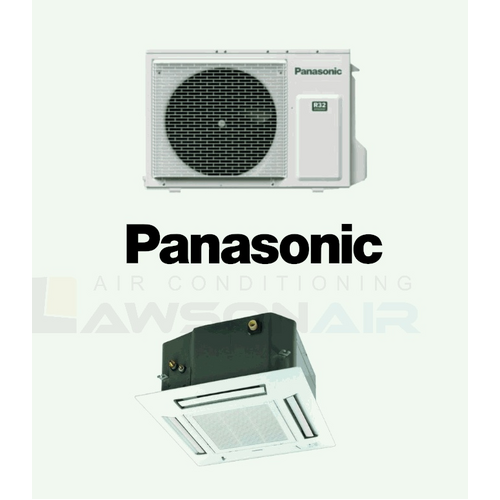

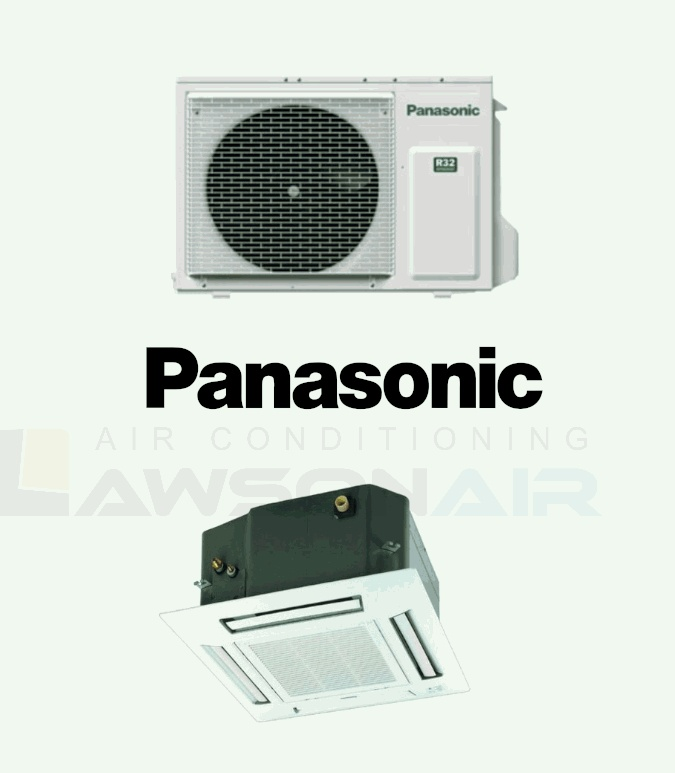

Panasonic CSCU-Z50UB4RAW 5.0 kW 4-Way Mini-Cassette System - Includes Outdoor Unit CU-Z50UBRA
Product line-up suitable for light to medium commercial and residential applications.
Features:

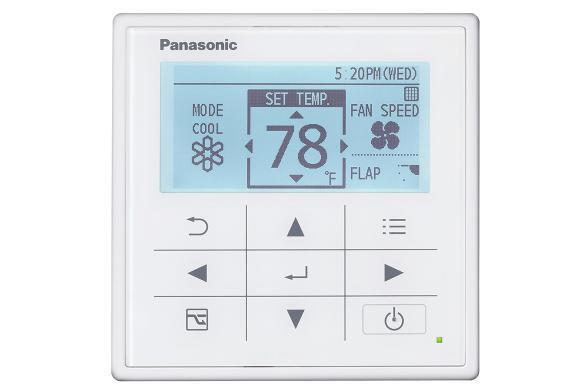

- WLAN Control Possible
- Market-leading Energy Efficiency
- Compact Design (260mm High)
- Built-in drain pump
(CSCU-Z50UB4RAW)
| Indoor Unit | CS-Z50UB4RAW | |

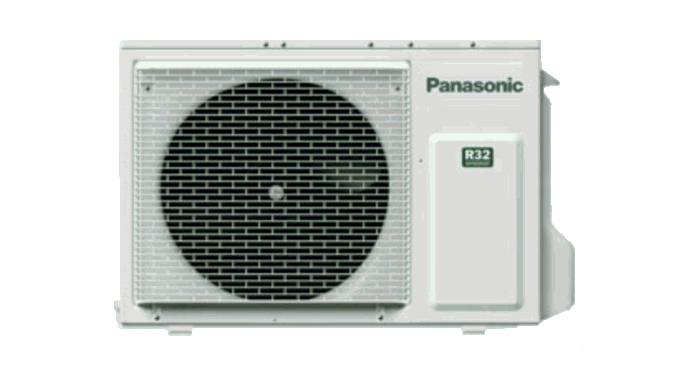

| Outdoor Unit | CU-Z50UBRA | |
| Function | Cooling + Heating | |
| Cooling Capacity Rated Conditions | kW | 4.8 |
| Cooling Capacity Range - Min ~ Max | kW | 0.90 ~ 7.10 |
| EER | w/w | 3.38 |
| Heating Capacity Rated Conditions | kW | 5.00 |
| Heating Capacity Range - Min ~ Max | kW | 0.90 ~ 7.10 |
| COP | w/w | 3.38 |
| Sound Pressure Indoor - Cool - Hi / Med / Lo | dB(A) | 38 / 28 / 25 |
| Sound Pressure Indoor - Heat - Hi / Med / Lo | dB(A) | 39 / 29 / 26 |
| Sound Power Outdoor - Cool - Hi / Med / Lo | dB(A) | 54 / 44 / 41 |
| Sound Power Outdoor - Heat - Hi / Med / Lo | dB(A) | 55 / 45 / 42 |
| Air Flow - Cool / Heat | L/s | 192 / 197 |
| Indoor Dimensions - H x W x D | mm | 260 x 575 x 575 |
| Outdoor Dimensions - H x W x D | mm | 695 x 875 x 320 |
| Weight - Indoor | kg | 18 |
| Weight - Outdoor | kg | 42 |
| Refrigerant Pipe Diameter - Liquid Side / Gas Side | mm | Ø6.35 / Ø12.70 |
| Piping Extension Length Min ~ Max | m | 3 ~ 30 |
| Elevation Difference | m | 20 |
| Operating Temperature Range - Outdoor - Cooling | °C | -10 ~ 46 |
| Operating Temperature Range - Outdoor - Heating | °C | -15 ~ 24 |
| SKU | CSCU-Z50UB4RAW |
| Brand | Panasonic |
| Shipping Weight | 60.0000kg |
