Panasonic CSCU-Z35UB4RAW 3.5 kW 4-Way Mini-Cassette System

CS-Z35UB4RAW/CU-Z35UBRA Mini-Cassette Air Conditioner




$995.00 Incl GST
$904.55 Excl GST
Sold Out

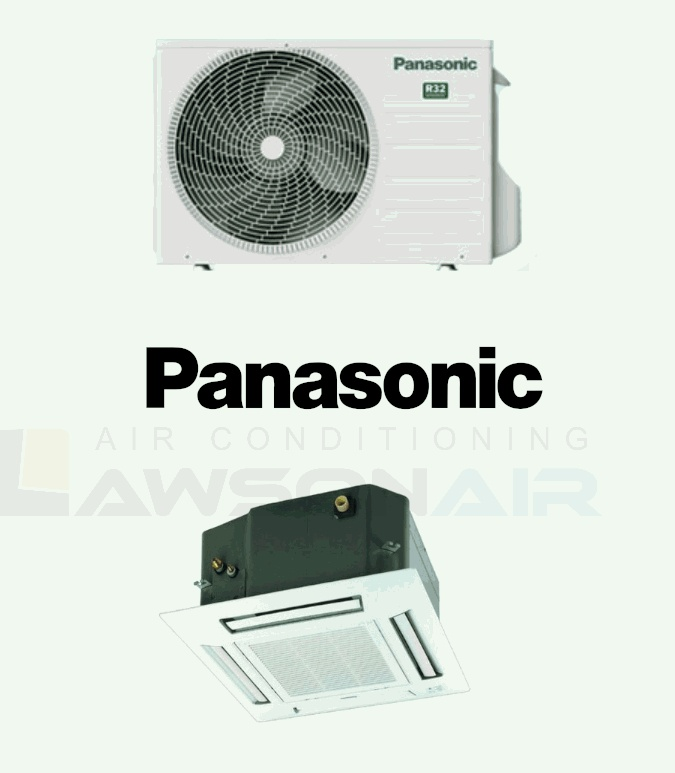

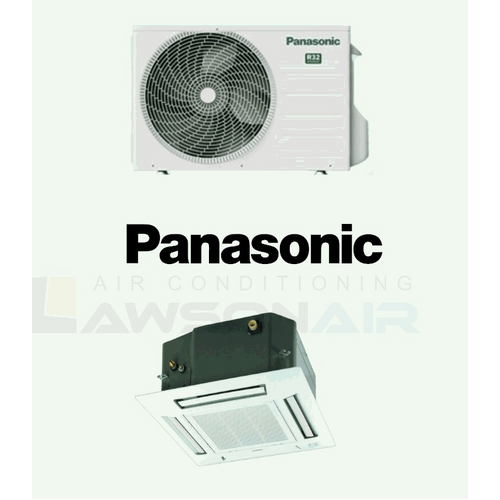

Panasonic CSCU-Z35UB4RAW 3.5 kW 4-Way Mini-Cassette System - Includes Outdoor Unit CU-Z35UBRA

Product line-up suitable for light to medium commercial and residential applications.

Features:

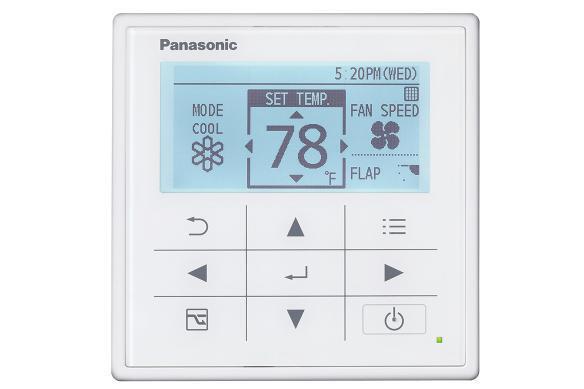

  • WLAN Control Possible
  • Market-leading Energy Efficiency
  • Compact Design (260mm High)
  • Built-in drain pump

(CSCU-Z35UB4RAW)

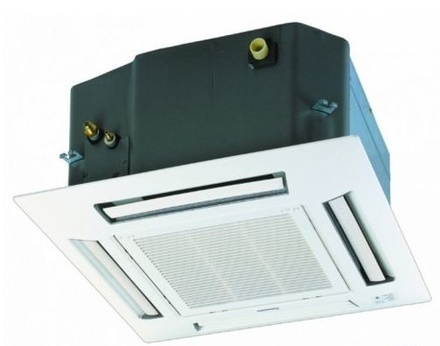

Indoor Unit CS-Z35UB4RAW

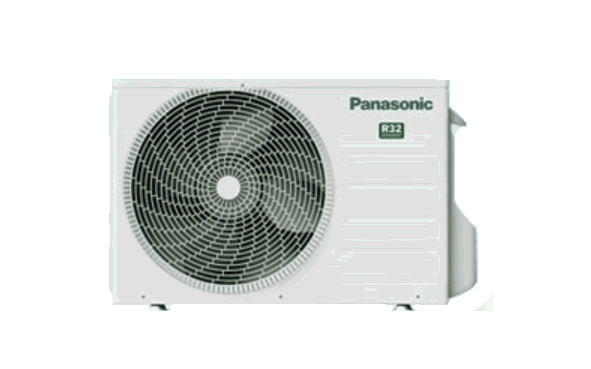

Outdoor Unit CU-Z35UBRA
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 3.5
Cooling Capacity Range - Min ~ Max kW 0.85 ~ 4.00
EER w/w 3.89
Heating Capacity Rated Conditions kW 4.00
Heating Capacity Range - Min ~ Max kW 0.85 ~ 5.40
COP w/w 3.92
Sound Pressure Indoor - Cool - Hi / Med / Lo dB(A) 34 / 26 / 23
Sound Pressure Indoor - Heat - Hi / Med / Lo dB(A) 37 / 28 / 25
Sound Power Outdoor - Cool - Hi / Med / Lo dB(A) 50 / 42 / 39
Sound Power Outdoor - Heat - Hi / Med / Lo dB(A) 53 / 44 / 41
Air Flow - Cool / Heat L/s 175 / 195
Indoor Dimensions - H x W x D mm 260 x 575 x 575
Outdoor Dimensions - H x W x D mm 619 x 824 x 299
Weight - Indoor kg 18
Weight - Outdoor kg 35
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm Ø6.35 / Ø9.52
Piping Extension Length Min ~ Max m 3 ~ 20
Elevation Difference m 15
Operating Temperature Range - Outdoor - Cooling °C -10 ~ 46
Operating Temperature Range - Outdoor - Heating °C -15 ~ 24
SKU CSCU-Z35UB4RAW
Brand Panasonic
Shipping Weight 53.0000kg
