Panasonic CSCU-E9SB4RW 2.5 kW Wired Mini-Cassette System

CSCU-E9SB4RW 2.5kW Inverter Mini-Cassette System is no longer available.

Please see replacement part Panasonic CSCU-Z25UB4RAW 2.5 kW 4-Way Mini-Cassette System.

Many air conditioners operate at one constant speed and need to constantly turn on and off to maintain a set temperature. Panasonic Inverter air conditioners have the flexibility to vary the rotation speed of the compressor, allowing them to use less energy to maintain the set temperature while also being able to cool and heat the room quicker at start up.

Features:

Panasonic Inverter technology
Compact and flexible design
Super quiet operation
Outstanding operating temperature range

(CSCU-E9SB4RW-WD)

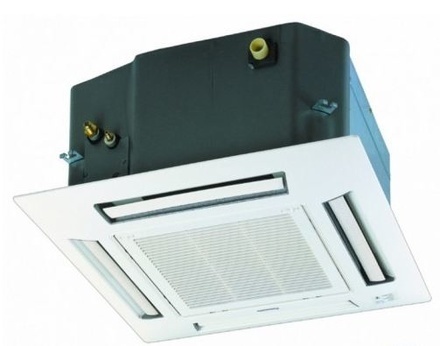

Indoor Unit		CS-E9SB4RW

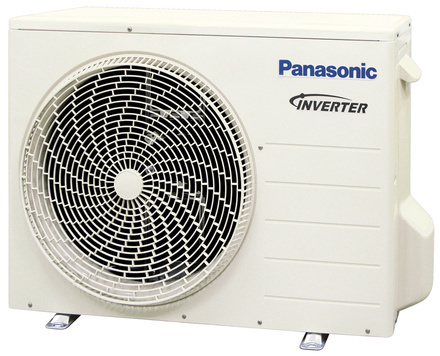

Outdoor Unit		CU-E9SB4R
Function		Cooling + Heating
Cooling Capacity Rated Conditions	kW	2.5
Cooling Capacity Range - Min ~ Max	kW	0.85 ~ 3.20
EER	w/w	3.33
Heating Capacity Rated Conditions	kW	6.1
Heating Capacity Range - Min ~ Max	kW	0.90 ~ 7.10
COP	w/w	4.10
Sound Pressure Indoor - Cool - Hi / Med / Lo	dB(A)	34 / 26 / 23
Sound Pressure Indoor - Heat - Hi / Med / Lo	dB(A)	35 / 28 / 25
Sound Pressure Outdoor - Cool / Heat	dB(A)	46 / 46
Sound Power Outdoor - Cool / Heat	dB(A)	61 / 61
Air Flow - Cool / Heat	L/s	175 / 182
Indoor Dimensions - H x W x D	mm	575 x 260 x 575
Outdoor Dimensions - H x W x D	mm	824 x 619 x 299
Weight - Indoor	kg	18
Weight - Outdoor	kg	33
Refrigerant Pipe Diameter - Liquid Side / Gas Side	mm	Ø6.35 / Ø9.52
Piping Extension Length Min ~ Max	m	3 ~15
Pipe Length for Additional Gas	m	7.5
Operating Temperature Range - Outdoor - Cooling	°C	5 ~ 46
Operating Temperature Range - Outdoor - Heating	°C	-15 ~ 24
