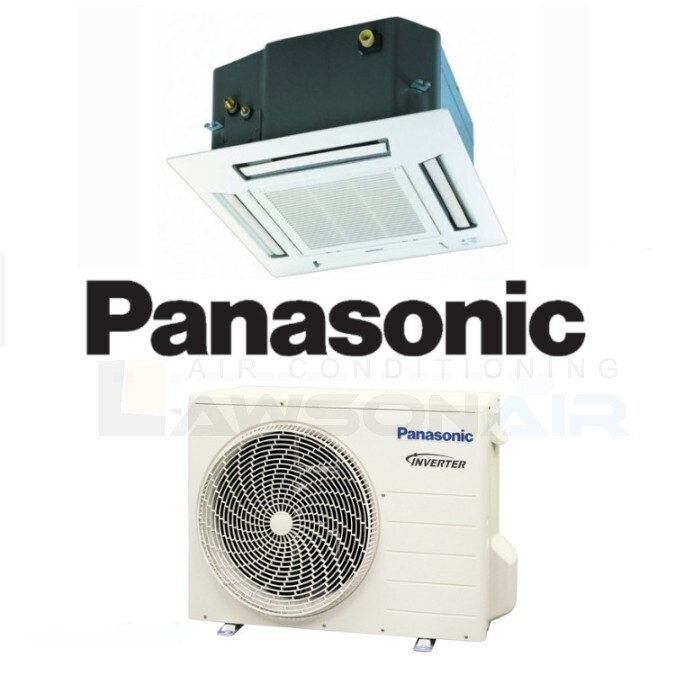

Panasonic CSCU-E12QB4RW 3.4 kW Wireless Mini-Cassette System

Mini-Cassette System (no longer available)




$1,780.00 Incl GST
$1,618.18 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

CSCU-E12QB4RW 3.4kW Inverter Mini-Cassette System is no longer available.

Please see replacement part Panasonic CSCU-Z35UB4RAW 3.5 kW 4-Way Mini-Cassette System.

Many air conditioners operate at one constant speed and need to constantly turn on and off to maintain a set temperature. Panasonic Inverter air conditioners have the flexibility to vary the rotation speed of the compressor, allowing them to use less energy to maintain the set temperature while also being able to cool and heat the room quicker at start up.



Features:

  • Panasonic Inverter technology
  • Compact and flexible design
  • Super quiet operation
  • Outstanding operating temperature range

(CSCU-E12QB4RW-WL)

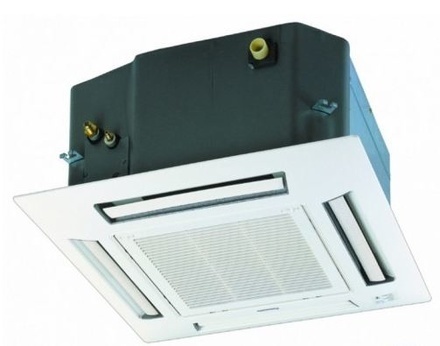

Indoor Unit CS-E15PKR

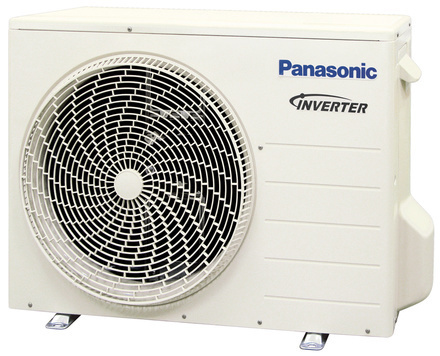

Outdoor Unit CU-E15PKR
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 4.4
Cooling Capacity Range - Min ~ Max kW 0.90 ~ 5.00
EER w/w 3.67
Heating Capacity Rated Conditions kW 5.5
Heating Capacity Range - Min ~ Max kW 0.90 ~ 7.10
COP w/w 3.74
Star Rating - Cool / Heat   2.5 / 2.5
Electrical Voltage V 240
Running Current - Cool / Heat A 5.4 / 6.5
Power Input - Cool / Heat kW 1.20 / 1.47
Sound Pressure Indoor - Cool - Hi / Lo / S-Lo dB(A) 47 / 30 / 23
Sound Pressure Indoor - Heat - Hi / Lo / S-Lo dB(A) 45 / 31 / 27
Sound Pressure Outdoor - Cool - Hi / S-Lo dB(A) 46 / 41
Sound Pressure Outdoor - Heat - Hi / S-Lo dB(A) 46 / 41
Sound Power Outdoor - Cool - Hi / S-Lo dB 62 / 57
Sound Power Outdoor - Heat - Hi / S-Lo dB 62 / 57
Quiet Mode - Indoor dB 23
Quiet Mode - Outdoor dB 41
Dehumidify L/h 2.4
Air Flow - Cool / Heat L/s 247 / 243
Indoor Dimensions - H x W x D mm 290 x 870 x 214
Outdoor Dimensions - H x W x D mm 795 x 875 x 320
Weight - Indoor kg 9
Weight - Outdoor kg 51
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm 6.35 / 12.70
Piping Extension Length Min ~ Max m 3 ~ 20
Pipe Length for Additional Gas m 7.5
Additional Refrigerant (R410A) g/m 20
Power Supply   Outdoor
Operating Temperature Range - Outdoor - Cooling °C 5 ~ 46
Operating Temperature Range - Outdoor - Heating °C -15 ~ 24
Warranty - Residential   5 Years Manufacturer's Warranty
SKU CSCU-E12QB4RW-WL
Brand Panasonic
Shipping Weight 51.0000kg
Shipping Cubic 0.238469000m3
