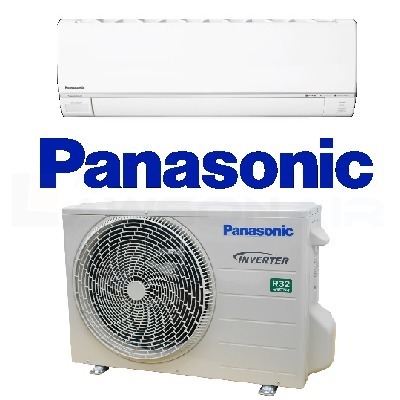

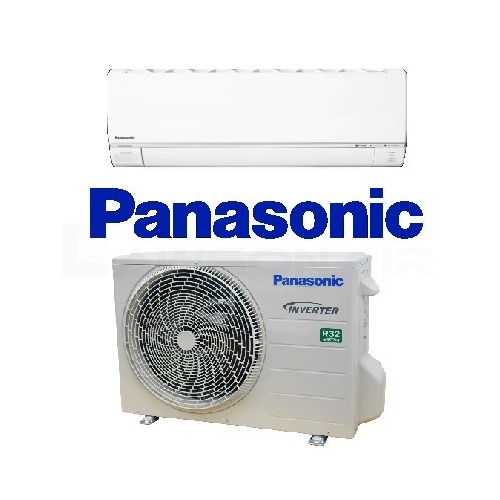

Panasonic CS/CU-Z12RKR 3.5kW Reverse Cycle Split System

Indoor Reverse Cycle Split System




$1,039.00 Incl GST
$944.55 Excl GST
Sold Out



Panasonic has launched a new range of Inverter Air Conditioners with a new stylish design, enhanced technology and smart features for cooling comfort this summer.

Consumers can also enjoy the advantage of having an Air Conditioner and air purifier in one unit. The latest Reverse Cycle Air Conditioners feature the new Nanoe-G Air Purifying System. Nanoe-G is an active air purifying system that not only deactivates unwanted airborne particles, but now also surface based particles. Nanoe-G Air Purifying removes 99% of airborne bacteria, viruses and mould as well as deactivating 99% of viruses and 99% of bacteria on surfaces for a cleaner, healthier home.

ECONAVI technology delivers up to 40% additional Energy Savings
Panasonic Inverter Technology
Advanced e-ion Air Purification System, Mild Dry Cooling

(CSCU-Z12RKR)

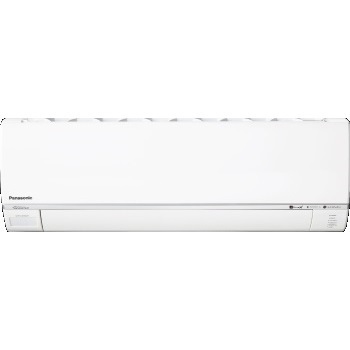

Indoor Unit CS-Z12RKR

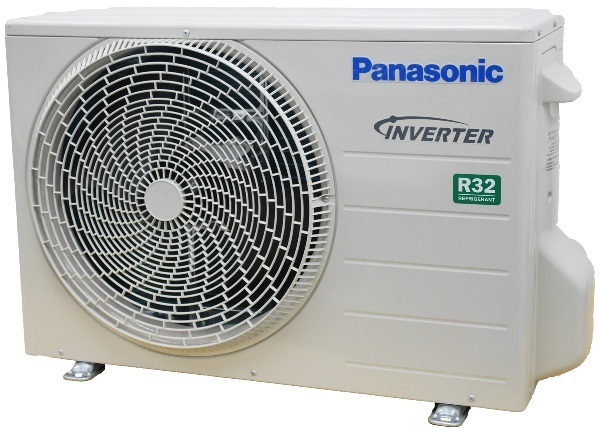

Outdoor Unit CU-Z12RKR
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 3.5
Cooling Capacity Range - Min ~ Max kW 0.90 ~ 4.00
EER   4.38
AEER   4.3
Heating Capacity Rated Conditions kW 3.7
Heating Capacity Range - Min ~ Max kW 0.80 ~ 5.10
COP   4.87
ACOP   4.78
Star Rating - Cool / Heat   4.0 / 5.0
Electrical Voltage V 240
Running Current - Cool / Heat A 3.5 / 3.3
Power Input - Cool / Heat kW 0.80 / 0.76
Sound Pressure Indoor - Cool - Hi / Lo / S-Lo dB(A) 43 / 26 / 19
Sound Pressure Indoor - Heat - Hi / Lo / S-Lo dB(A) 46 / 29 / 26
Sound Pressure Outdoor - Cool - Hi / S-Lo dB(A) 49 / -
Sound Pressure Outdoor - Heat - Hi / S-Lo dB(A) 50 / -
Sound Power Outdoor - Cool - Hi / S-Lo dB 64 / -
Sound Power Outdoor - Heat - Hi / S-Lo dB 65 / -
Quiet Mode - Indoor dB 19
Quiet Mode - Outdoor dB -
Dehumidify L/h 2
Air Flow - Cool / Heat L/s 220 / 227
Indoor Dimensions - H x W x D mm 296 x 870 x 236
Outdoor Dimensions - H x W x D mm 542 x 780 x 289
Weight - Indoor kg 9
Weight - Outdoor kg 33
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm 6.35 / 9.52
Piping Extension Length Min ~ Max m 3 ~ 20
Pipe Length for Additional Gas m 7.5
Additional Refrigerant (R32) g/m 20
Power Supply   Outdoor
Operating Temperature Range - Outdoor - Cooling °C 5 ~ 46
Operating Temperature Range - Outdoor - Heating °C -15 ~ 24
Refrigerant Type   R32
Warranty - Residential   5 Years Manufacturer's Warranty
SKU CSCU-Z12RKR
Brand Panasonic
Shipping Weight 42.0000kg
Shipping Cubic 0.182953000m3
