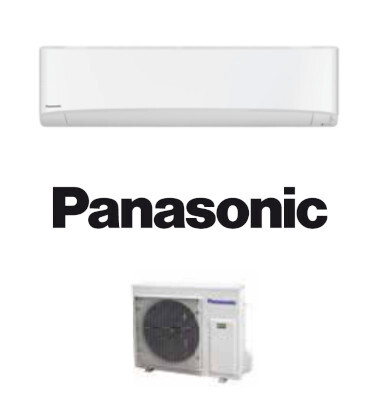

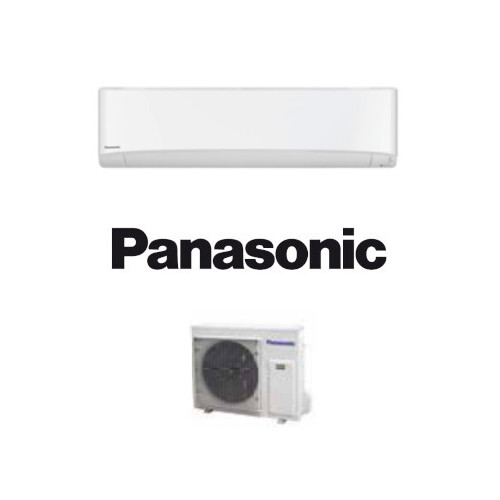

Panasonic CS/CU-RZ71WKRW 7.1 kW RZ Series Reverse Cycle Split System

Panasonic CS/CU-RZ71WKRW 7.1 kW Reverse Cycle Split System

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Panasonic CS/CU-RZ71WKRW 7.1 kW Reverse Cycle Split System

At Panasonic, we’re committed to delivering more than just cooling & heating solutions, we consistently strive to improve the quality of your air, so that you can improve the quality of your life. Panasonic’s air conditioners utilize AEROWINGS technology to deliver precise control of airflow direction, as well as powerful cooling, for a comfortable environment. As well as a cool comfortable home, a Panasonic air conditioner provides the ultimate peace of mind with our Anti-Bacterial Filter, quiet operation, and 5-year warranty.

(CSCU-RZ71VKRW-M)

Indoor Unit		CS-RZ71VKRW-M
Outdoor Unit		CU-RZ71VKR
Function		Cooling + Heating
Cooling Capacity Rated Conditions	kW	7.1
Cooling Capacity Range - Min ~ Max	kW	1.70 ~ 8.10
EER	w/w	3.24
Heating Capacity Rated Conditions	kW	7.5
Heating Capacity Range - Min ~ Max	kW	1.70 ~ 9.90
COP	w/w	3.64
Star Rating - Cool / Heat		3.0 / 3.0
Electrical Voltage	V	240
Running Current - Cool / Heat	A	9.70 / 8.8
Power Input - Cool / Heat	kW	2.19 / 2.06
Sound Pressure Indoor - Cool - Hi / Lo / S-Lo	dB(A)	49 / 37 / 34
Sound Pressure Indoor - Heat - Hi / Lo / S-Lo	dB(A)	49 / 37 / 34
Sound Power Outdoor - Cool - Hi / S-Lo	dB	66 / 61
Sound Power Outdoor - Heat - Hi / S-Lo	dB	68 / 63
Dimension - Indoor (H x W x D)	mm	302 x 1102 x 244
Dimension - Outdoor (H x W x D)	mm	695 x 875 x 320
Net Weight - Indoor/Outdoor	kg	13/50
Refrigerator Pipe - Liquid Size	mm	6.35 (1/4)
Refrigerator Pipe - Gas Size	mm	15.88 (5/88)
Pipe Extension Length (Min - Max)	m	3 - 30
Maximum Elevation Length	m	20
Pipe Length For Additional Gas	m	10
Additional Gas Amount	g/m	25
Operating Range (Outdoor) Cool/Heat	°C	-10 - +46 / -15 - +24
