Mitsubishi Heavy (MHI) 10.0kW FDU100AVNAWVH-RC-EXZ3A Ducted Air Conditioning System

FDU100VH / FDCA100VNA-W Mitsubishi Heavy (MHI) Ducted




$3,766.99 Incl GST
$3,424.54 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

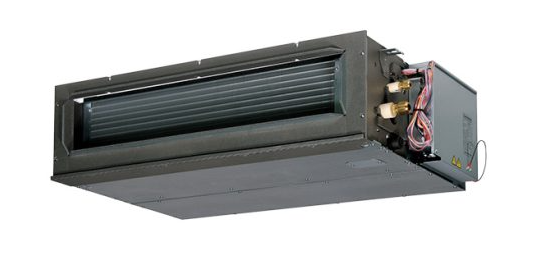

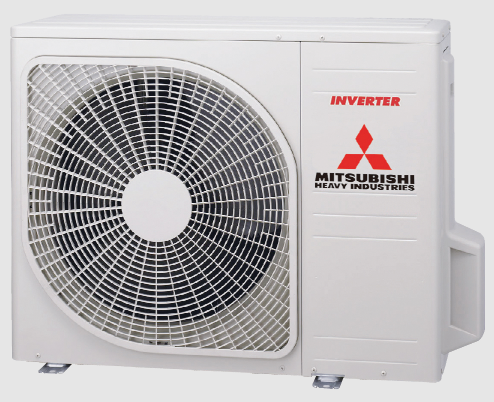

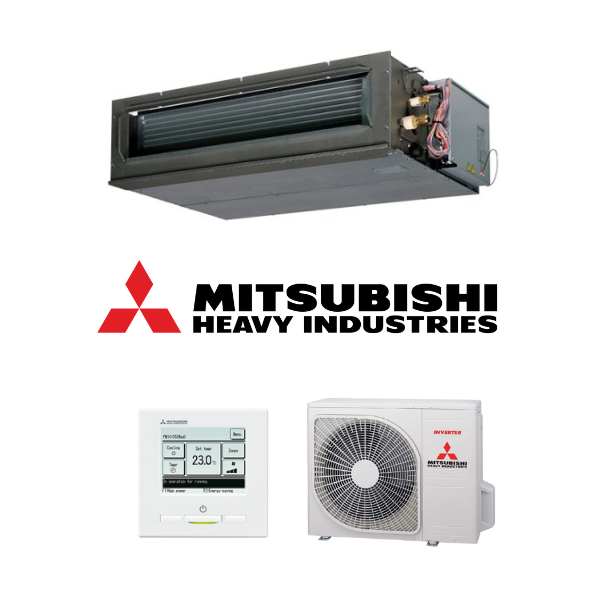

Mitsubishi Heavy Industries FDU100AVNAWVH 10.0kW Single Phase Ducted System - Inlcudes Outdoor Unit FDCA100VNA-W

The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.

Key Features:

  • Slimline design
  • High Power Mode for rapid cooling and heating
  • Weekly & Sleep timers
  • Silent operation
  • Dry operation to reduce humidity

(FDU100AVNAWVH-RC-EXZ3A)

System Name  FDU71AVNXWVH  FDU100AVNPWVH  FDU100AVNAWVH  FDU125AVNPWVH  FDU125AVNXWVH  FDU140AVNXWVH
Indoor Unit  FDU71VH  FDU100VH  FDU100VH  FDU125VH  FDU125VH  FDU140VH
Outdoor Unit  FDCA71VNX-W  FDCA100VNP-W  FDCA100VNA-W  FDCA125VNP-W  FDCA125VNX-W  FDCA140VNX-W
Power Supply  1 Phase, 240V, 50Hz
Cooling Capacity (kW)  7.1  10.0  10.0  12.1  12.5  14.0
Heating Capacity (kW)  8.0  10.0  11.2  12.1  14.0  16.0
Rated Power Input (Cool/Heat) (kW)  1.77 / 1.78  3.08 / 2.45  2.99 / 2.66  3.85 / 3.28  3.49 / 3.61  4.22 / 4.22
EER/COP  4.01 / 4.49  3.25 / 4.08  3.35 / 4.21  3.14 / 3.69  3.58 / 3.88  3.32 / 3.79
Duct Sizes (Supply/Return) (mm)  170 x 880 / 200 x 740  170 x 1200 / 235 x 1280
Max External Static Pressure (Pa)  200
Refrigerant Type/Amount (kg)  R32 / 2.75  R32 / 1.7  R32 / 3.3  R32 / 2.25  R32 / 4.0
Max Pipe Length (m)  50  30  50  30  100
Max Level Difference (m)  I.D.U Higher 15 / O.D.U Higher 30  I.D.U Higher 20 / O.D.U Higher 20  I.D.U Higher 15 / O.D.U Higher 50  I.D.U Higher 20 / O.D.U Higher 20  I.D.U Higher 15 / O.D.U Higher 50
Indoor Dimensions (HxWxD) (mm)  280 x 950 x 635  280 x 1370 x 740
Outdoor Dimensions (HxWxD) (mm)  750 x 880 x 340  845 x 970 x 370  1300 x 970 x 370
Indoor Weight (kg)  34  54
Outdoor Weight (kg)  60  57  77  73  97
Pipe Sizes (mm) (Liquid/Gas)  9.52 / 15.88  6.4 / 15.88  9.52 / 15.88
SKU FDU100AVNAWVH-RC-EXZ3A
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 131.0000kg
Unit Of Measure ea

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
