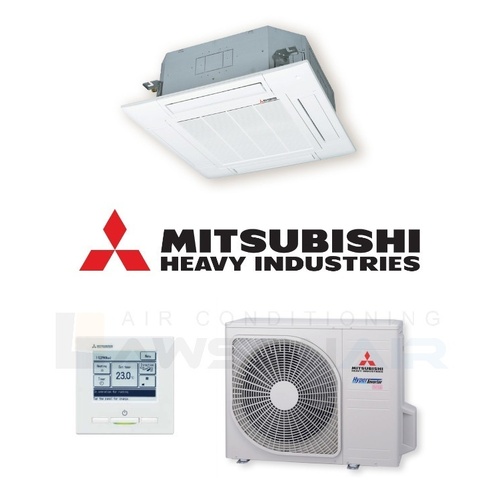

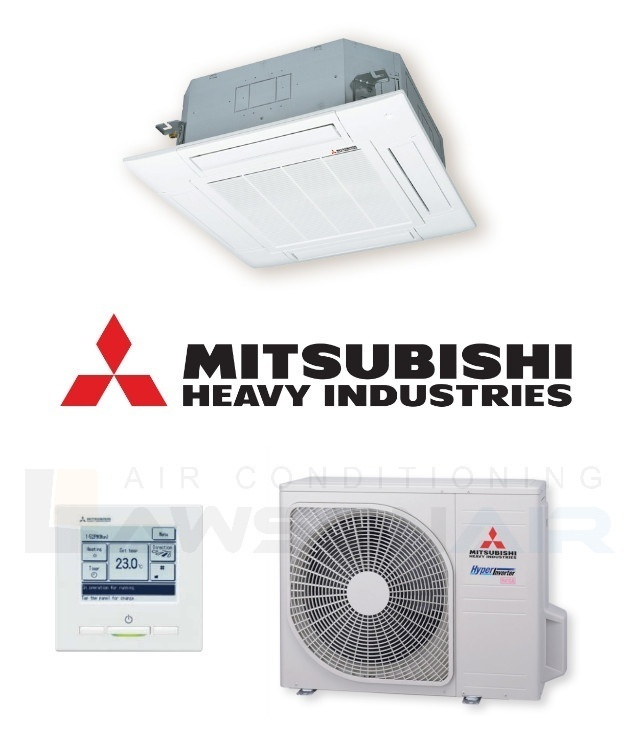

Mitsubishi Heavy Industries FDT100AVNVG 10.0 kW Ceiling Cassette

FDT100AVNVG Ceiling Cassette System

$3,512.00 Incl GST
$3,192.73 Excl GST
Sold Out


Mitsubishi Heavy Industries FDT100AVNVG 10.0 kW Ceiling Cassette System

Due to the unique design of the DC fan motors the MHI ceiling cassettes are some of the slimmest on the market, allowing for ease of installation. A versatile solution for a wide variety of commercial spaces, such as fitness centres, retail shops, small to medium offices, cafes, restaurants and more, the single and three-phase models range in capacity from 2.5kW to 14kW.

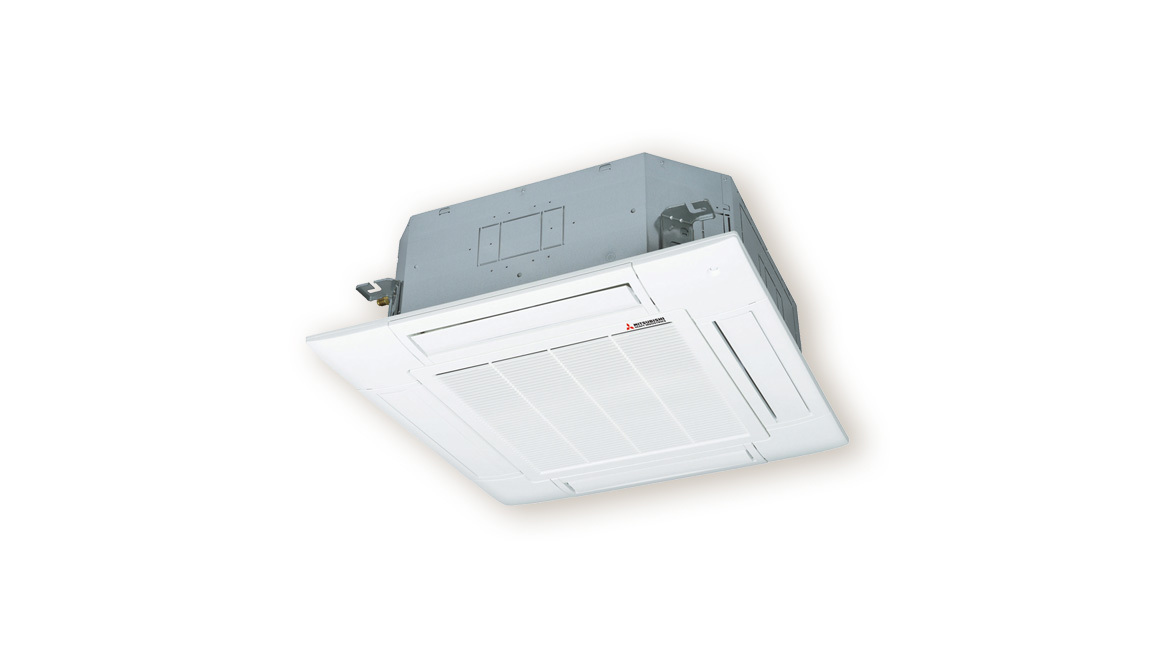

Indoor FDT100VG

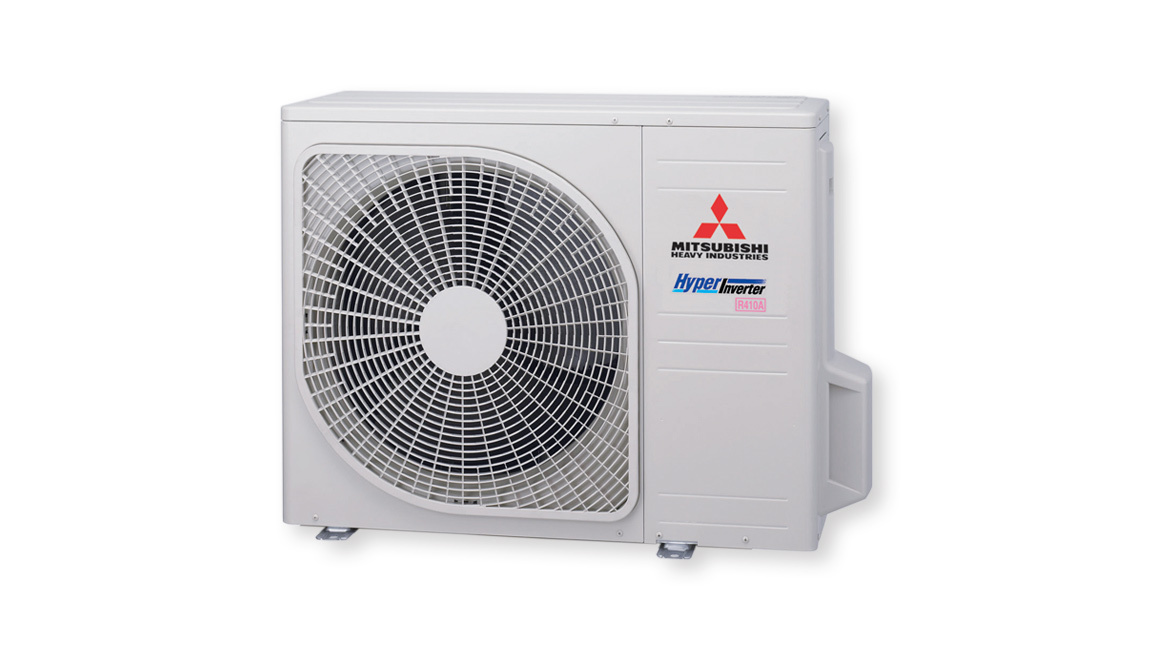

Outdoor FDCA100VN
Power Supply 1 Phase 240V 50Hz
Capacity Cooling T1 kW 10.0 (4.0 - 11.2)
Heating H1 11.2 (4.0 - 12.5)
Input Cooling T1 kW 2.76
Heating H1 2.74
Max Power Consumption   kW 6.40
EER Cooling T1   3.62
COP Heating H1   4.09
Sound Power Level (JIS C9612) Outdoor dB(A) 70
Sound Pressure Level (JIS C9612) Indoor (P-Hi/Hi/Me/Lo) dB(A) 48 / 39 / 37 / 31
Outdoor 49
Airflow Indoor (P-Hi/Hi/Me/Lo) l/s 616 / 433 / 383 / 283
External dimensions (HxWxD) Indoor mm 298 x 840 x 840
Panel 35 x 950 x 950
Outdoor 845 x 970 x 370
Net weight Indoor kg 25
Panel 5
Outdoor 81
Refrigerant Piping Liquid Line mm Ø9.52
Gas Line Ø15.88
Connection Method   Flare Connection
Refrigerant R410A Quantity kg 3.8
Pre charged to pipe length m 30
Maximum pipe length  m 50
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 111.0000kg


Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
