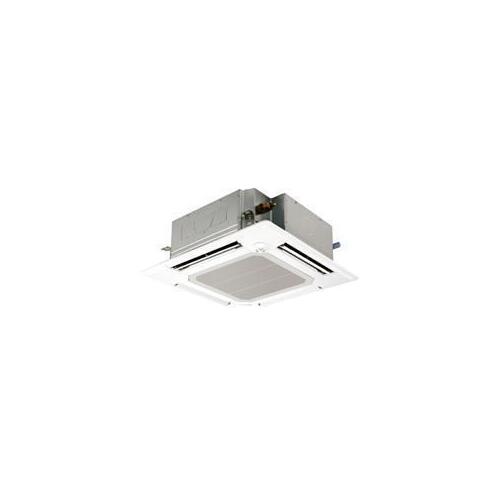

Mitsubishi Electric 12.5kW PLA-M125EA-3P-WR 3 Phase Cassette Air Conditioning System

PLA-M125EA-A / PUZ-ZM125YKA-A Mits Electric Cassette




$6,251.00 Incl GST
$5,682.73 Excl GST
In Stock



Mitsubishi Electric Wired 12.5kW PLA-M125EA Three Phase Cassette Split System - Includes Outdoor Unit PUZ-ZM125YKA-A

Our Deluxe PLA125 high performance cassette, has wide, powerful airflow, independent vane direction setting and wave airflow to provide consistent temperatures throughout the space you need to heat or cool. Perfect for larger residential rooms or office spaces. This model comes standard with an infrared remote controller.

Features:

  • Optimum Airflow
  • Automatic Air Speed Adjustment
  • High and Low Ceiling Modes

(PLA-M125EA-3P-WR)

Unit PLA-M125
Indoor Unit PLA-M125EA-A
Outdoor Unit PUZ-ZM125YKA-A
Power Supply V / ø / Hz 400 / 3 / 50
Cooling Capacity min - nominal - max kW 5.5 - 12.5 - 14.0
Total input kW 3.55
AEER/EER   3.37 / 3.52
Running current (Rated) A 5.9
Sound Pressure Level In (Lo - Mid - Hi) dB(A) 33 - 37 - 41 - 44
Out dB(A) 50
Air Volume (In) Lo - Mid - Hi  L/s 350 - 417 - 467 - 517
Heating Capacity min - nominal - max kW 5.0 - 14.0 - 16.0
Input kW 3.58
ACOP/COP   3.75 / 3.91
Running current (Rated)   5.9
Sound Pressure Level In (Lo - Mid - Hi)   33 - 37 - 41 - 44
Out   52
Air Volume (In) Lo - Mid - Hi    350 - 417 - 467 - 517
Max. Running Current A 12.16
Indoor Unit Dimensions H x W x D mm 298 x 840 x 840
Weight kg 27
Outdoor Unit Dimensions H x W x D mm 1138 x 1050 x 330
Weight kg 114
Panel Dimensions H x W x D mm 40 x 950 x 950
Weight kg 5
Refrigerant Pipe size Liquid mm ø9.52
Gas mm ø15.88
Max. Piping Height m 30
Max. Piping Length m 75

Operating
Range

Cooling °C -5(15) - 52
Heating °C -20 - 21
SKU PLA-M125EA-3P-WR
Brand Mitsubishi Electric
Shipping Weight 146.0000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
