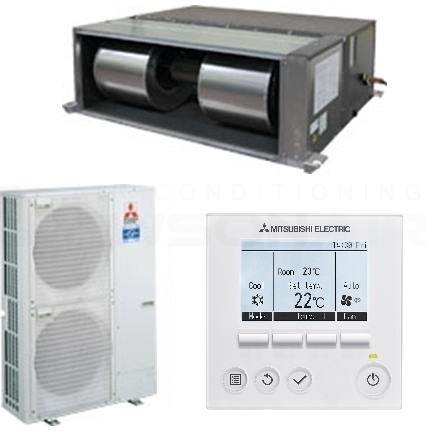

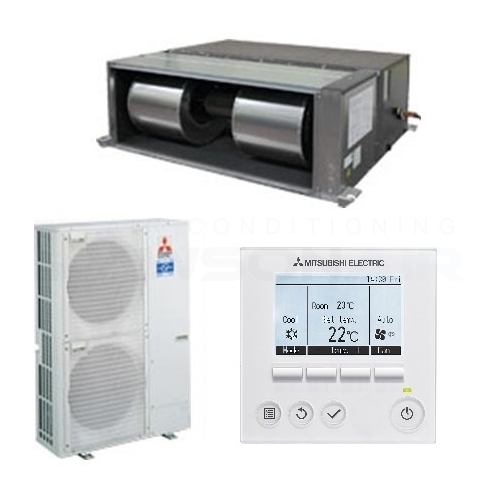

Mitsubishi Electric PEA-RP170WJA 17.0 kW 1 Phase Power Inverter Ducted Unit

Ducted Unit Air Conditioner (no longer available)

$6,594.00 Incl GST
$5,994.55 Excl GST
Sold Out


Mitsubishi Electric PEA-RP170WJA 17.0 kW 1 Phase Power Inverter Ducted Unit

Advanced technology makes Mitsubishi Electric Power Inverter ducted air conditioning the premium choice for creating your living environment. It provides energy savings when compared to non inverter models. The reason our Power Inverters are more energy efficient is because the system output varies constantly to maintain your perfect living environment. This means that a Power Inverter will cool or heat your home more rapidly and maintain the desired temperature without fluctuations while using less energy.

Features of Mitsubishi Electric Power Inverter Ducted Air Conditioning Systems

  • Accessories and options are available so that you get the system that suits you
  • Powerful yet extremely quiet operation
  • High static pressure fans means that even when connected to lengthy ductwork, the volume of airflow is maintained to keep your living environment comfortable at all times
  • All systems incorporate the latest referigerant R410A
  • Lightweight and compact means it is easy to install in limited roof space
  • Super quiet operation during the day and even quieter at night
  • Guaranteed operation for outdoor temperatures of -20ºC for heating and up to 46ºC for cooling
  • Long refrigerant piping allows even greater flexibility in the location of the outdoor unit

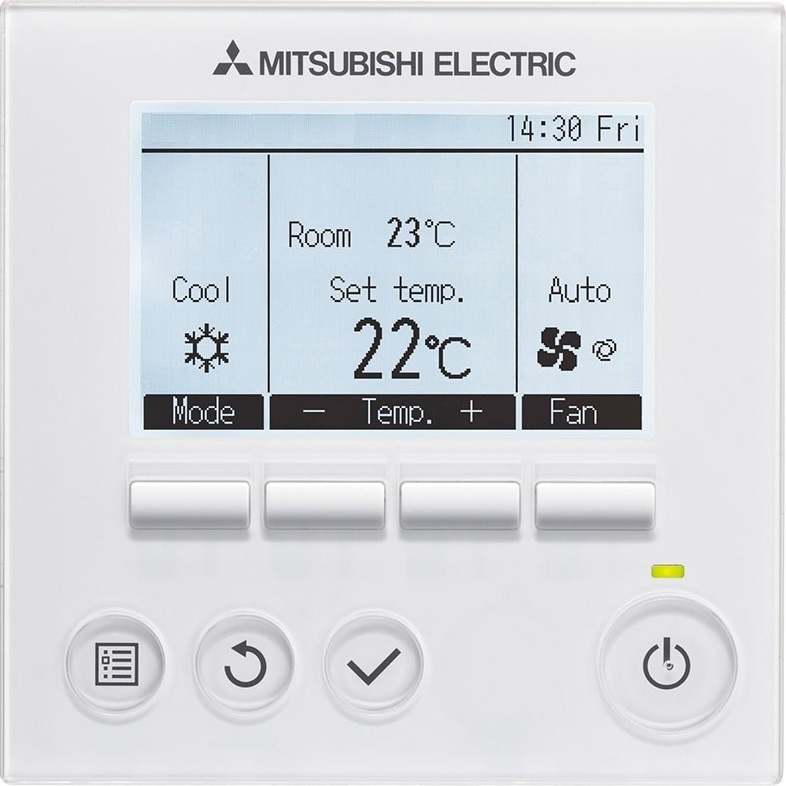

  • Uses the PAR-21MAA system controller for weekly scheduled operation
  • Self-diagnostic function in the unlikely event of a system malfunction.


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!



Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal, Iconic smart home automation product suppliers.


 Specifications: PEA Unit
 Indoor Unit PEA-RP170WJA
 Outdoor Unit PUHZ-RP170VKA
Cooling Capacity Rated kW 16.0
Min - Max kW 9.0 - 20.0
Air Flow Low - Hi L/s 833 - 1017 - 1200
External Static Pressure Pa 60 - 75 - 100 - 150
EER Rated Conditions   3.20
Sound Pressure Levels Indoor at 1.5m (Low - Hi) dBA 38 - 41 - 44
Outdoor at 1m (Quiet Mode) dBA 58
Heating Capacity Rated kW 20.0
Min - Max kW 9.5 - 22.4
Air Flow Low - Hi L/s 833 - 1017 - 1200
COP Rated Conditions   3.33
Sound Pressure Levels Indoor at 1.5m (Low - Hi) dBA 38 - 41 - 44
Outdoor at 1m dBA 59
Dimensions Indoor HxWxD mm 470 x 1370 x 1120
Outdoor HxWxD mm 1388 x 1050 x 330+30
Weight Indoor kg 108
Outdoor kg 127
Electrical Supply V / Ph / Hz 240 / 1 / 50
Breaker Size A 40
Piping Maximum Length m 75
Maximum Height m 30
Guaranteed Operating Range Cooling °C -5 to 46
Heating °C -20 to 21
Brand Mitsubishi Electric
Shipping Weight 255.0000kg


Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
