Best Prices Mitsubishi Electric MXZ-6F120VGD-A2 12.0kW Outdoor Multi Air Con Low Cost Installation

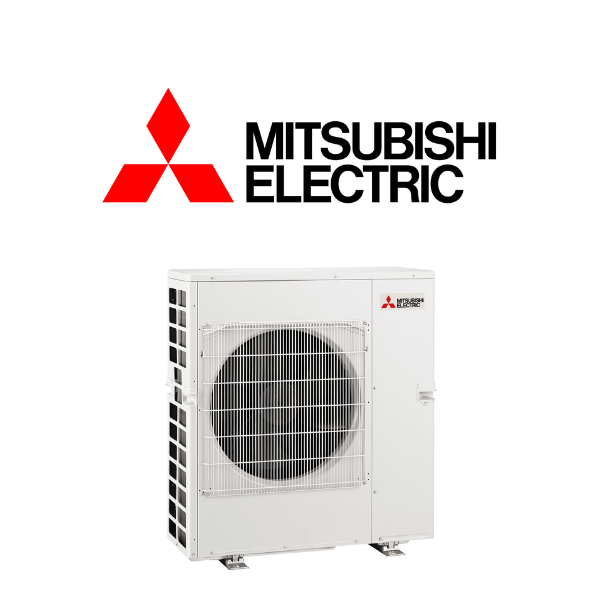

Mitsubishi Electric MXZ-6F120VGD-A2 12.0kW Outdoor Only 2-6 Port Multi R32 Air Conditioning Unit

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.

Mitsubishi Electric MXZ-6F120VGD-A2 10.0kW Outdoor 2 - 6 Port Multi R32 Air Conditioning Unit

The MXZ-6F120VGD 12kW multi split system connects up to six indoor units to a single outdoor system, providing air conditioned comfort across multiple rooms. This 6-port system delivers efficient heating and cooling for properties requiring air conditioning in bedrooms, living areas and studies. You can mix and match different indoor unit styles – including wall-mounted, floor-standing, ceiling cassette and ducted options – to suit each room’s specific requirements while maintaining consistent performance throughout your home.

Key Features:

Capacity: 12 kW
6-port connection
Energy efficient
Wi-Fi Control
Quiet operation
Individual Temperature Control for Each Room
Demand Response Capable

(MXZ-6F120VGD-A2)

Outdoor Unit Name	MXZ-2F52VF-A2	MXZ-2F52VGD-A2	MXZ-3F54VGD-A2	MXZ-4F71VGD-A2	MXZ-4F80VGD-A2	MXZ-5F100VGD-A2	MXZ-6F120VGD-A2
Power Supply	1 Phase, 220-230V, 50-60Hz
Cooling Capacity (kW)	5.2	5.2	5.4	7.1	8.0	10.0	12.0
Heating Capacity (kW)	6.1	6.1	7.0	8.0	8.8	10.0	13.2
Indoor Unit Connection	2 Units		2 to 3 Units	2 to 4 Units		2 to 5 Units	2 to 6 Units
Total Rated Input Cool/Heat (kW)	1.38 / 1.49	1.38 / 1.45	1.25 / 1.43	1.79 / 1.67	1.98 / 1.68	2.84 / 2.07	3.30 / 3.00
EER / COP	3.77 / 4.09	3.77 / 4.21	4.32 / 4.90	3.97 / 4.79	4.04 / 5.24	3.52 / 4.83	3.64 / 4.40
Sound Pressure Cool/Heat dBA	46 / 50			48 / 54	49 / 51	52 / 56	53 / 57
Max Running Current (A)	12.2		18		21.4		29.8
Pre-Charge Refrigerant	1.0	2.4
Max Pipe Length Total/Each (m)	30/20	40/20	50/25	60/25	70/25	80/25
Operating Range Cool/Heat (C)	Cooling: -10 to 46 / Heating: -15 to 24
Unit Dimensions HxWxD (mm)	550 x 800 x 285	710 x 840 x 330			796 x 950 x 330		1048 x 950 x 330
Unit Weight (kg)	37	57	58	59	61	62	87
Pipe Sizes (mm) Liquid	(6.4) x 2		(6.4) x 3	(6.4) x 4		(6.4) x 5	(6.4) x 6
Pipe Sizes (mm) Gas	(9.5) x 2		(9.5) x 3	(9.5) x 3 / (12.7) x 1		(9.5) x 4 / (12.7) x 1	(9.5) x 5 / (12.7) x 1

SKU	MXZ-6F120VGD-A2
Brand	Mitsubishi Electric
Shipping Weight	87.0000kg
Shipping Width	0.330m
Shipping Height	1.048m
Shipping Length	0.950m
Shipping Cubic	0.328548000m3
Unit Of Measure	ea
