Best Prices Rinnai MON2H05B1LA 5.4kW Multi Air Conditioner Low Cost Install Brisbane Sydney

Rinnai MON2H05B1LA 5.4kW Outdoor Only Multi Air Conditioning Unit (2 Connectable Units)

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.

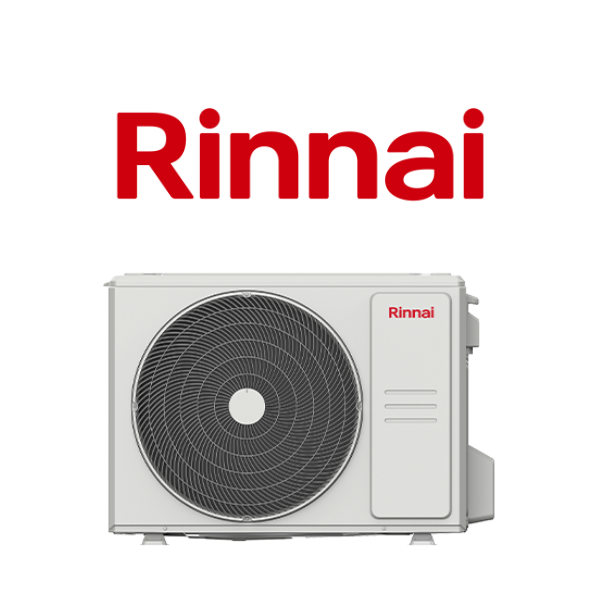

Rinnai MON2H05B1LA 5.4kW Outdoor Multi Air Conditioning Unit (2 Connectable Units)

Designed to connect up to two indoor units, these versatile outdoor units deliver efficient performance, intelligent Wi-Fi control, and reliable comfort for homes and businesses. They are compatible with the Rinnai Multi Split Range, allowing a single outdoor unit to connect and efficiently control multiple indoor units throughout your space.

Features

Residential and commercial use - A versatile solution designed to deliver reliable climate control across residential and light commercial applications.
Wi-Fi Control - Control your air conditioning remotely using Wi-Fi connectivity for greater convenience and flexibility.
Smart 3D DC inverter - Advanced smart 3D DC inverter technology helps optimise performance while reducing energy consumption.
Demand control - Manage energy usage more effectively with demand control functionality that helps reduce peak power consumption

(MON2H05B1LA)

Outdoor Unit Name	MON2H05B1LA	MON3H07B1LA	MON4H09B1LA	MON5H11B1LA	MON5H14B1LA	MON6H19B1TA
Power Supply	220-240 / 1 / 50
Cooling Capacity Rated/Min-Max (kW)	5.4 (1.0-7.2)	7.2 (3.2-8.2)	9.0 (2.7-10.3)	11.6 (2.6-15.1)	13.5 (2.6-15.1)	19.0 (5.4-19.6)
Heating Capacity Rated/Min-Max (kW)	5.4 (1.9-5.9)	7.3 (2.1-8.8)	9.5 (2.8-10.3)	12.5 (2.6-16.3)	14.0 (2.6-16.3)	21.5 (3.9-22.6)
Rated Input Power Cool/Heat (kW)	1.48 / 1.32	1.97 / 1.61	2.39 / 2.32	3.13 / 2.78	3.91 / 3.26	5.58 / 5.1
Rated Input Current Cool/Heat (A)	6.7 / 6.0	9.1 / 7.6	10.8 / 10.5	14.0 / 12.4	17.5 / 14.5	24.1 / 29.0
AEER / ACOP	3.58 / 4.0	3.58 / 4.41	3.7 / 4.01	3.64 / 4.42	3.4 / 4.22	3.42 / 4.16
Maximum Input Current (A)	12	17.5	19	30		33
Recommended Circuit Breaker (A)	25			32		40
Compressor Type	Inverter Rotary	Inverter Twin Rotary
Sound Power Level dBA	61	65	68		70	72
Net Dimensions (HxWxD) (mm)	554x805x330	673x890x342	810x946x410	975x980x451		1333x952x415
Gross Dimensions (HxWxD) (mm)	615x915x370	815x1030x438	965x1090x500	1120x1145x500		1500x1095x495
Net/Gross Weight (kg)	34.6 / 37.7	48.0 / 61.5	66.2 / 83.0	91.0 / 106.4		110.6 / 124.9
Refrigerant Type / Precharge (g)	R32 / 1250	R32 / 1850	R32 / 2400	R32 / 3600		R32 / 4300
Operation Range Cool/Heat (C)	-15 to 50 / -15 to 24
Max System Pipe Length (m)	40	60	80
Pre-Charged Length (m)	20	30	40	50		60
Max Pipe Length per IDU (m)	25	30	35
Max Vertical Diff ODU Above (m)	15
Max Vertical Diff ODU Below (m)	15
Max Height Diff Between IDU (m)	10
Pipe Sizes (mm) (Liquid)	2 x 6.35	3 x 6.35	4 x 6.35	5 x 6.35		6 x 6.35
Pipe Sizes (mm) (Gas)	2 x 9.52	3 x 9.52	3 x 9.52 + 1 x 12.7	3 x 9.52 + 2 x 12.7		4 x 9.52 + 2 x 12.7

SKU	MON2H05B1LA
Brand	Rinnai
Shipping Weight	37.7000kg
Shipping Width	0.915m
Shipping Height	0.615m
Shipping Length	0.370m
Shipping Cubic	0.208208250m3
Unit Of Measure	ea
