Mitsubishi Electric Cassette PLAZM71EAVALKIT 7.1kW 1 Phase Wireless Power Inverter Air Conditioning System
PLA-M71EA2-A.TH/PUZ-ZM71VHA2-A Mitsubishi Cassette
$3,982.73 Excl GST

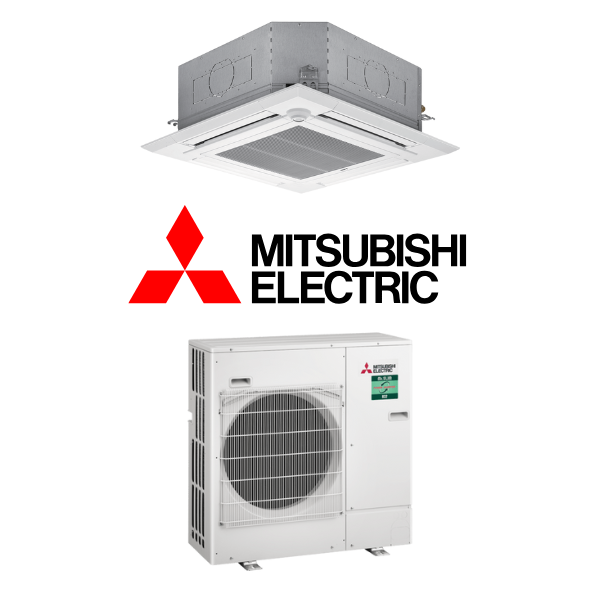

Mitsubishi Electric PLAZM71EAVALKIT 7.1kW Single Phase Power Inverter Ceiling Cassette Air Conditioner - Includes High Performance Outdoor Unit and Standard Remote Controller (Wireless)

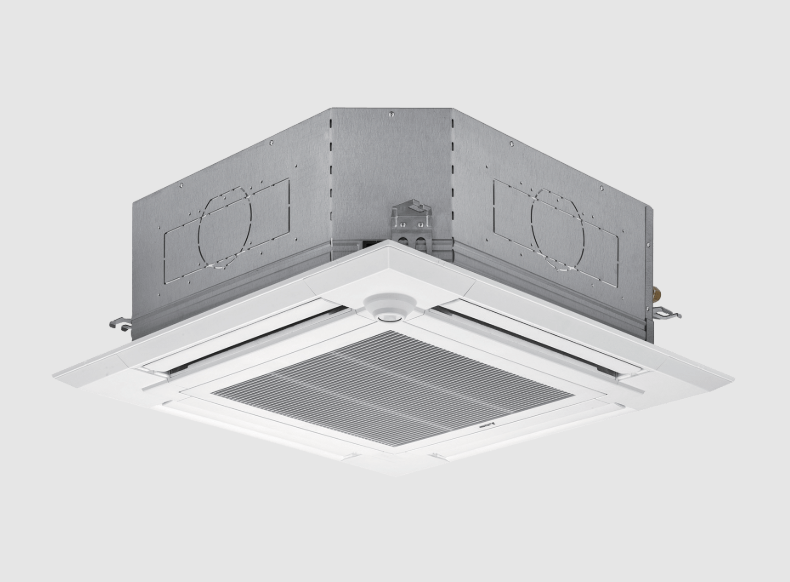

The Mitsubishi Electric PLA-M Series are ceiling cassettes that features a modern style with a sleek finish designed to fit discreetly with contemporary interior design, and performance providing enhanced airflow distribution for optimal comfort.
Key Features:
- Wide Airflow - This Cassette has the capacity to circulate air evenly throughout a room with the use of wide-angle outlets. A 20% reduction in horizontal airflow and fan speed is achieved when comparing to conventional models, increasing the comfort experienced by occupants.
- Horizontal Airflow - The airflow control reduces uncomfortable drafty feelings with the introduction of a horizontal airflow that spreads across the ceiling.
- Built-in Drain Pump
- PLP-6EALM2 Grille for Wireless Option (with Remote Controller)
(PLAZM71EAVALKIT)
| System | PLAZM71EAVALKIT | PLAZM100EAVALKIT | PLAZM125EAVALKIT | PLAZM140EAVALKIT | |
|---|---|---|---|---|---|
| Indoor Unit | PLA-M71EA2-A.TH | PLA-M100EA2-A.TH | PLA-M125EA2-A.TH | PLA-M140EA2-A.TH | |

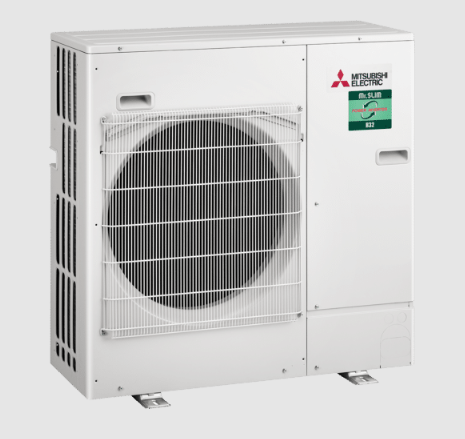

| Outdoor Unit | PUZ-ZM71VHA2-A | PUZ-ZM100VKA2-A.TH | PUZ-ZM125VKA2-A.TH | PUZ-ZM140VKA2-A.TH | |
| Cooling Capacity Rated/Min-Max | kW | 7.1 (3.3-8.1) | 10.0 (4.9-11.4) | 12.5 (5.5-14.0) | 13.5 (6.2-15.3) |
| Heating Capacity Rated/Min-Max | 8.0 (2.6-10.2) | 11.2 (2.8-12.5) | 14.0 (4.1-15.0) | 16.0 (5.7-18.0) | |
| Power Supply | 1 Phase, 230V, 50Hz | ||||
| EER/COP | 3.98 / 3.94 | 4.11 / 3.80 | 3.52 / 3.91 | 3.43 / 3.57 | |
| Total Input Rated Cool/Heat | kW | 1.78 / 2.03 | 2.43 / 2.94 | 3.55 / 3.58 | 3.93 / 4.48 |
| Rated Running Current Cool/Heat | A | 8.1 / 9.89 | 11.1 / 14.02 | 16.6 / 16.3 | 18.07 / 21.14 |
| Sound Pressure Level In (Lo/Mid2/Mid1/Hi) Cooling | dBA | 28 - 30 - 32 - 34 | 31 - 34 - 37 - 40 | 33 - 37 - 41 - 44 | 36 - 39 - 42 - 44 |
| Sound Pressure Level Out (PWL) Cooling | 47(67) | 49(69) | 50(70) | ||
| Sound Pressure Level In (Lo/Mid2/Mid1/Hi) Heating | 28 - 30 - 32 - 34 | 31 - 34 - 37 - 40 | 33 - 37 - 41 - 44 | 36 - 39 - 42 - 44 | |
| Sound Pressure Level Out (PWL) Heating | 51(70) | 51(69) | 52(70) | 52(71) | |
| Air Volume (In) Lo/Mid2/Mid1/Hi Cooling | L/s | 267 - 283 - 317 - 350 | 317 - 383 - 433 - 483 | 350 - 417 - 467 - 517 | 400 - 433 - 483 - 533 |
| Air Volume (In) Lo/Mid2/Mid1/Hi Heating | 267 - 283 - 317 - 350 | 317 - 383 - 433 - 483 | 350 - 417 - 467 - 517 | 400 - 433 - 183 - 533 | |
| Max Running Current | A | 19.27 | 27.96 | 28.16 | 29.16 |
| Indoor Unit Dimensions HxWxD | mm | 258 x 840 x 840 | 298 x 840 x 840 | ||
| Panel Dimensions HxWxD | 40 x 950 x 950 | ||||
| Outdoor Unit Dimensions HxWxD | 943 x 950 x 330 | 1338 x 1050 x 330(+40) | |||
| Indoor Unit Weight | kg | 21 | 24 | 27 | |
| Panel Weight | 5 | ||||
| Outdoor Unit Weight | 70 | 113 | |||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | |||
| Max. Piping Length/Height | m | 50 / 30 | 75 / 30 | ||
| Outdoor Operating Range Cool/Heat | C | -15 to 52 / -20 to 21 | |||
| Pre-Charge R32 Refrigerant | kg | 2.8(30m) | 4.0(30m) | ||
| Additional Refrigerant | g/m | 40 | |||
| SKU | PLAZM71EAVALKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 96.0000kg |
| Shipping Cubic | 0.513775000m3 |
| Unit Of Measure | ea |
