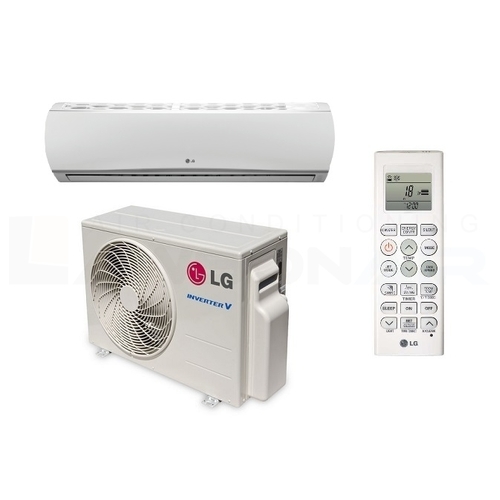

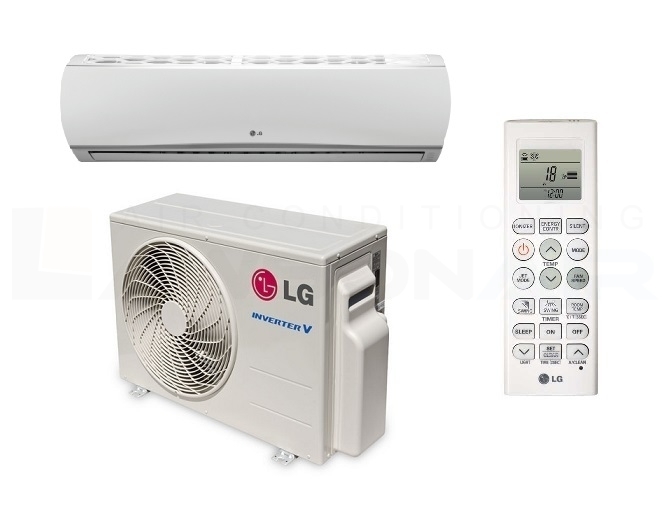

LG Brisbane Air Conditioner Installation E32AWN-13 9.0kW Split System

Designed with innovative technologies and stylish designs, LG air conditioners can keep you cool on hot summer days – and offer heating functions for cold winter nights. Choose from sleek split systems, window wall units, multi-split air conditioners and whole-home ducted air conditioning solutions that cool and heat your entire space quickly and efficiently. In addition to offering state-of-the-art air conditioners, we also offer world-class service and support and AirCon101, which can help you find the right air conditioner to suit your space and your lifestyle.

(E32AWN-13)

2.50kW/3.20kW Cooling/heating capacity
Active energy control
Standy Mode
D.R.E.D
BLDC Motor
Wi-Fi Smart Control Yes (Optional)
Plasmaster Ioniser Plus Yes
Micro Dust Filter Powered by 3M Tech Yes
Dust Protection Filter Yes
Auto Cleaning Yes (Plasmaster)
Dehumidification Mode Yes
24-hour On / Off Timer Yes

Model				E32AWN-13

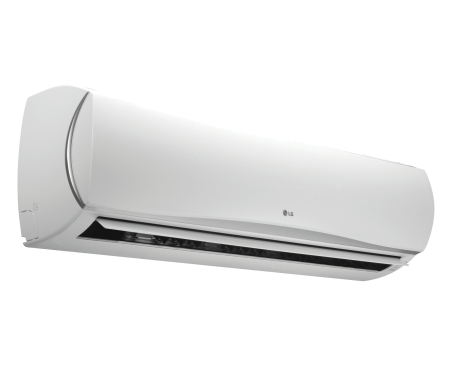

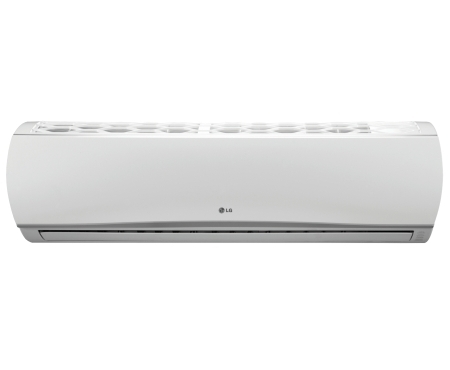

Indoor Unit				E32AWN-NV13

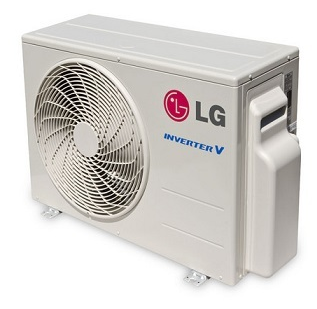

Outdoor Unit				E32AWN-UV13
Cooling Capacity		Min	kW	0.9
		Rated	kW	9
		Max	kW	10.2
Heating Capacity		Min	kW	0.9
		Rated	kW	10
		Max	kW	12.8
Power Input	Cooling	Rated	kW	2.9
Power Input	Heating	Rated	kW	3.2
E.E.R				3.1 (3.92)
C.O.P				3.11
Energy Label (Star Rating)	Cooling			1.5
Energy Label (Star Rating)	Heating			1.5
Sound Pressure (Cooling)	Sleep / Low / Medium / High		dBA	37 / 40 / 44 / 49
Sound Pressure (Heating)	Low / Medium / High		dBA	40 / 44 / 49
Sound Power	Cooling	High	dBA	65
Air Flow Rate (Cooling)	Sleep / Low / Medium / High / Jet Cool		L/s	217 / 250 / 333 / 400 / 467
Air Flow Rate (Heating)	Low / Medium / High		L/s	250 / 333 / 400
Dehumidification Rate			L/hr	3
Running Current	Cooling	Rated / Max	A	12.8 / 14.5
Running Current	Heating	Rated / Max	A	14.2 / 16
Starting Current	Cooling	Rated	A	12.8
Starting Current	Heating	Rated	A	14.2
Dimensions			mm	1,190 x 346 x 265
Net Weight			kg	18.5
Operation Range	Cooling	Min - Max	°CDB	-10 to 48
Operation Range	Heating	Min - Max	°CDB	-15 to 24
Sound Pressure	Cooling	High	dBA	55
Sound Pressure	Heating	High	dBA	55
Sound Power	Cooling	High	dBA	66
Air Flow Rate		High	L/s	1,000
Compressor Type				Twin Rotary
Net Weight			kg	56
Dimensions			mm	870 x 800 x 320
Refrigerant Base Charge (R410A)			g	1,900
Pipe Sizing	Gas / Liquid		mm	15.88 / 9.52
Maximum Circuit Breaker			A	25
