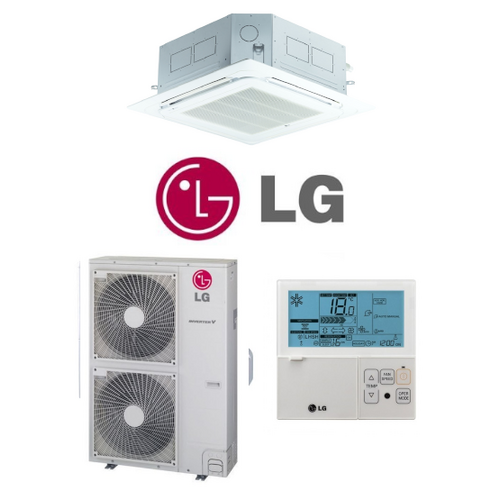

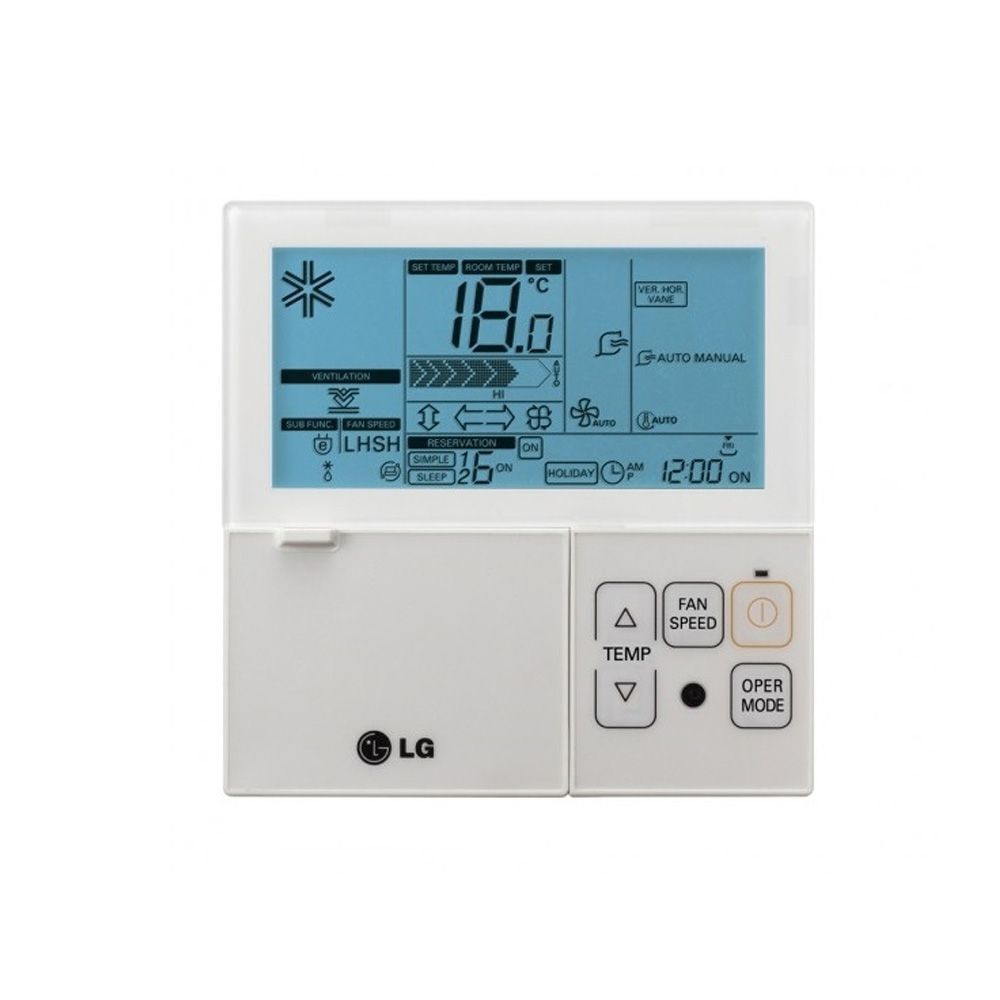

LG UTN48R 13.4kW Ceiling Mounted Cassette - Includes Wireless Controller and Outdoor Unit UU48WR
Discreet and versatile - LG Cassette Air Conditioners are Ideal for various applications including the lounge, family room,restaurants, hotels, offices and meeting rooms
Features:
- Compact Size
- High Ceiling Mode
- Prevent Ceiling Pollution
- Quiet Operation with 3D Fan
(UTN48RKIT)

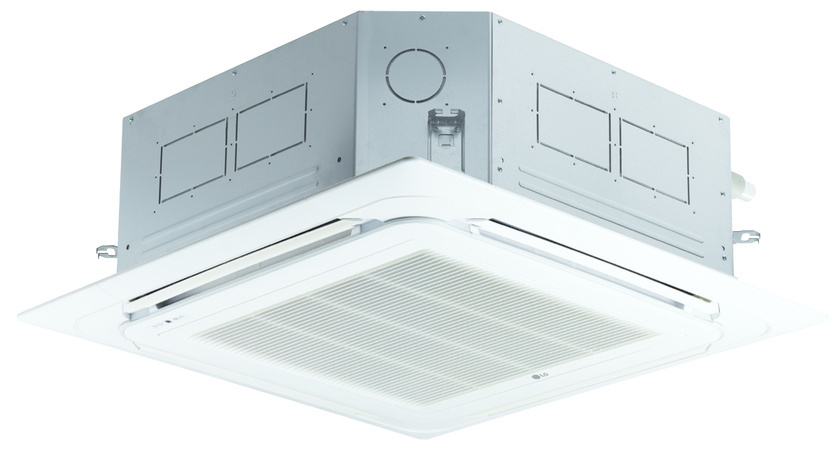

| Indoor Unit |
UTN48R |

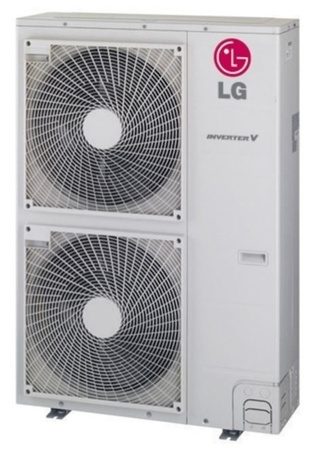

| Outdoor Unit |
UU48WR |
| Power Supply |
1 Phase, 220 ~ 240v, 50Hz |
| Rated Capacity |
| Cool (kW) |
13.4 |
| Heat (kW) |
15.5 |
|
| Capacity Range |
| Cool (kW) |
5.50 ~ 16.00 |
| Heat (kW) |
6.10 ~ 18.00 |
|
| Power Input (Rated) |
| Cool (kW) |
4.30 |
| Heat (kW) |
4.80 |
|
| Running Current |
| Cool (A) |
18.90 |
| Heat (A) |
21.00 |
|
| EER/COP |
3.14 / 3.23 |
| AEER/ACOP |
3.11 / 3.21 |
| Dimensions (HxWxD) |
| Indoor (mm) |
288 x 840 x 840 |
| Outdoor (mm) |
1380 x 950 x 330 |
| Fascia (mm) |
25 x 950 x 950 |
|
| Weight |
| Indoor (kg) |
24.6 |
| Outdoor (kg) |
87.5 |
| Fascia (kg) |
6 |
|
| Refrigerant Type |
R32 |
| Pre-Charged to Pipe |
(m) |
7.5 |
| Max Pipe Length |
(m) |
85 |
| Max Level Difference |
|
| Pipe Sizes |
| Liquid (mm) |
9.52 |
| Gas (mm) |
15.88 |
|
| Drain Size |
(mm) |
OD 32 / ID 25 |
| Ambient Temperature |
| Cool (°C) |
-15 ~ 48 |
| Heat (°C) |
-18 ~ 18 |
|
| Indoor Airflow Rate |
|
| Indoor Sound Pressure Level (H/SL) |
| Cool (dBA) |
47 / 44 / 41 |
| Heat (dBA) |
47 / 44 / 41 |
|
| Outdoor Sound Pressure Level (H/SL) |
| Cool (dBA) |
52 |
| Heat (dBA) |
54 |
|
| Outdoor EPA Sound Power Level (H) |
|
| SKU |
UTN48RKIT |
| Brand |
LG |
| Shipping Weight |
118.1000kg |
