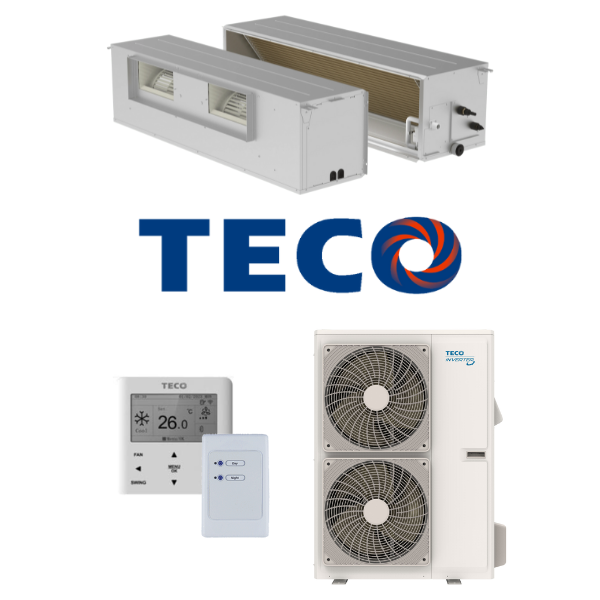

Install Package - TECO 14.0kW TDS-TSO140HVSWDG Ducted 1 Phase Air Conditioning Package (Standard)

TECO-TDS-TSO140HVSWDG-INS-SC
TECO-TDS-TSO140HVSWDG-INS-SC
TECO-TDS-TSO140HVSWDG-INS-SC
TECO-TDS-TSO140HVSWDG-INS-SC

Install Package - TECO 14.0kW TDS-TSO140HVSWDG Ducted 1 Phase Air Conditioning Package (Standard)

TDS-TSO140HVSWDG TECO Ducted Supply & Install




$12,041.00 Incl GST
$10,946.36 Excl GST
In Stock
Controller Option

Supply & Installation Package - TECO TDS-TSO140HVSWDG 14.0kW Single Phase Ducted System - 2 Zones / 8 Outlets

The TECO 14.0kW Ducted System delivers powerful and efficient climate control, making it the perfect solution for medium to large-sized homes and light commercial spaces. Its innovative splittable indoor unit design ensures easier installation and simplified maintenance, even in challenging ceiling configurations. With a maximum ESP setting of 200Pa , the system provides strong and consistent airflow to each zone, optimising comfort throughout the space. The outdoor unit Condenser coil is enhanced with a Blackfin coating that offers superior corrosion protection, while the indoor unit Evaporator coil benefits from a Goldfin coating that enhances durability and prevents coil degradation over time. An integrated drain pump facilitates flexible installation by effectively managing condensate, reducing installation complexities. Additionally, the in-built WiFi enables remote control and real-time monitoring, ensuring convenience and ease of use.

Standard Installation Inclusions:

  • Ducted Air Conditioner Installation.
  • Pricing includes an existing single story (lowset) home, adequate ceiling access.
  • Standard 2 Zone / 8 Outlet Install.
  • Outdoor unit mounted on the ground.
  • Power run up to 15m.

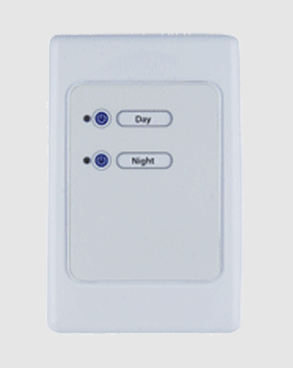

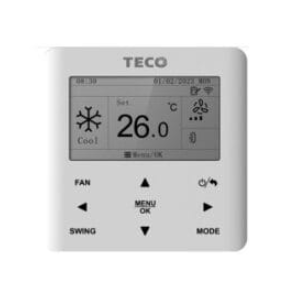

  • Choice of Controller Between the Following: Standard Wall Controller w/ Zone Switch, AirTouch 5, or iZone.

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a Standard Installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

TECO Ducted Set Features:

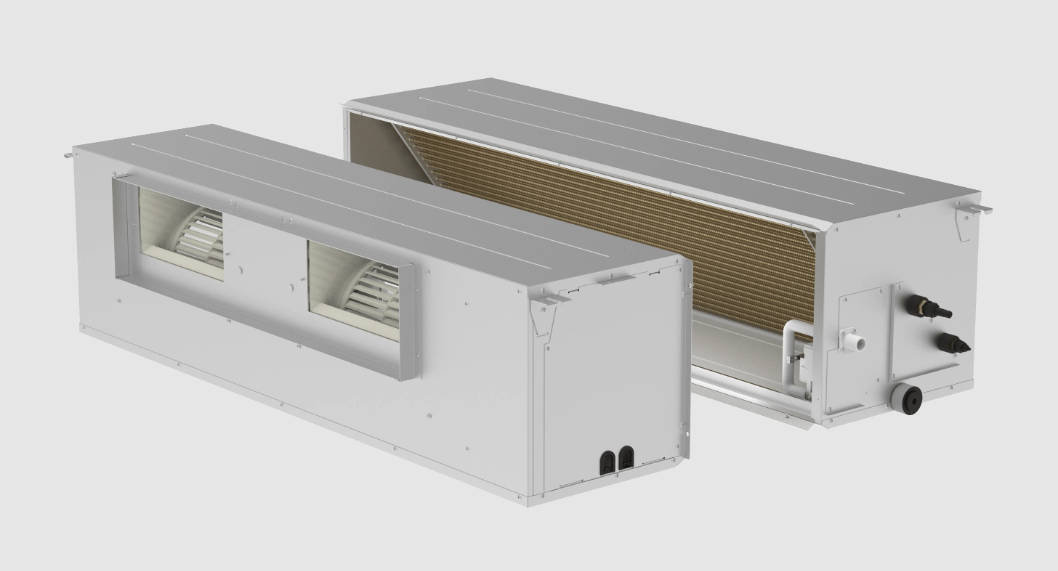

  • Splittable Indoor Unit
  • Dynamic Temperature Control
  • Plasmacluster Ion Sterilisation
  • In-Built WiFi
  • In-Built Drain Pump
  • Blackfin Coating on Outdoor Unit
  • Goldfin Coating on Indoor Unit
  • High External Static Pressure (ESP) Control
  • X-Fan Function to remove excessive moisture accumulation on shut down
  • Fresh Air Intake Control
  • Wide Voltage Range Operation
  • BMS Control Capability
  • Insect-Proof Outdoor Unit Electric Box – Sealed to ≤3mm.
  • DRED Enabled
  • Refrigerant Radiative Technology



Airtouch 5 - Australia's Smartest WiFi & App Enabled Air Conditioning Controller

Experience more comfort and enjoy greater control, all while saving energy. Enhance your air conditioning with AirTouch 5, the controller to take care of your climate control from a touch screen, phone or tablet:

Key AirTouch Features:

  • Save Energy, Save Money - With zoning, you can reduce the size of the AC unit you need and save on running costs.
  • More Convenience - Control multiple AC systems and stay informed about your home climate.
  • Better Comfort for Everyone - Your favourite temperature anywhere at home, anytime with the added benefit of app and voice control (Google Home, Amazon Alexa, Apple Home).
  • Choose from many AirTouch 5 themes to match your home
  • Efficiency and Comfort with Zoning - With AirTouch 5 you can run the air conditioning in just the rooms you are using, making them more comfortable, but also saving energy by not cooling or heating rooms no one is in.​
  • Your Control from Anywhere - Artificial Intelligence to help manage your home's comfort.
  • Geofencing and Temperature Alerts

Intelligent & Without Wastage

With Intelligent Temperature Sensor (ITS) technology, AirTouch tracks and manages temperatures throughout your home instead of in just 1 location. Add more sensors so you can enjoy more Savings, Comfort, and Control for Everyone.



Your smart home journey begins with an iZone Smart Air Conditioning System.

It starts with degree-perfect climate control and comfort in every room. With unparalleled energy efficiency and savings. And then it gets even better. Add as much – or as little – iZone Smart Home functionality as you like, whenever you want.

iZone Key Features:

  • Use your smartphone to take control of everything. Including your utility bills
  • Turns any ducted air conditioner into a smart home
  • Save Money with Automation
  • Voice Control - iZone works with Google Home, Amazon Alexa and Siri
  • Monitors your home's air quality - Breathe easy with iZone’s air quality monitoring system. It will keep a watchful eye on your home’s air, keeping tabs on humidity and CO2 and watching out for VOC nasties (volatile organic compounds).
  • In duct supply air sensor for improved efficiency and temp control
  • Temperature sensor in every touch screen controller
  • Fan auto control to maximise comfort and minimise energy consumption


Note: Images are for illustrative purposes only. Actual product may vary in appearance, specifications, or features without prior notice.

(TDS-TSO140HVSWDG-INSTALL)

System TDS-TSO100HVWDG TDS-TSO125HVSWDG TDS-TSO140HVSWDG TDS-TSO160HVSWDG TDS-TSO170HDVM
Indoor Unit TDS100HVWDG TDS125HVSWDG TDS140HVSWDG TDS160HVSWDG TDS170HDVM
Outdoor Unit TSO100HVWDG TSO125HVWDG TSO140HVWDG TSO160HVWDG TSO170HVDM
Power Supply 1 Phase, 220-240V, 50Hz
Cooling Capacity Rated/Min-Max kW 10.0 (3.0-11.7) 12.5 (3.6-14.0) 14.0 (4.2-16.0) 16.0 (4.8-18.0) 17.0 (6.8-19.5)
Heating Capacity Rated/Min-Max 12.0 (3.6-13.5) 14.0 (4.2-15.0) 16.0 (4.8-17.0) 18.0 (5.4-20.0) 17.5 (7.0-21.0
AEER/ACOP 3.7 / 4.0 3.4 / 3.8 3.5 / 3.8 3.3 / 3.8
Cooling Star Rating (Hot/Avg/Cold) 4 / 3.5 / 4 3.5 / 3 / 3 3.5 / 3 / 3.5 -
Heating Star Rating (Hot/Avg/Cold) 3 / 2.5 / 2 3.5 / 2.5 / 2 3 / 2.5 / 2 3.5 / 2.5 / 2 -
Cooling Current Input Range A 2.3 - 20.0 3.2 - 25.0 3.7 - 28.0 4.1 - 32.0 -
Heating Current Input Range 2.7 - 20.0 3.7 - 25.0 4.1 - 28.0 4.6 - 32.0 -
Standby Power Consumption W 4.0 5.1 12.5 9.8 -
Indoor Airflow Volume P-Hi/H/M/L m3/h 2100 / 1900 / 1700 / 1400 2800 / 2500 / 2200 / 1800 3200 / 2800 / 2400 / 2000 3500 / 3100 / 2700 / 2300 - / 3800 / 3200 / 2950
Indoor Sound Pressure Level H/M/L dBA 42 / 41 / 40 42 / 40 / 39 45 / 43 / 41 50 / 48 / 46 49 / 46 / 42
Outdoor Sound Pressure Level (H) 58 59 60 62
Outdoor Fan Quantity 1 2 -
Operation Range Cool/Heat C -15 to 52 / -15 to 24 -15 to 50 / -15 to 24
Refrigerant Type/Charge kg R32 / 2.2 R32 / 2.4 R32 / 2.8 R32 / 3.3 R410A / -
Connection Pipe Max Height m 30
Connection Pipe Max Length 75 65
Pipe Sizes (Liquid/Gas) mm 9.52 / 15.88 9.52 / 19.0
Indoor Unit Dimensions (HxWxD) 260 x 1340 x 655 360 x 1350 x 720 440 x 1400 x 858
Outdoor Unit Dimensions (HxWxD) 820 x 940 x 370 1260 x 900 x 340 1333 x 952 x 415
Indoor Net/Gross Weight kg 43 / 49 57 / 67 60 / 70 74 / 86
Outdoor Net/Gross Weight 67 / 79 90 / 99 97 / 106 112 / 126
SKU TDS-TSO140HVSWDG-INSTALL
Brand TECO
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Ducted System Installs.
