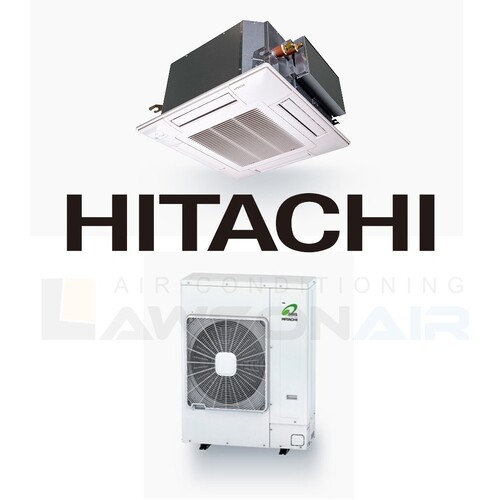

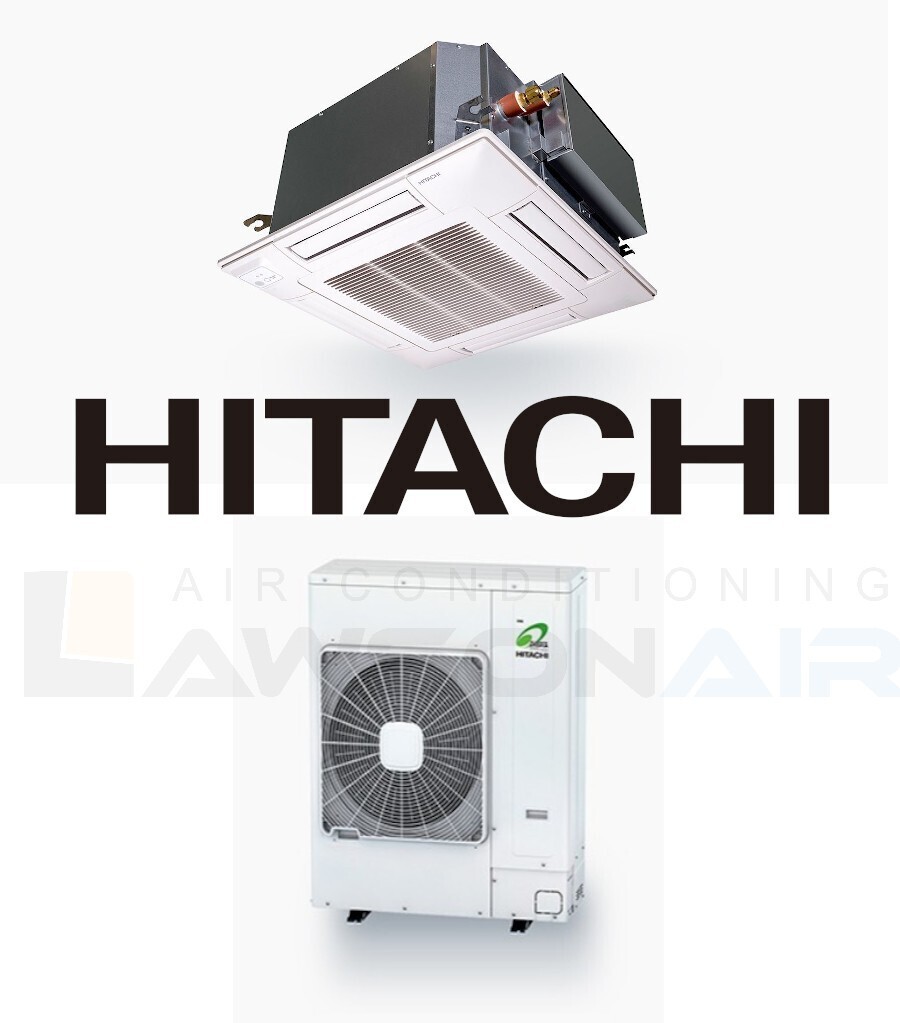

Hitachi 13.0kW RCI-6.0FSNSQKIT Cassette R410A Air Conditioning System

RCI-6.0FSN3 / RAS-6HVNC1 Hitachi Cassette R410A




$4,154.00 Incl GST
$3,776.36 Excl GST
In Stock



Hitachi RCI-6.0FSNSQKIT 13.0kW Inverter Cassette Splits - Includes Outdoor Unit RAS-6HVNC1

One of the most compact cassettes on the market 570 x 570mm. The mini cassette can be embedded within one ceiling tile total dimension with fasia panel is 620X620mm. Lights or other installations are able to be installed in the adjoining ceiling tiles.

Key Features:

  • Standard to High Ceiling Application
  • Efficienct Drain Pump
  • New Antibacterial Agent
  • Silky Flow Louver

(RCI-6.0FSNSQKIT)

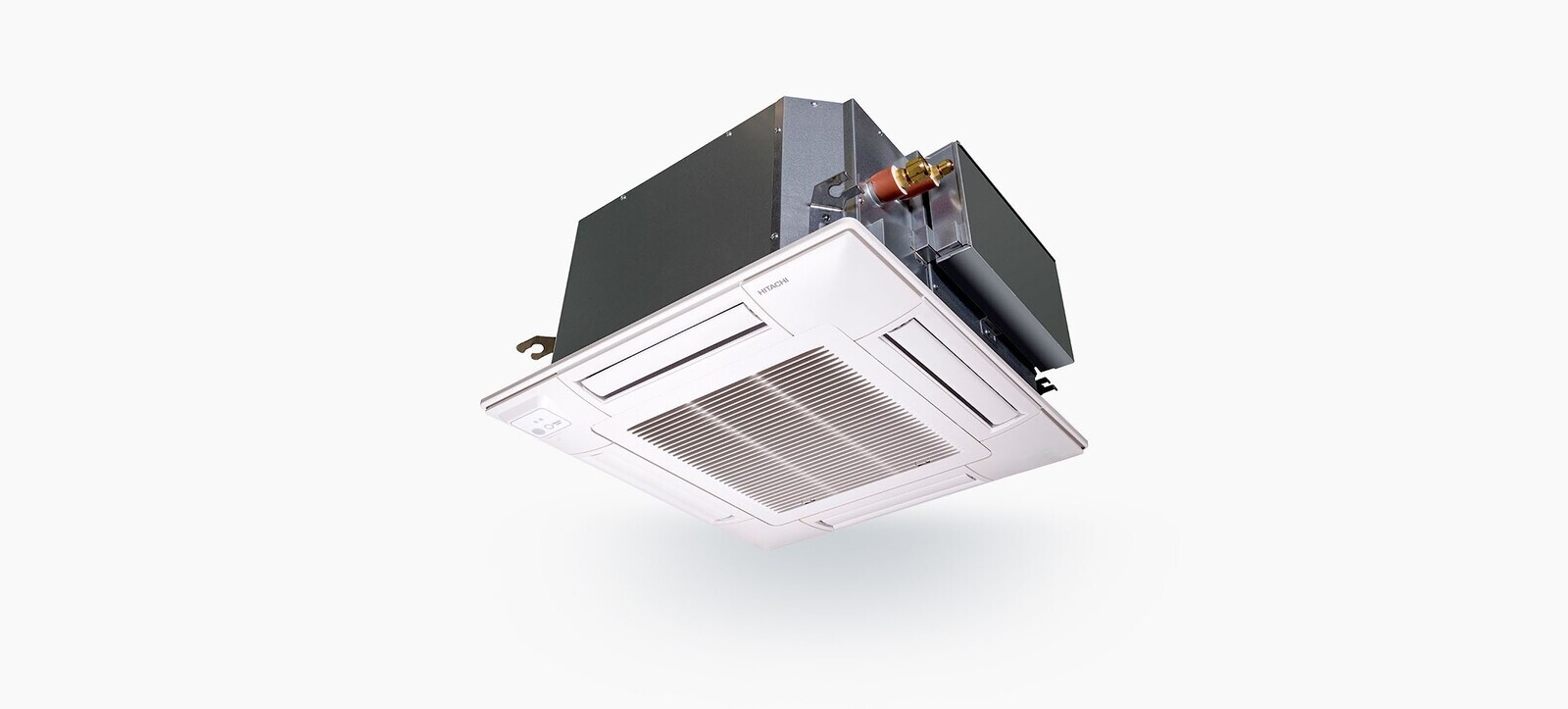

Indoor RCI-6.0FSN3

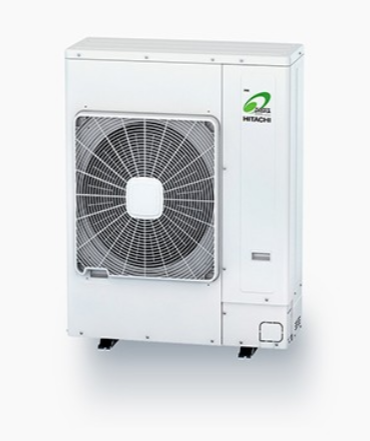

Outdoor RAS-6HVNC1
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 13.0 (6.0 - 16.0)
Working Range °C -5 to 46
Efficiency - Rated  W/W 3.15
Heating Capacity - Rated (Range) kW 16.0 (5.0 - 20.0)
Working Range °C -20 to 15
Efficiency - Rated  W/W 3.61
Indoor Unit Dimensions (WxDxH) mm 298 x 840 x 840
Net Weight kg 26.0
Cooling airflow (H/M/L/SL) L/s 617 / 583 / 467 / 367
Cooling Sound Pressure (UHi / Hi / Med / Lo / Sleep) dBA(@spl) 48 / 46 / 41 / 37
Outdoor Dimensions (WxDxH) mm 1140 x 950 x 370
Net Weight kg 89.0
Compressor Type  -  -
Fan Motor Output W -
Cooling Sound Pressure dBA(@spl) 55
Heating Sound Pressure dBA(@spl) 57
Night Sound Pressure dBA(@spl) 53
Pipe Size Pipe Sizes mm 9.52 / 15.88
Coupler Style  -  -
Minimum Length m -
Maximum Length m 75
Pre Charge Length m 30
Additional Refrigerant g / m -
Lift m 30
SKU RCI-6.0FSNSQKIT
Brand Hitachi
Shipping Weight 115.0000kg
