Hitachi RCI-5.0FSNSQKIT 12.5kW Inverter R410A Cassette Splits
RCI-5.0FSN3/RAS-5HVNC1 4-Way Cassette Split System
$3,650.00 Incl GST
$3,318.18 Excl GST
In Stock
$3,318.18 Excl GST
.jpg)

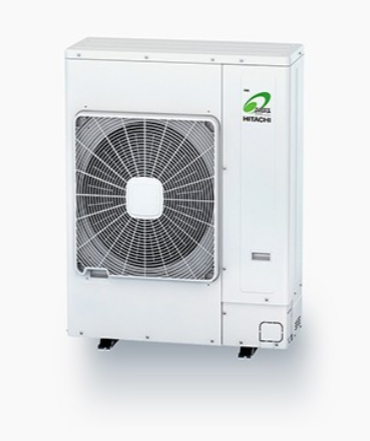

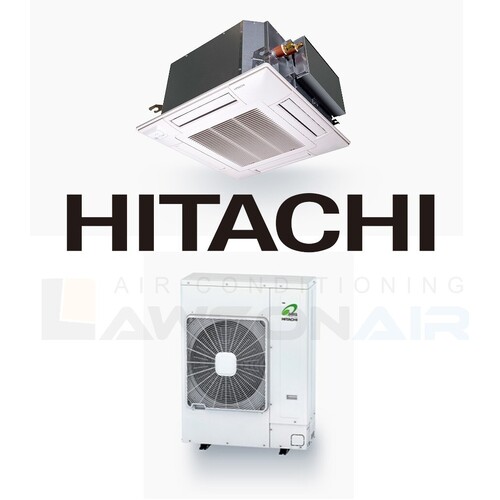

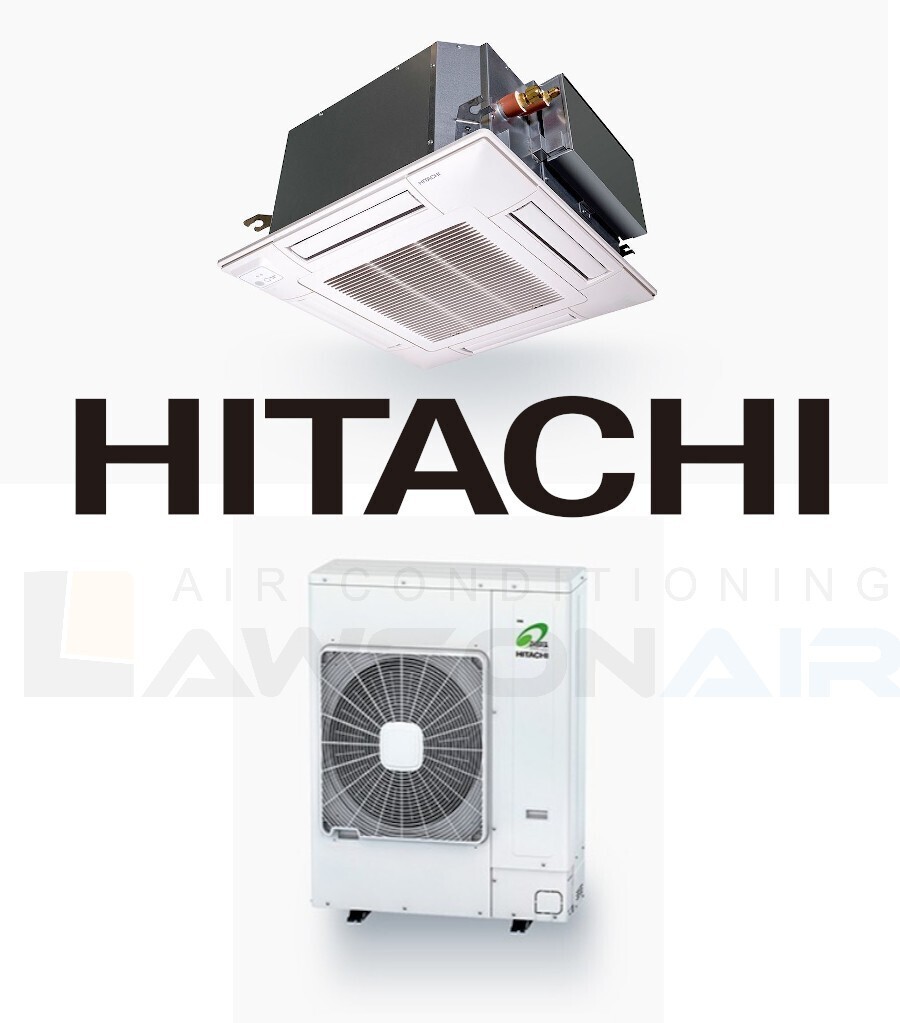

Hitachi RCI-5.0FSNSQKIT 12.5kW Inverter Cassette Splits - Includes Outdoor Unit RAS-5HVNC1

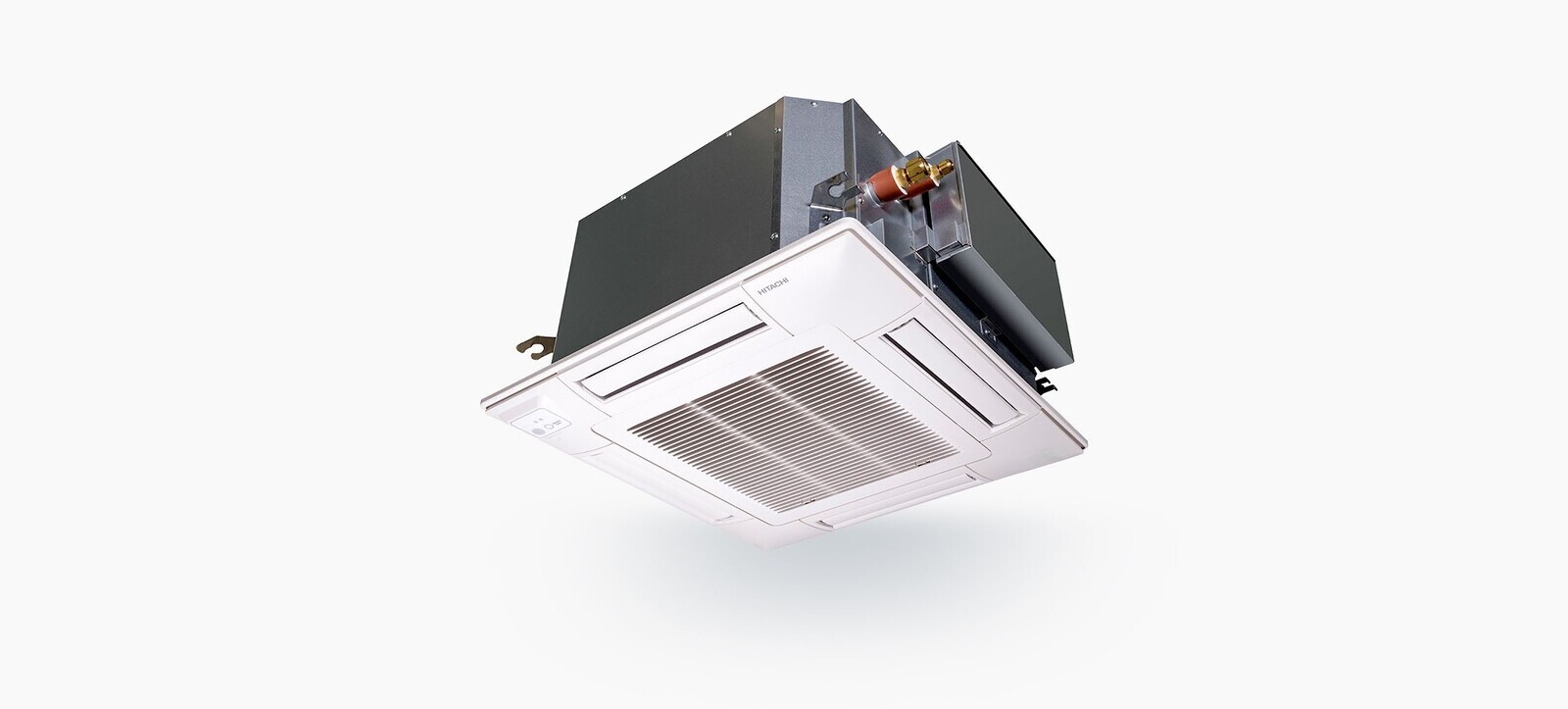

One of the most compact cassettes on the market 570 x 570mm. The mini cassette can be embedded within one ceiling tile total dimension with fasia panel is 620X620mm. Lights or other installations are able to be installed in the adjoining ceiling tiles.
Key Features:
- Standard to High Ceiling Application
- Efficienct Drain Pump
- New Antibacterial Agent
- Silky Flow Louver
(RCI-5.0FSNSQKIT)
| Indoor | RCI-5.0FSN3 | ||
| Outdoor | RAS-5HVNC1 | ||
| Refrigerant Type | R410A | ||
| Power Supply (Volts - Phase - Hz) | 220-240 / 1 / 50 | ||
| Cooling | Capacity - Rated (Range) | kW | 12.5 (5.7 - 14.0) |
| Working Range | °C | -5 to 46 | |
| Efficiency - Rated | W/W | 3.29 | |
| Heating | Capacity - Rated (Range) | kW | 14.0 (5.0 - 18.0) |
| Working Range | °C | -20 to 15 | |
| Efficiency - Rated | W/W | 3.84 | |
| Indoor Unit | Dimensions (WxDxH) | mm | 298 x 840 x 840 |
| Net Weight | kg | 26.0 | |
| Cooling airflow (H/M/L/SL) | L/s | 617 / 550 / 443 / 350 | |
| Cooling Sound Pressure (UHi / Hi / Med / Lo / Sleep) | dBA(@spl) | 48 / 45 / 40 / 35 | |
| Outdoor | Dimensions (WxDxH) | mm | 1140 x 950 x 370 |
| Net Weight | kg | 89.0 | |
| Compressor Type | - | - | |
| Fan Motor Output | W | - | |
| Cooling Sound Pressure | dBA(@spl) | 52 | |
| Heating Sound Pressure | dBA(@spl) | 54 | |
| Night Sound Pressure | dBA(@spl) | 50 | |
| Pipe Size | Pipe Sizes | mm | 9.52 / 15.88 |
| Coupler Style | - | - | |
| Minimum Length | m | - | |
| Maximum Length | m | 75 | |
| Pre Charge Length | m | 30 | |
| Additional Refrigerant | g / m | - | |
| Lift | m | 30 | |
| SKU | RCI-5.0FSNSQKIT |
| Brand | Hitachi |
| Shipping Weight | 115.0000kg |
