Hitachi RCI-3.0FSNSQKIT 7.1kW Inverter R410A Cassette Splits

RCI-3.0FSN3/RAS-3HVNC 4-Way Cassette Split System




$3,138.00 Incl GST
$2,852.73 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

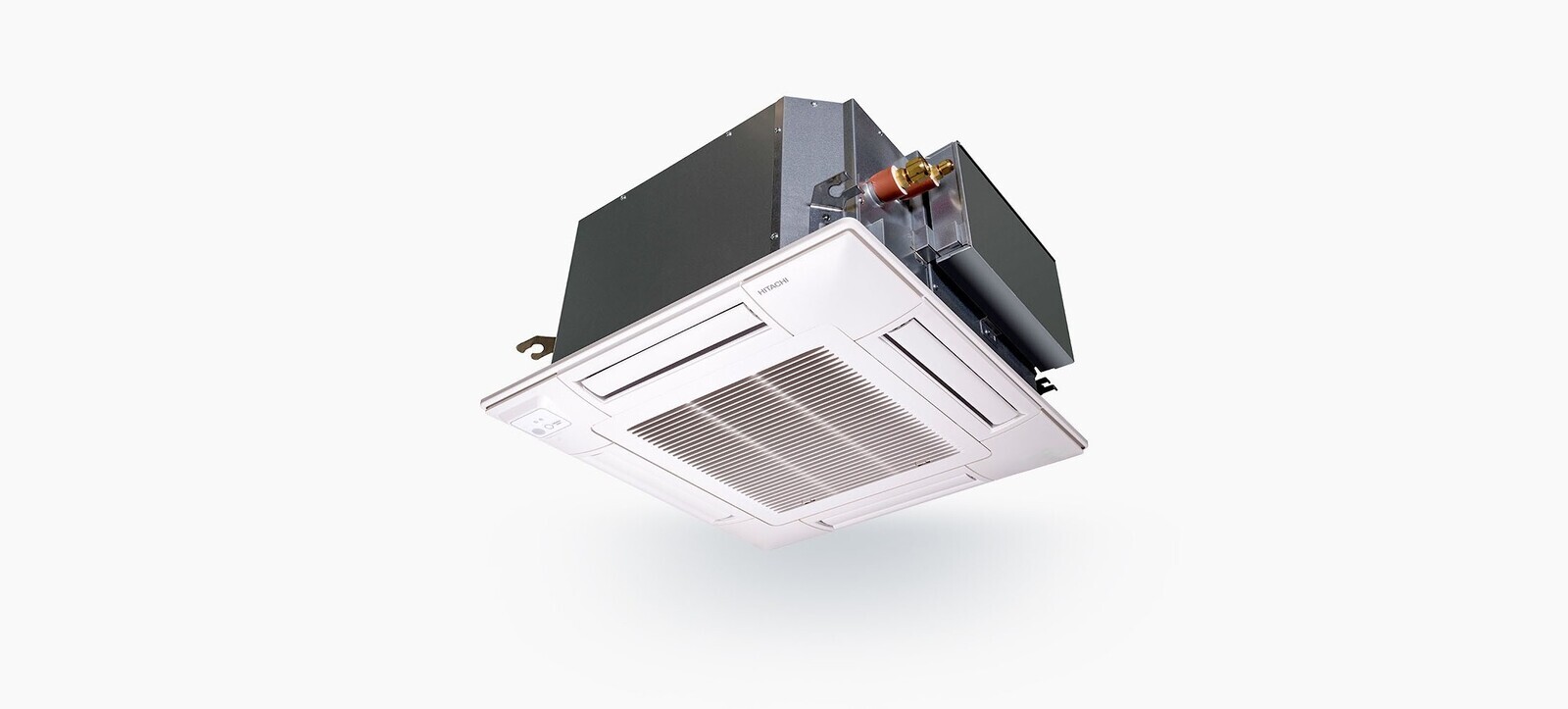

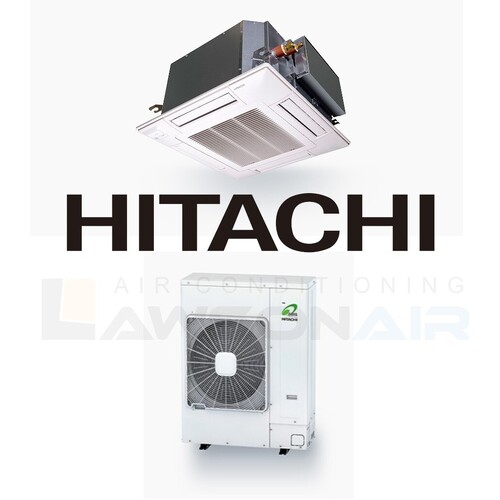

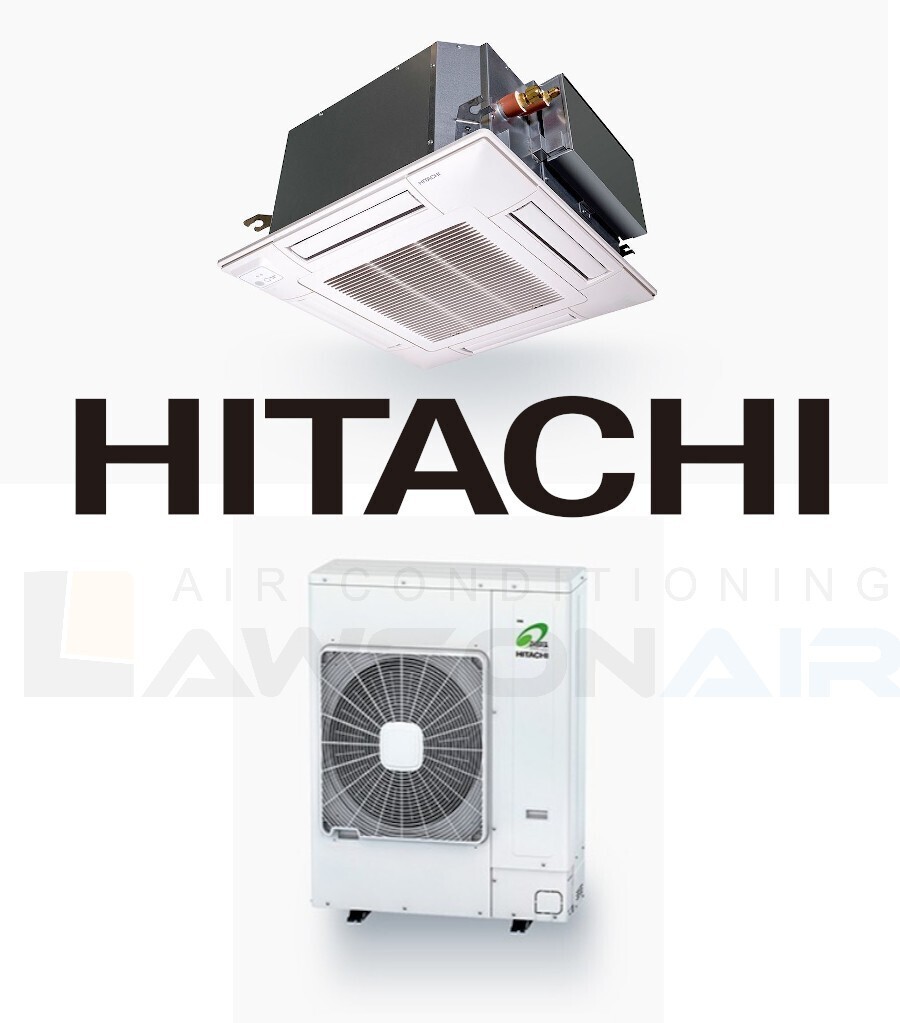

Hitachi RCI-3.0FSNSQKIT 7.1kW Inverter Cassette Splits - Includes Outdoor Unit RAS-3HVNC

One of the most compact cassettes on the market 570 x 570mm. The mini cassette can be embedded within one ceiling tile total dimension with fasia panel is 620X620mm. Lights or other installations are able to be installed in the adjoining ceiling tiles.

Key Features:

  • Standard to High Ceiling Application
  • Efficienct Drain Pump
  • New Antibacterial Agent
  • Silky Flow Louver

(RCI-3.0FSNSQKIT)

Indoor RCI-3.0FSN3

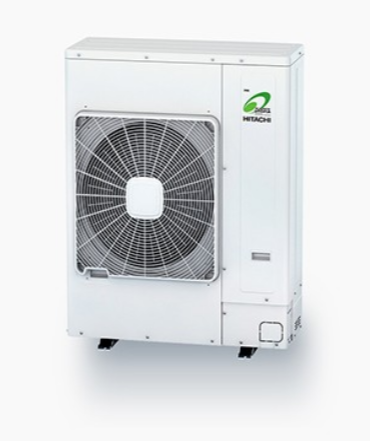

Outdoor RAS-3HVNC
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 7.1 (3.2 - 8.0)
Working Range °C -5 to 46
Efficiency - Rated  W/W 3.48
Heating Capacity - Rated (Range) kW 8.0 (3.5 - 10.6)
Working Range °C -20 to 15
Efficiency - Rated  W/W 3.61
Indoor Unit Dimensions (WxDxH) mm 298 x 840 x 840
Net Weight kg 26.0
Cooling airflow (H/M/L/SL) L/s 450 / 383 / 300 / 233
Cooling Sound Pressure (UHi / Hi / Med / Lo / Sleep) dBA(@spl) 42 / 36 / 32 / 28
Outdoor Dimensions (WxDxH) mm 600 x 792 x 300
Net Weight kg 44.0
Compressor Type  -  -
Fan Motor Output W -
Cooling Sound Pressure dBA(@spl) 48
Heating Sound Pressure dBA(@spl) 50
Night Sound Pressure dBA(@spl) 46
Pipe Size Pipe Sizes mm 9.52 / 15.88
Coupler Style  -  -
Minimum Length m -
Maximum Length m 50
Pre Charge Length m 20
Additional Refrigerant g / m -
Lift m 30
SKU RCI-3.0FSNSQKIT
Brand Hitachi
Shipping Weight 70.0000kg
Shipping Cubic 0.352829000m3
