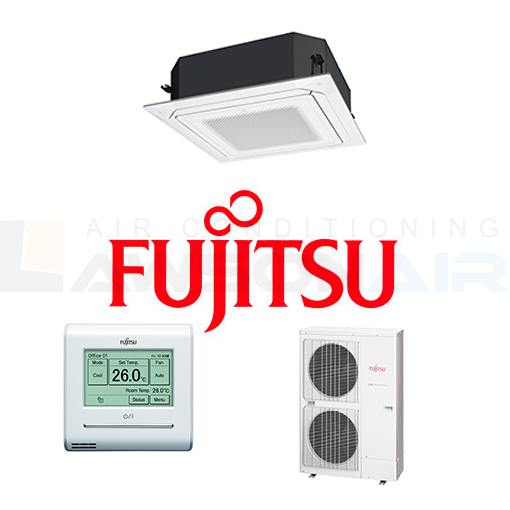

Fujitsu 13.0kW SET-AUTG54KRLA 4-Way Cassette Air Conditioning System
AUTG54KRLA / AOTG54KBTA Fujitsu Cassette
$6,366.00 Incl GST
$5,787.27 Excl GST
In Stock
$5,787.27 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

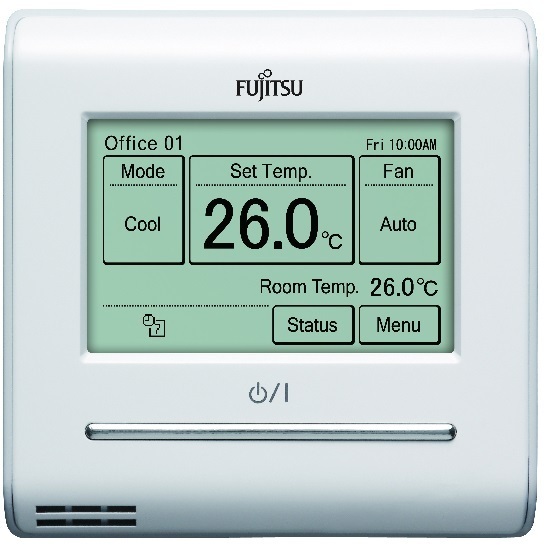

Fujitsu AUTG54KRLA 13.0kW 4-way Cassette - Includes Wired Controller & Outdoor Unit AOTG54KBTA
(SET-AUTG54KRLA)

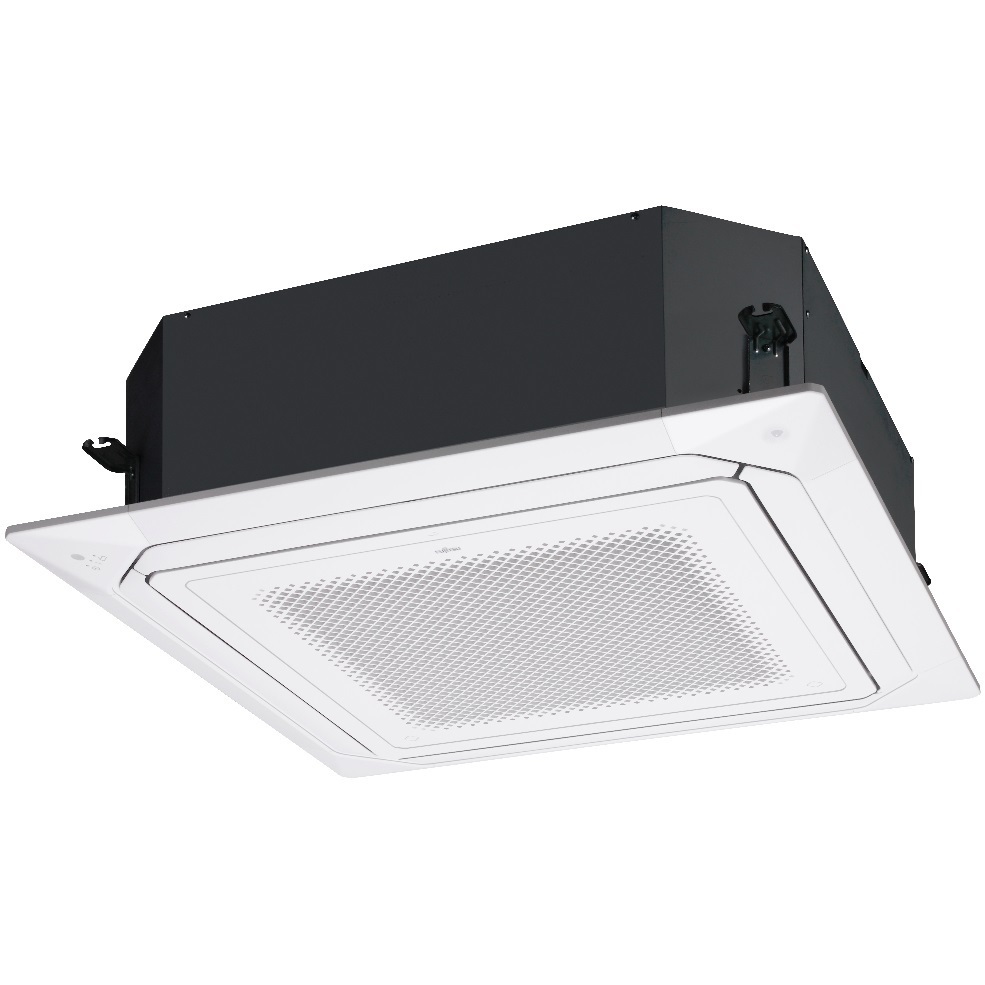

Indoor | AUTG54KRLA | ||

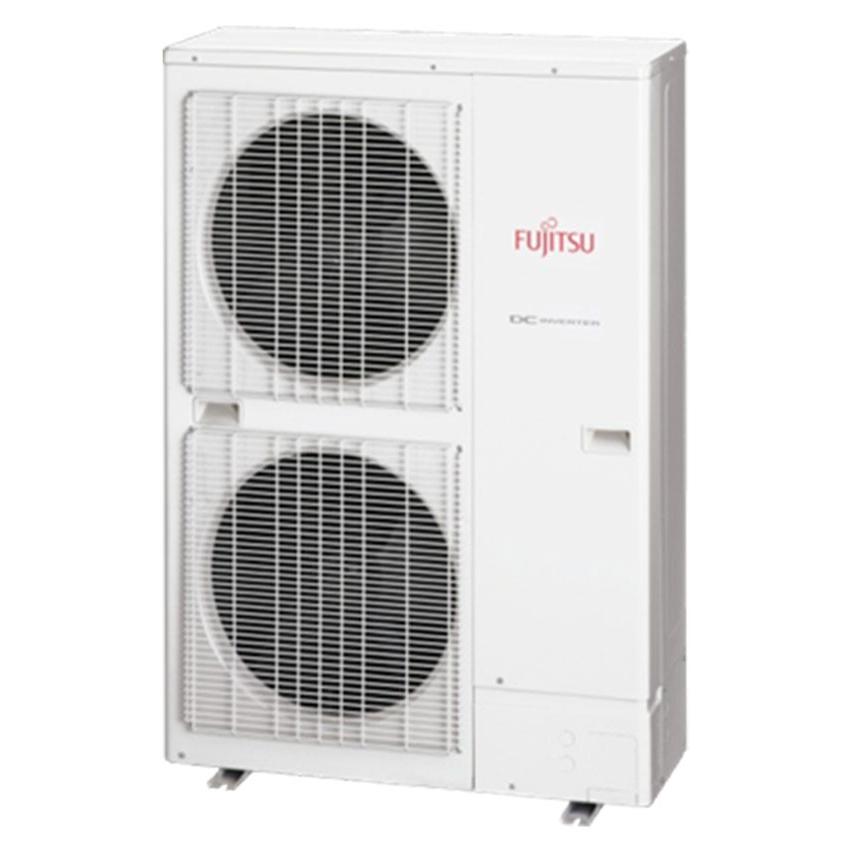

Outdoor | AOTG54KBTA | ||
Power Source | V / ø / Hz | 240 / 1 / 50 | |
Capacity | Cooling - Rated (min - Max) | kW | 13.0 (4.50 - 14.50) |
Heating - Rated (min - Max) | kW | 16.00 (4.70 - 16.50) | |
Input | Cooling - Rated / Max | kW | 4.04 / 4.87 |
Heating - Rated / Max | kW | 4.23 / 4.87 | |
Efficiency Ratings | Cooling | EER | 3.22 |
AEER | 3.20 | ||
Heating | COP | 3.78 | |
ACOP | 3.76 | ||
Star Rating | Cooling | 1.5 | |
Heating | 3.0 | ||
Running Current | Cooling - Rated / Max | Amps | 16.9 / 20.5 |
Heating - Rated / Max | Amps | 16.9 / 20.5 | |
Moisture Removal | l / h | 5.0 | |
Indoor Noise - High | Sound Pressure | dBA | 45 |
Outdoor Noise - High | Sound Pressure | dBA | 50 |
Outdoor Noise - High | Sound Power | dBA | 68 |
Airflow - High (Cool) | Indoor / Outdoor | L / sec | 542 / 1556 |
Net Weight and Dimensions - H x W x D | Indoor | mm | 288 x 840 x 840 |
kg | 30 | ||
Grille | mm | 53 x 950 x 950 | |
kg | 6 | ||
Outdoor Unit | mm | 1290 x 900 x 330 | |
kg | 87 | ||
Pipe Size | Liquid / Suction | mm | ø9.52 / ø15.88 |
Max Pipe Length (Pre-Charged Length) | m | 75 / 30 | |
Max Pipe Height | m | 30 | |
Operation Range | Cooling | °CDB | -15 to 46 |
Heating | °CDB | -20 to 24 | |
Refrigerant | R32 | ||
Grille | UTG-UKTA-W |
SKU | SET-AUTG54KRLA |
Brand | Fujitsu |
Shipping Weight | 123.0000kg |
