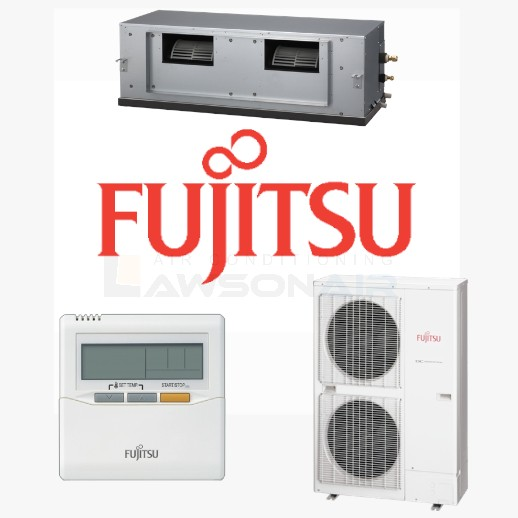

Fujitsu 12.5 kW ARTG45LHTB Three Phase Ducted System

ARTG45LHTB/AOTG45LATT Ducted Air Conditioner




$5,226.00 Incl GST
$4,750.91 Excl GST
In Stock

Fujitsu 12.5 kW ARTG45LHTB Three Phase Ducted System - Includes Outdoor Unit AOTG45LATT

Ducted air conditioning with Zone Control capabilities allows for different zones (areas) to be set up in your home. The system adjusts airflow through dampers to control the air conditioning of the zones to reach the desired temperature.

Features:

  • Optional zone control allowing for 8 zones to be connected, giving greater temperature control to meet individual needs.
  • With built in features such as DC fan motors, DC rotary compressors, and built in programmable timers, these systems use less power than ever before.
  • Fujitsu General offers a full five year parts and labour warranty on its entire range, so you can rest assured that your air conditioner will perform.



(SET-ARTG45LHTB)

Indoor Unit ARTG45LHTB

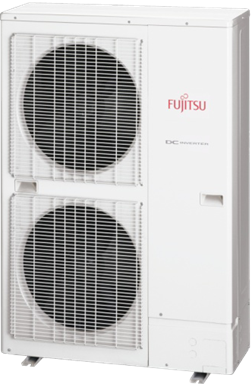

Outdoor Unit AOTG45LATT
Operation Type   Reverse Cycle
 Power Source V/Ph/HZ 415 / 3 / 50
    Cooling Heating
 Capacity kW 12.5 (5.7 - 14.0) 14.0 (6.0 - 16.2)
 Input Power kW 3.82 (Max 6.37) 3.67 (Max 6.37)
 EER/COP kW/kW 3.27 3.81
 Star Rating   - -
 Running Current Cooling/Heating Amps 5.5 / 5.3
 Moisture Removal L/Hr 1.0
 Noise Level Indoor Sound Pressure (High/Quiet) dBA 43
Outdoor Sound Pressure dBA 54
Outdoor Sound Power dBA 68
 Air Circulation (Indoor - High Fan) I/sec 903
 Net DimensionsiHxWxD Indoor Unit mm 425 x 1250 x 490
kgs 54
Outdoor Unit mm 1290 x 900 x 330
kgs 104
 Piping Connections (Liquid/Suction) mm Ø 9.52 / Ø 15.88
 Max. Pipe Length (Precharged Length) m 75 / 30
 Max height Difference m 30
 Operation Range °CDB Cooling: -15 to 46, Heating: -15 to 24
Refrigerant    R410A
SKU SET-ARTG45LHTB
Brand Fujitsu
Shipping Weight 158.0000kg
Shipping Cubic 0.643443000m3
