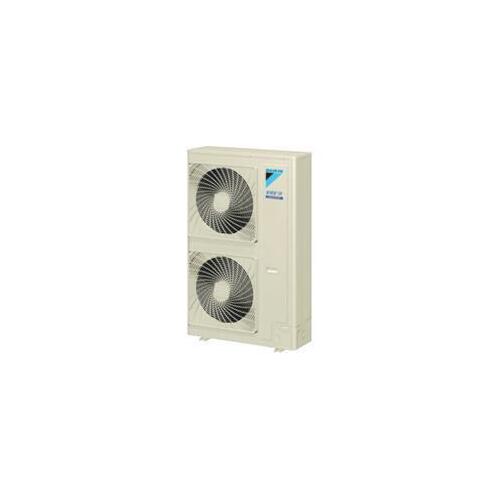

Daikin VRV IV-S RXYMQ9AY1 24.0kW multi outdoor unit
RXYMQ9AY1 24.0kW
$11,453.00
In Stock
.PNG)
(IV-SRXYMQ9AY1)
| MODEL | RXYMQ9AY1 | ||
| Power Supply | 3-phase, 380-415 V, 50 Hz | ||
| Cooling Capacity | kcal/h | 20,600 | |
| Btu/h | 81,900 | ||
| kW | 24 | ||
| Heating Capacity | kcal/h | 22,400 | |
| Btu/h | 88,700 | ||
| kW | 26 | ||
| Power Consumption | Cooling | kW | 6.88 |
| Heating | 6.82 | ||
| Capacity Control | % | 20 to 100 | |
| Casing Colour | Ivory white (5Y7.5/1) | ||
| Compressor | Type | Hermetically sealed scroll type | |
| Motor Output | kW | 4.8 | |
| Airflow Rate | l/s | 2,333 | |
| mᶟ/min | 140 | ||
| Dimensions (HxWxD) | mm | 1,430 x 940 x 320 | |
| Machine Weight | kg | 138 | |
| Sound level (Cooling/Heating) | dB(A) | 58/59 | |
| Sound power | dB(A) | 76 | |
| Operation Range | Cooling | °CDB | -5 to 46 |
| Heating | °CWB | -20 to 15.5 | |
| Refrigerant | Type | R-410A | |
| Charge | kg | 5.8 | |
| Piping connections | Liquid | mm | ø9.5 (Brazing) |
| Gas | ø22.2 (Brazing) | ||
| Connectable Units | Up to 14 | ||
| SKU | IV-SRXYMQ9AY1 |
| Brand | Daikin |
| Shipping Weight | 138.0000kg |
| Shipping Width | 1.430m |
| Shipping Height | 0.320m |
| Shipping Length | 0.940m |
| Shipping Cubic | 0.430144m3 |
