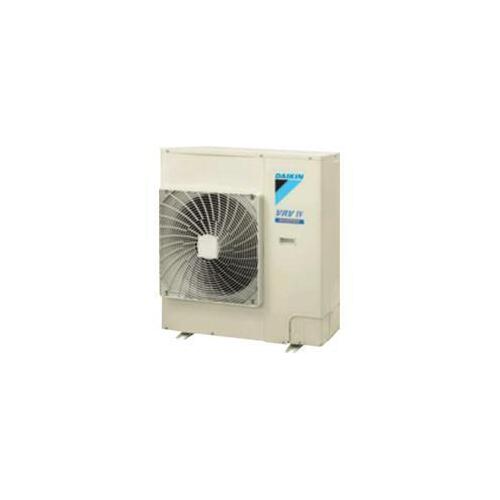

Daikin VRV IV-S RXYMQ5AV4A 14.0kW multi outdoor unit
RXYMQ5AV4A 14.0kW
$7,664.00
In Stock
.PNG)
(IV-SRXYMQ5AV4A)
| MODEL | RXYMQ5AV4A | ||
| Power Supply | 1-phase, 230-240 V, 50 Hz | ||
| Cooling Capacity | kcal/h | 12,000 | |
| Btu/h | 47,800 | ||
| kW | 14 | ||
| Heating Capacity | kcal/h | 12,000 | |
| Btu/h | 47,800 | ||
| kW | 14 | ||
| Power Consumption | Cooling | kW | 3.93 |
| Heating | 3.04 | ||
| Capacity Control | % | 16 to 100 | |
| Casing Colour | Ivory white (5Y7.5/1) | ||
| Compressor | Type | Hermetically sealed swing type | |
| Motor Output | kW | 3 | |
| Airflow Rate | l/s | 1,267 | |
| mᶟ/min | 76 | ||
| Dimensions (HxWxD) | mm | 990 x 940 x 320 | |
| Machine Weight | kg | 82 | |
| Sound level (Cooling/Heating) | dB(A) | 53/54 | |
| Sound power | dB(A) | 71 | |
| Operation Range | Cooling | °CDB | -5 to 46 |
| Heating | °CWB | -20 to 15.5 | |
| Refrigerant | Type | R-410A | |
| Charge | kg | 3.4 | |
| Piping connections | Liquid | mm | ø9.5 (Flare) |
| Gas | ø15.9 (Flare) | ||
| Connectable Units | Up to 8 | ||
| SKU | IV-SRXYMQ5AV4A |
| Brand | Daikin |
| Shipping Weight | 82.0000kg |
| Shipping Width | 0.990m |
| Shipping Height | 0.320m |
| Shipping Length | 0.940m |
| Shipping Cubic | 0.297792m3 |
