Daikin FFA35A2-L3 3.4kW Compact Cassette

FFA35A2VEB/RXS35L3V1B Compact Cassette Air Conditioner




$1,916.00 Incl GST
$1,741.82 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

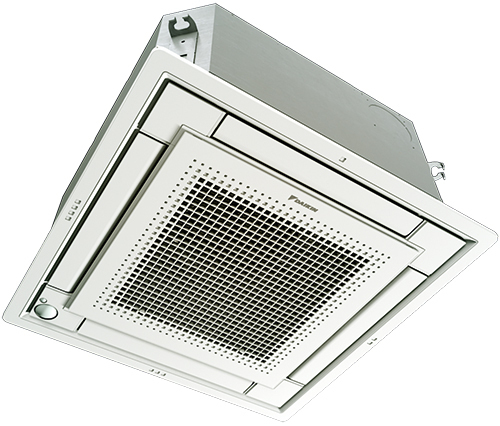

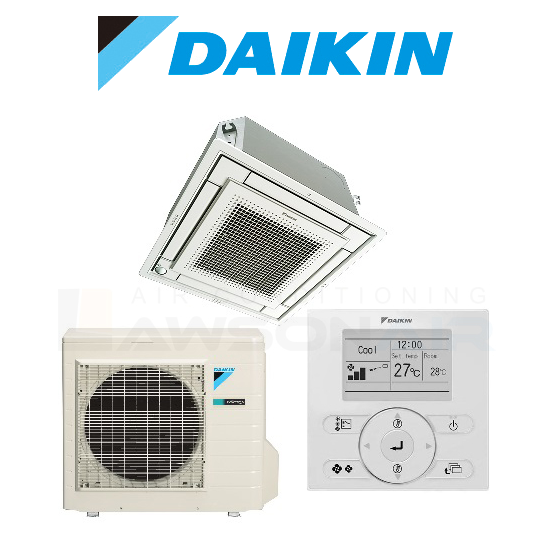

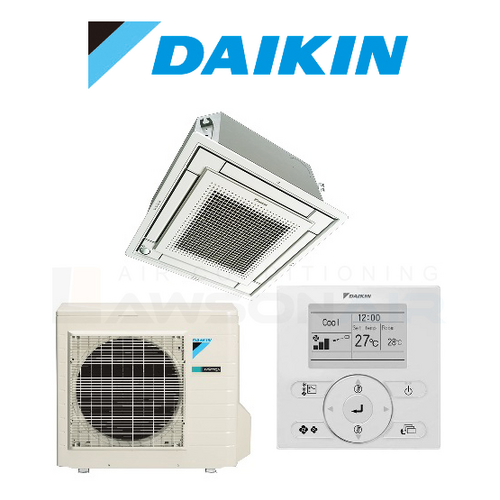

Daikin FFA35A2-L3 3.4kW Compact Cassette & Outdoor Unit RXS35L3V1B

Daikin’s Fully Flat Cassette is a powerful, efficient and discreet solution for commercial, retail and residential applications where both aesthetics and performance are paramount. The Fully Flat Cassette combines the latest technology with innovative functions for high operating efficiency and user comfort, all within a unique design that allows the visible panel to fit flush within standard architectural ceiling panels. The Fully Flat Cassette is a unique iconic design with an elegant white finish with a white decoration panel. The cassette blends in, resulting in a fully discreet unit.

Features:

  • Integrates seamlessly into a 600x600mm ceiling tile
  • Optional presence and floor temperature sensor
  • Whisper quiet operations

(FFA35A2-L3)

System FFA35A2-L3
Indoor FFA35A2VEB

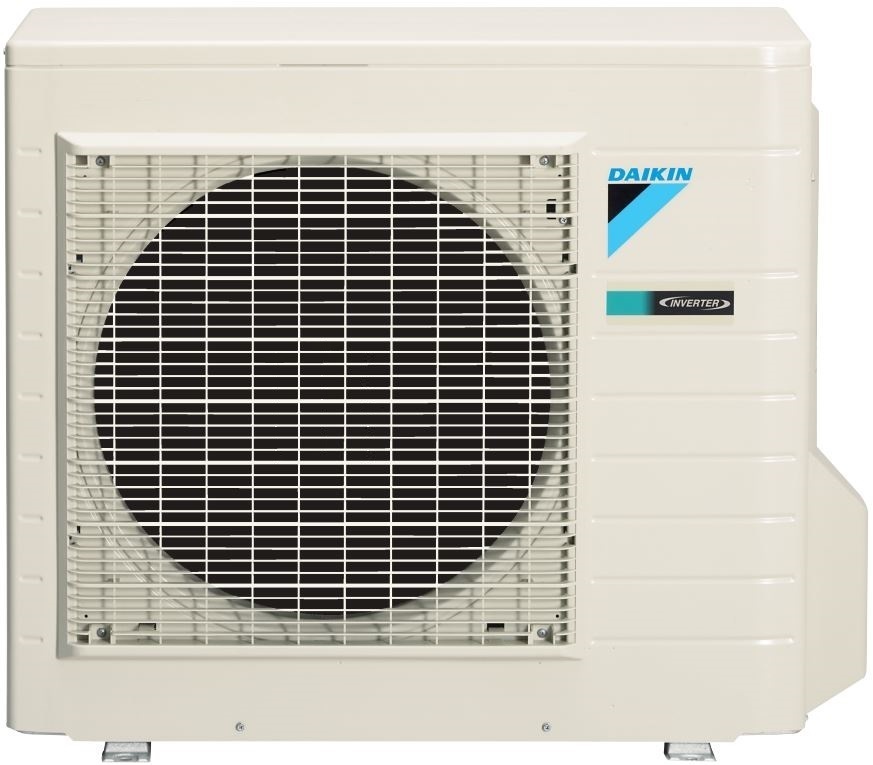

Outdoor RXS35L3V1B
Fascia BYFQ60C2W1W
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz) V / ø / Hz 220 - 240 / 1 / 50
Cooling Capacity - Rated kW 3.4
Capacity - Range (min - max) kW 1.4 - 4.0
Efficiency - Rated EER 3.70
Star Rating   -
Power Input - Rated kW 0.92
Operating Current - Rated A -
Heating Capacity - Rated kW 4.2
Capacity - Range kW 1.3 - 5.1
Efficiency - Rated COP 3.50
Star Rating   -
Power Input - Rated kW 1.20
Operating Current - Rated A -
Indoor Unit Dimensions - WxDxH (Body) mm 260 x 575 x 575
Dimensions - WxDxH (Fascia) mm 46 x 620 x 620
Net Weight - Body / Panel kg 16 / 2.8
Airflow Volume (H/M/L) L / s 167 / 142 / 108
Heating Airflow Volume (H/L) L / s -
Moisture Removal (Cooling) L/hr -
Fan Motor Output W -
Sound Pressure (H/M/L)  dBA 34 / 30.5 / 25
Sound Power (H) dBA -
Heating Operating Noise (Sound Pressure) (H/L) at 1.4m distance dBA (@spl) 34 / 30.5 / 25
Heating Operating Noise (Sound Power) (H) dBA (@swl) -
Cooling Usable Temperature Range °C 10 - 46
Heating Usable Temperature Range °C 15 - 18
Outdoor Dimensions (HxWxD) mm 550 x 765 x 285
Net Weight - Body / Panel kg 34
Compressor Type

Hermetically Sealed
Swing Type

Fan Motor Output W -
Cooling Operating Noise (Sound Pressure) (H / SL) at 1m distance dBA (@spl) 48 / 44
Cooling Operating Noise (Sound Power) (H) dBA (@swl) 61
Heating Operating Noise (Sound Pressure) (H / SL) at 1m distance dBA (@spl) 48 / 45
Heating Operating Noise (Sound Power) (H) dBA (@swl) 61
Cooling Usable Temperature Range DB -10 ~ 46
Heating Usable Temperature Range WB -15 ~ 18
Pipe Size Liquid Line ø (mm) 6.4
Gas Line ø (mm) 9.5
Coupler Style   -
Drain (Inside Diameter) ø mm 20
Maximum Length m 20
Maximum Height Difference m 15
SKU FFA35A2-L3
Brand Daikin
Shipping Weight 52.8000kg
Shipping Width 0.286m
Shipping Height 0.575m
Shipping Length 0.575m
Shipping Cubic 0.382700000m3
