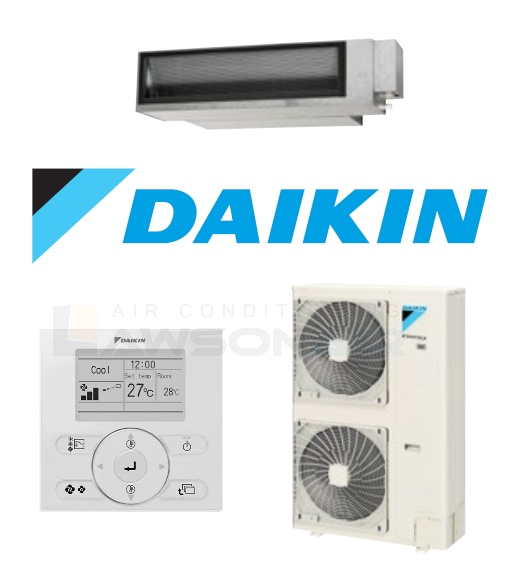

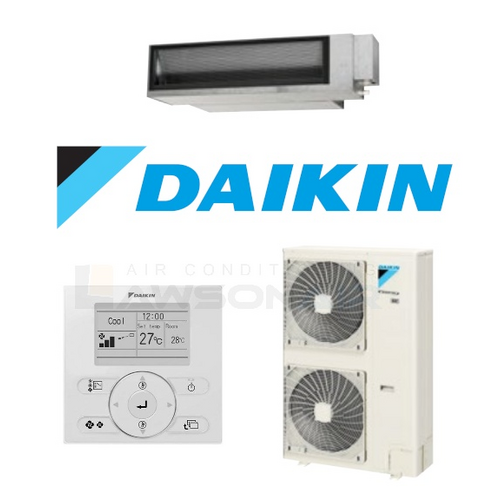

Daikin FDYAN140 14.0kW 1 Phase Ducted Unit

FDYAN140AV1/RZA140CV1 Standard Ducted Air Conditioner




$4,790.00 Incl GST
$4,354.55 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.



Daikin FDYAN140 14.0kW 1 Phase Ducted Unit  -  Includes BRC1E63 Wired Controller

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.



Features:

  • Heating or cooling your entire home
  • Small to large houses
  • Houses with limited roof space and outdoor space


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYAN140A-CV)

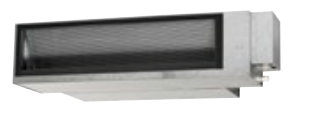

INDOOR UNIT FDYAN140AV1

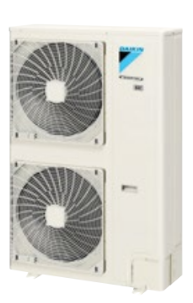

OUTDOOR UNIT RZA140CV1
Rated Capacity Cool (kW) 14.0
Heat (kW) 16.5
Capacity Range Cool (kW) 5.0-16.0
Heat (kW) 5.1-18.0
Power Input (Rated) Cool (kW) 4.30
Heat (kW) 4.50
E.E.R./C.O.P. Cool/Heat 3.26/3.67
Air Flow Rate (Rated) I/S 900
Indoor Sound Level (@1.5m) dBA 46.6/47.9
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 1430x940x320
Weight Indoor(kg) 55
Outdoor(kg) 93
Power Supply V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 245x1152
Return Air Opening mm (Oval) 2x400 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 73
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 54/56
SKU FDYAN140A-CV
Brand Daikin
Shipping Weight 148.0000kg
Shipping Cubic 0.941776000m3
