Daikin FAA85B-VCV 8.5kW Wall Mounted Split System
FAA85BVMA/RZAV85CV1 Commercial Air Conditioner
$4,331.00 Incl GST
$3,937.27 Excl GST
Sold Out
$3,937.27 Excl GST

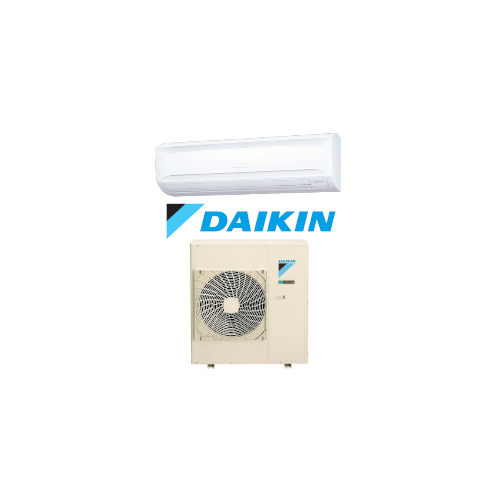

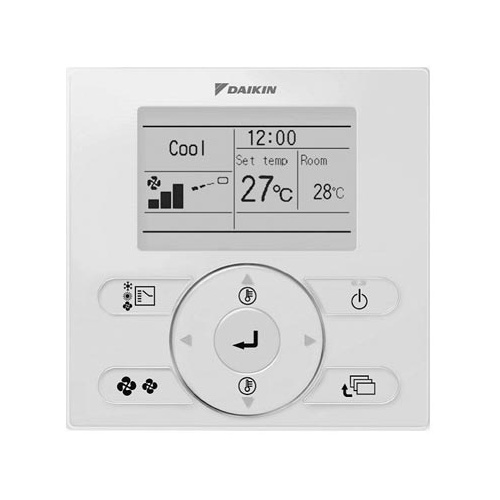

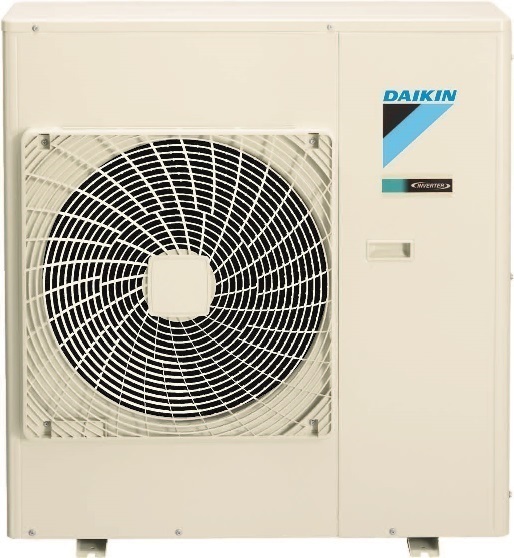

Daikin FAA85B-VCV 8.5kW Wall Mounted Split System - Includes BRC1E63 Wired Controller & Outdoor Unit RZAV85CV1
A sophisticated wall mounted unit with wide angle airflow and long air throw for greater comfort even on the far side of the room. Optional fixed controller BRC1E63.
Features:
- Vertical auto-swing with 5-stem airflow direction
- Extra high fan speed setting for increased reach
- R22 retrofit technology
(FAA85B-VCV)
Indoor Unit | FAA85BVMA | |||||||
Outdoor Unit | RZAV85CV1 | |||||||
Power Supply | ø / V / Hz | 1 Phase, 220-240V, 50 Hz | ||||||
Cooling Capacity | Rated (Min - Max) | kW | 8.5 (4.0 - 10.0) | |||||
Heating Capacity | Rated (Min - Max) | kW | 10.0 (4.1 - 11.2) | |||||
Power Consumption | Cooling | kW | 2.59 | |||||
Heating | kW | 3.01 | ||||||
Enery Efficiency | EER | kW | 3.28 | |||||
COP | kW | 3.32 | ||||||
Indoor Unit | Colour | Unit | - | |||||
Decoration Panel | Fresh White | |||||||
Airflow Rate (H / M / L) | L/s | 433 / 383 / 317 | ||||||
m³/min | 26.0 / 23.0 / 19.0 | |||||||
Sound Pressure Level (H / HM / M / ML / L) | dB(A) | 49.0 / 45.0 / 41.0 | ||||||
Dimensions (HxWxD) | Unit | mm | 340 x 1200 x 240 | |||||
Machine Weight | Unit | kg | 17 | |||||
Certified Operation Range | Cooling | °CWB | 14 to 25 | |||||
Heating | °CDB | 15 to 27 | ||||||
Outdoor Unit | Colour | Ivory white | ||||||
Compresser | Type | Hermetically sealed swing type | ||||||
Motor output | kW | 3.3 | ||||||
Refrigerant Charge (R410a) | kg | 2.90 (charged for 30m) | ||||||
Sound Level | Cooling / Heating | dB(A) | 52 / 53 | |||||
Night quiet mode | dB(A) | 48 | ||||||
Sound Power Level (H/L) | dB(A) | 71 | ||||||
Dimensions (HxWxD) | mm | 990 x 940 x 320 | ||||||
Machine Weight | kg | 78 | ||||||
Certified Operation range | Cooling | °CDB | -5 to 50 | |||||
Heating | °CWB | -15 to 15.5 | ||||||
Piping Connections | Liquid (Flare) | mm | ø9.5 | |||||
Gas (Flare) | mm | ø15.9 | ||||||
Drain | Indoor Unit | mm | I.D. ø13 x O.D ø18 | |||||
Outdoor Unit | mm | ø26.0 (Hole) | ||||||
Refrigerant | R32 | |||||||
Max, interunit piping length | m | 75 (Equivalent length 90) | ||||||
Max. Installation level difference | m | 30 | ||||||
Heat insulation | Both liquid and gas piping |
SKU | FAA85B-VCV |
Brand | Daikin |
Shipping Weight | 88.0000kg |
Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
