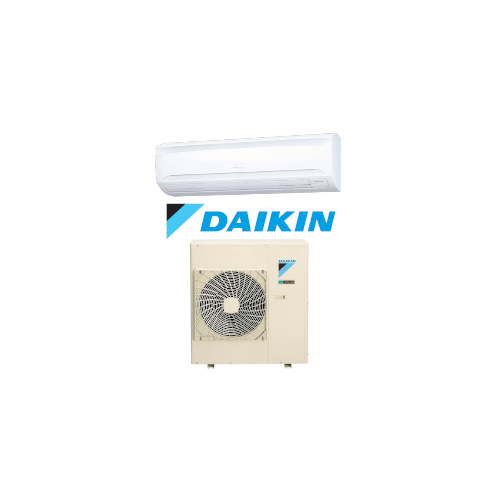

Daikin FAA50BA-VCV 5.0kW Wall Mounted Split System

FAA50BAVMA/RZAV50CV1 Commercial Air Conditioner




$3,038.00 Incl GST
$2,761.82 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

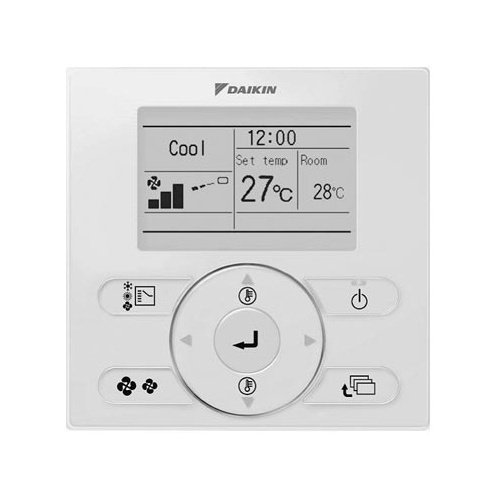

Daikin FAA50BA-VCV 5.0kW Wall Mounted Split System - Includes BRC1E63 Wired Controller & Outdoor Unit RZAV50CV1

A sophisticated wall mounted unit with wide angle airflow and long air throw for greater comfort even on the far side of the room. Optional fixed controller BRC1E63.


Features:

  • Vertical auto-swing with 5-stem airflow direction
  • Extra high fan speed setting for increased reach
  • R22 retrofit technology

(FAA50BA-VCV)

Indoor Unit FAA50BAVMA

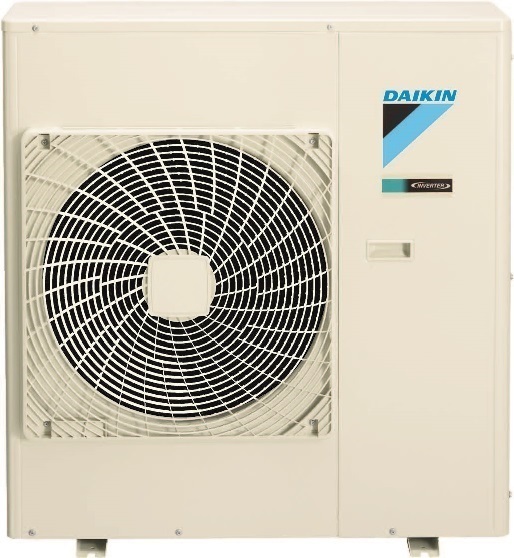

Outdoor Unit RZAV50CV1
Power Supply ø / V / Hz 1 Phase, 220-240V, 50 Hz
Cooling Capacity Rated (Min - Max) kW 5.0 (1.4 - 6.0)
Heating Capacity Rated (Min - Max) kW 6.0 (1.4 - 7.1)
Power Consumption Cooling kW 1.45
Heating kW 1.61
Enery Efficiency EER kW 3.45
COP kW 3.73
Indoor Unit Colour Unit   -
Decoration Panel   Fresh White
Airflow Rate (H / M / L) L/s 300 / 267 / 233
m³/min 18.0 / 16.0 / 14.0
Sound Pressure Level (H / HM / M / ML / L) dB(A) 45.0 / 42.0 / 40.0
Dimensions (HxWxD) Unit mm 290 x 1050 x 238
Machine Weight Unit kg 13
Certified Operation Range Cooling °CWB 14 to 25
Heating °CDB 15 to 27
Outdoor Unit Colour   Ivory white
Compresser Type   Hermetically sealed swing type
Motor output kW 1.3
Refrigerant Charge (R410a) kg 1.35 (charged for 30m)
Sound Level Cooling / Heating dB(A) 48 / 51
Night quiet mode dB(A) 44
Sound Power Level (H/L) dB(A) 68
Dimensions (HxWxD) mm 595 x 845 x 300
Machine Weight kg 45
Certified Operation range Cooling °CDB -5 to 50
Heating °CWB -15 to 15.5
Piping Connections Liquid (Flare) mm ø6.4
Gas (Flare) mm ø12.7
Drain Indoor Unit mm I.D. ø13 x O.D ø18
Outdoor Unit mm ø26.0 (Hole)
Refrigerant   R32
Max, interunit piping length m 50 (Equivalent length 70)
Max. Installation level difference m 30
Heat insulation   Both liquid and gas piping
SKU FAA50BA-VCV
Brand Daikin
Shipping Weight 58.0000kg
Shipping Cubic 0.223303000m3
