Carrier Slim 42SHDS100 9.7kW Ducted System

42SHDS100/38SHDS100 Slim Ducted Air Conditioner




$2,604.00 Incl GST
$2,367.27 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

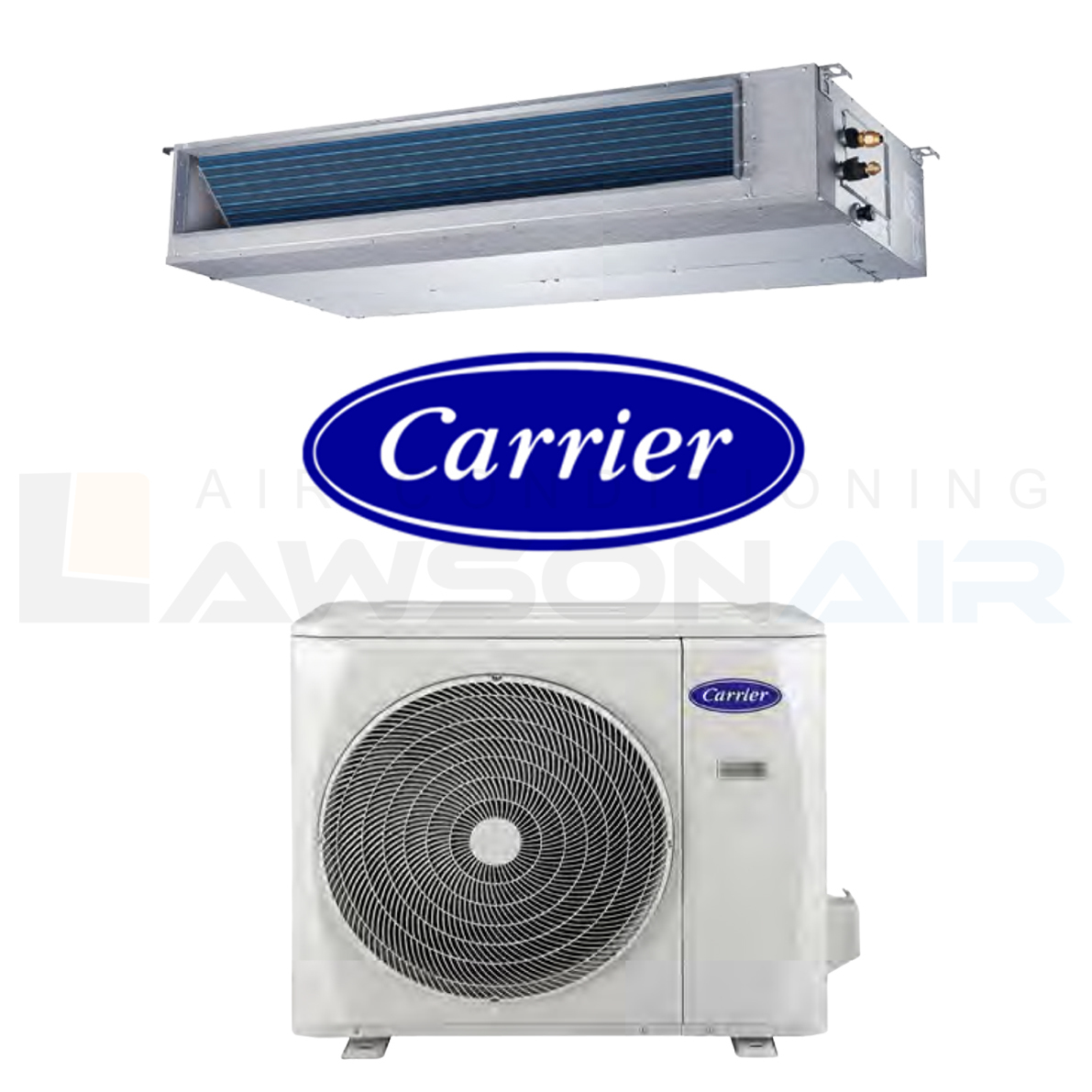

Carrier Slim 42SHDS100 9.7kW Ducted System - Includes Outdoor Unit 38SHDS100

Founded by the inventor of modern air conditioning Willis Carrier, Carrier is one of the world's leaders in high technology heating, air conditioning and refrigeration solutions. Ducted Air Conditioning consists of an indoor and outdoor unit. The indoor unit is concealed in the roof with ducts around the home distributing the air. The outdoor unit is situated outside of the home.

Features:

  • Perfect choice for applications with minimal ceiling space
  • Easy to install and maintain
  • Quiet operation

(42SHDS100)

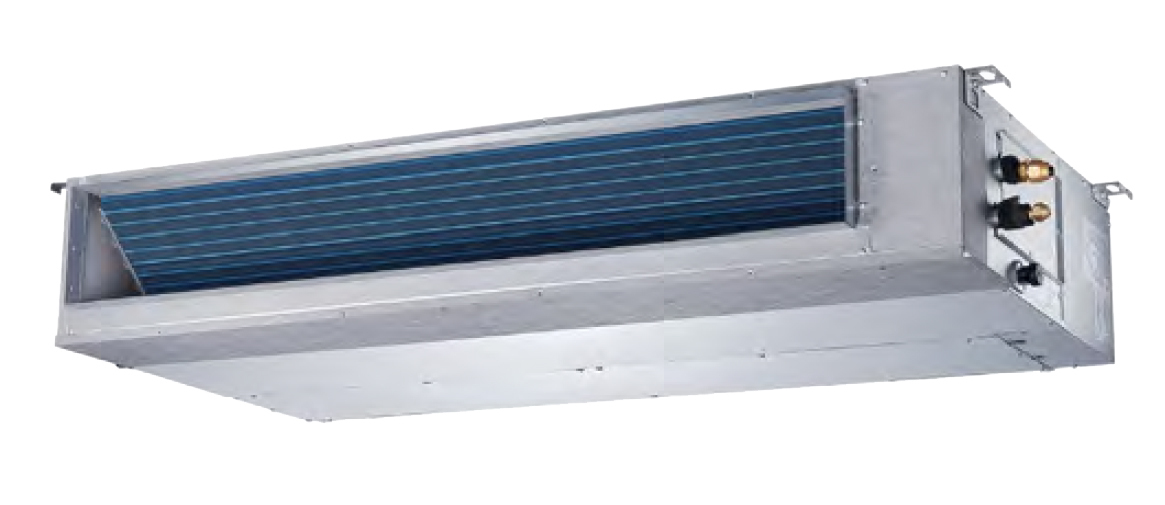

Indoor 42SHDS100
Outdoor 38SHDS100
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz) V / ø / Hz 220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 9.7 (2.95 - 12)
Efficiency (rated) EER 3.34
Power Input (rated) kW 2.9
Operating Current (rated) A 13.05
Heating Capacity - Rated (Range) kW 11 (2.65 - 13.2)
Efficiency (rated) COP 3.75
Power Input (rated) kW 2.93
Operating Current (rated) A 13.19
Indoor Unit Dimensions (WxDxH) mm 249 x 1360 x 774
Net Weight kg 40
Airflow Volume (H) L/s 510
Moisture Removal (cooling) L/Hr 1.05
Fan Motor Output W 300
Sound Pressure (H/M/L) at 1m Distance dBA 46 / 43 / 38
Outdoor Dimensions (WxDxH) mm 810 x 946 x 410
Net Weight kg 69
Compressor Type  -  Twin Rotary
Fan Motor Output W 120
Cooling Operating Noise (sound power) (H) dBA(@spl) 69
Heating Operating Noise (sound power) (H) dBA(@spl) 69
Cooling Usable Temperature Range °C -10 to 46
Heating Usable Temperature Range °C -15 to 24
Pipe Size Liquid Line Ø / Gas Line Ø mm / mm 9.52 / 15.9
Coupler Style  -  Flare
Drain (inside diameter) mm 20
Maximum Length m 40
Chargeless Length m 15
Chargeless Length at 15m from serial numbers m 1505xxxx
Maximum Height Difference m 20
SKU 42SHDS100
Brand Carrier
Shipping Weight 109.0000kg
Shipping Cubic 0.576274000m3
