Carrier Slim 42SHDS090 8.8kW Ducted System

42SHDS090/38SHDS090 Slim Ducted Air Conditioner




$2,405.00 Incl GST
$2,186.36 Excl GST
Sold Out

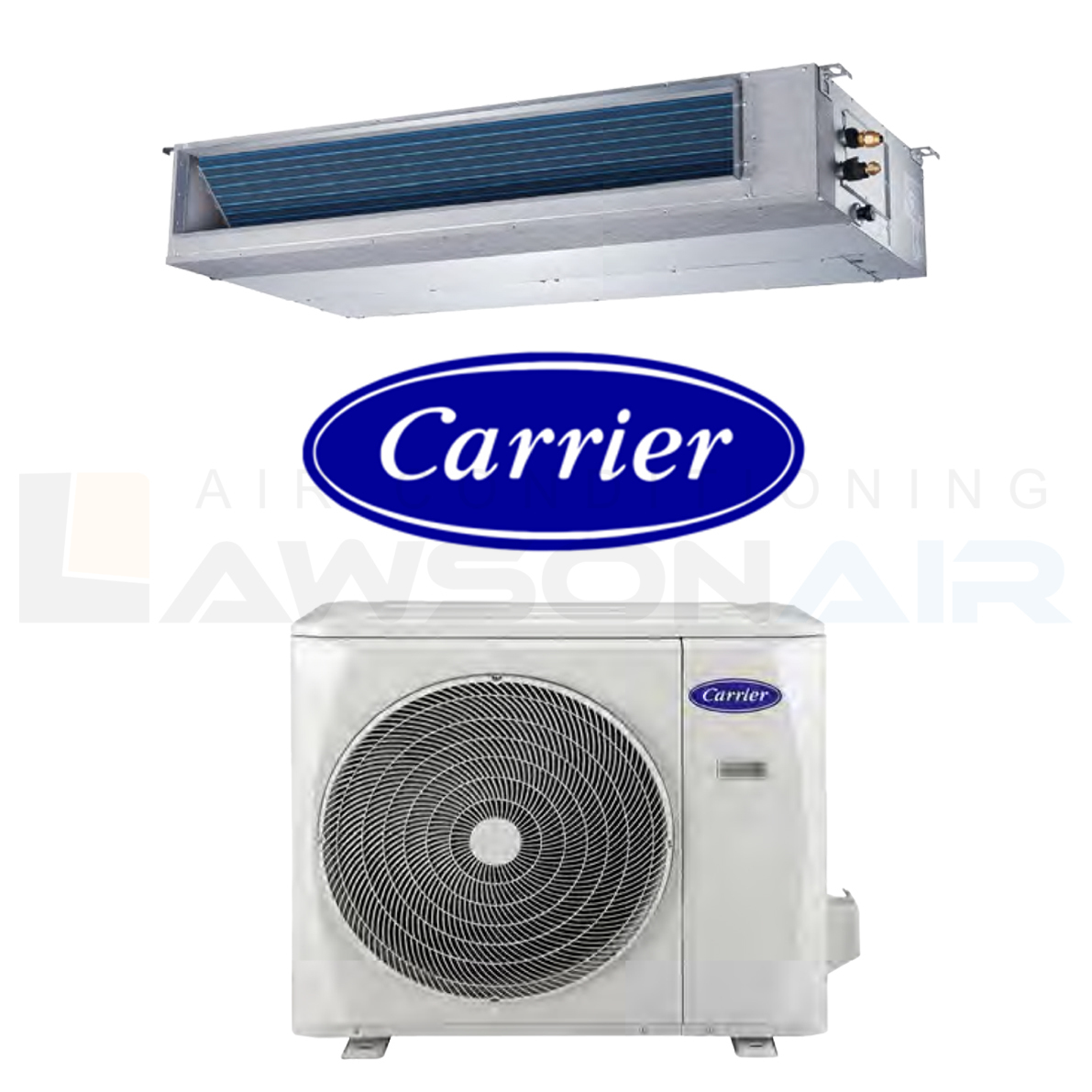

Carrier Slim 42SHDS090 8.8kW Ducted System - Includes Outdoor Unit 38SHDS090

Founded by the inventor of modern air conditioning Willis Carrier, Carrier is one of the world's leaders in high technology heating, air conditioning and refrigeration solutions. Ducted Air Conditioning consists of an indoor and outdoor unit. The indoor unit is concealed in the roof with ducts around the home distributing the air. The outdoor unit is situated outside of the home.

Features:

  • Perfect choice for applications with minimal ceiling space
  • Easy to install and maintain
  • Quiet operation

(42SHDS090)

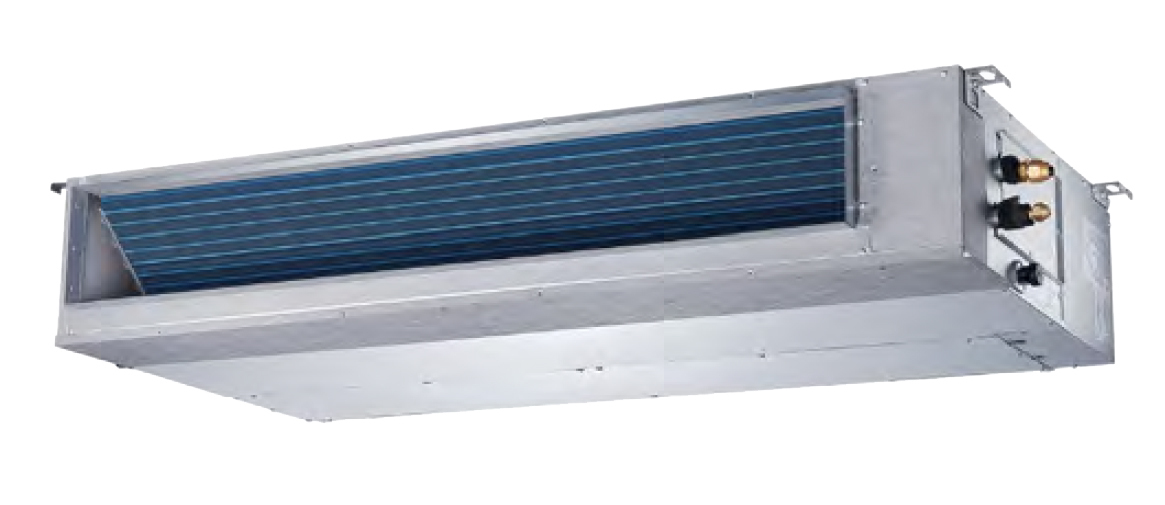

Indoor 42SHDS090
Outdoor 38SHDS090
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz) V / ø / Hz 220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 8.8 (2.1 - 10.5)
Efficiency (rated) EER 3.37
Power Input (rated) kW 2.61
Operating Current (rated) A 11.61
Heating Capacity - Rated (Range) kW 10.10 (2.1 - 10.8)
Efficiency (rated) COP 3.87
Power Input (rated) kW 2.61
Operating Current (rated) A 11.72
Indoor Unit Dimensions (WxDxH) mm 249 x 1360 x 774
Net Weight kg 40
Airflow Volume (H) L/s 510
Moisture Removal (cooling) L/Hr 0.96
Fan Motor Output W 300
Sound Pressure (H/M/L) at 1m Distance dBA 46 / 43 / 38
Outdoor Dimensions (WxDxH) mm 810 x 946 x 410
Net Weight kg 69
Compressor Type  -  Twin Rotary
Fan Motor Output W 120
Cooling Operating Noise (sound power) (H) dBA(@spl) 69
Heating Operating Noise (sound power) (H) dBA(@spl) 69
Cooling Usable Temperature Range °C -10 to 46
Heating Usable Temperature Range °C -15 to 24
Pipe Size Liquid Line Ø / Gas Line Ø mm / mm 9.52 / 15.9
Coupler Style  -  Flare
Drain (inside diameter) mm 20
Maximum Length m 40
Chargeless Length m 15
Chargeless Length at 15m from serial numbers m 1505xxxx
Maximum Height Difference m 20
SKU 42SHDS090
Brand Carrier
Shipping Weight 109.0000kg
