Carrier High Static HDV165 16.5kW Ducted System

42SHDV165/38SHDV165 Ducted Air Conditioner




$4,357.00 Incl GST
$3,960.91 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

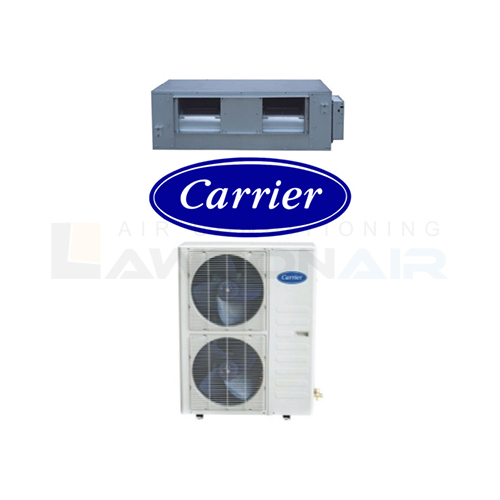

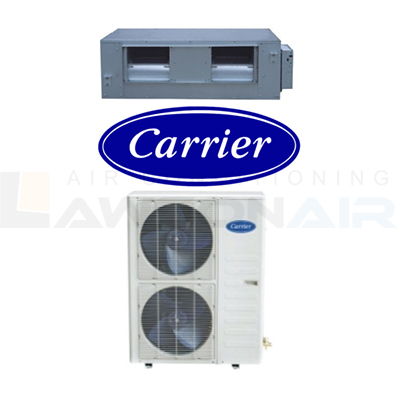

Carrier High Static 42SHDV165 16.5kW Ducted System - Includes Outdoor Unit 38SHDV165

Founded by the inventor of modern air conditioning Willis Carrier, Carrier is one of the world's leaders in high technology heating, air conditioning and refrigeration solutions. Ducted Air Conditioning consists of an indoor and outdoor unit. The indoor unit is concealed in the roof with ducts around the home distributing the air. The outdoor unit is situated outside of the home.

Features:

  • Concealed and flexible installation
  • Easy to install and maintain
  • Quiet operation

(42SHDV165)

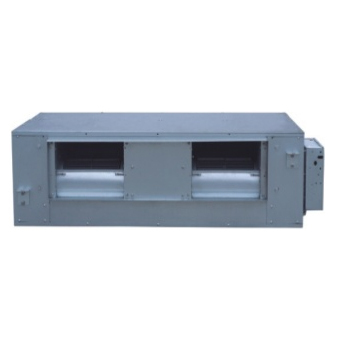

Indoor 42SHDV165
Outdoor 38SHDV165
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz) V / ø / Hz 220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 16.5 (5 - 18)
Efficiency (rated) EER 3.34
Power Input (rated) kW 4.94
Operating Current (rated) A 22.23
Heating Capacity - Rated (Range) kW 17.50 (5.3 - 20)
Efficiency (rated) COP 3.9
Power Input (rated) kW 4.49
Operating Current (rated) A 20.69
Indoor Unit Dimensions (WxDxH) mm 440 x 1400 x 858
Net Weight kg 74
Airflow Volume (H) L/s 1050
Moisture Removal (cooling) L/Hr 3.68
Fan Motor Output W 700
Sound Pressure (H/M/L) at 1m Distance dBA 53 / 49 / 45
Outdoor Dimensions (WxDxH) mm 1333 x 952 x 410
Net Weight kg 101
Compressor Type  -  Twin Rotary
Fan Motor Output W 85x2
Cooling Operating Noise (sound power) (H) dBA(@spl) 71
Heating Operating Noise (sound power) (H) dBA(@spl) 71
Cooling Usable Temperature Range °C -10 to 46
Heating Usable Temperature Range °C -15 to 24
Pipe Size Liquid Line Ø / Gas Line Ø mm / mm 9.52 / 19
Coupler Style  -  Flare
Drain (inside diameter) mm 20
Maximum Length m 50
Chargeless Length m 15
Chargeless Length at 15m from serial numbers m 1505xxxx
Maximum Height Difference m 25
SKU 42SHDV165
Brand Carrier
Shipping Weight 175.0000kg
Shipping Cubic 1.048825000m3
