Carrier High Static HDV140 14.3kW Ducted System

42SHDV140/38SHDV140 Ducted Air Conditioner




$3,788.00 Incl GST
$3,443.64 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

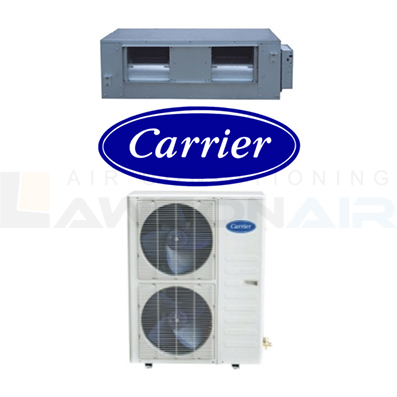

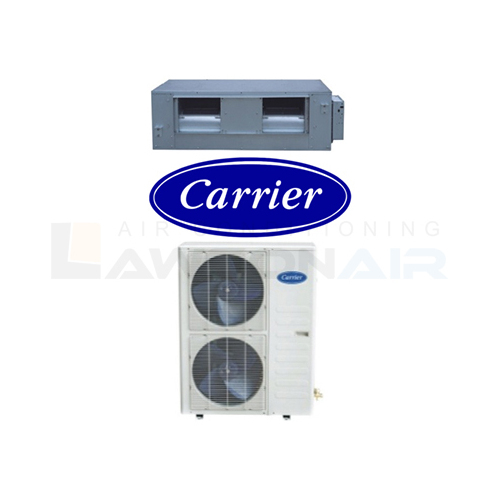

Carrier High Static 42SHDV140 14.3kW Ducted System - Includes Outdoor Unit 38SHDV140

Founded by the inventor of modern air conditioning Willis Carrier, Carrier is one of the world's leaders in high technology heating, air conditioning and refrigeration solutions. Ducted Air Conditioning consists of an indoor and outdoor unit. The indoor unit is concealed in the roof with ducts around the home distributing the air. The outdoor unit is situated outside of the home.

Features:

  • Concealed and flexible installation
  • Easy to install and maintain
  • Quiet operation

(42SHDV140)

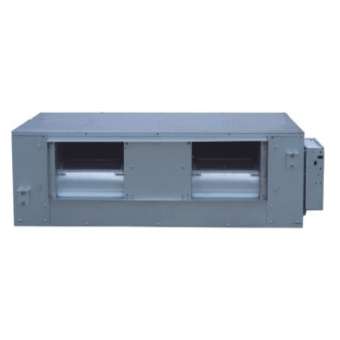

Indoor 42SHDV140
Outdoor 38SHDV140
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz) V / ø / Hz 220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 14.3 (4.1 - 16.4)
Efficiency (rated) EER 3.42
Power Input (rated) kW 4.18
Operating Current (rated) A 18.42
Heating Capacity - Rated (Range) kW 16.50 (4.35 - 18.1)
Efficiency (rated) COP 3.73
Power Input (rated) kW 4.42
Operating Current (rated) A 19.49
Indoor Unit Dimensions (WxDxH) mm 380 x 1200 x 625
Net Weight kg 56
Airflow Volume (H) L/s 890
Moisture Removal (cooling) L/Hr 3.17
Fan Motor Output W 560
Sound Pressure (H/M/L) at 1m Distance dBA 50 / 47 / 43
Outdoor Dimensions (WxDxH) mm 1333 x 952 x 410
Net Weight kg 101
Compressor Type  -  Twin Rotary
Fan Motor Output W 85x2
Cooling Operating Noise (sound power) (H) dBA(@spl) 71
Heating Operating Noise (sound power) (H) dBA(@spl) 71
Cooling Usable Temperature Range °C -10 to 46
Heating Usable Temperature Range °C -15 to 24
Pipe Size Liquid Line Ø / Gas Line Ø mm / mm 9.52 / 19
Coupler Style  -  Flare
Drain (inside diameter) mm 20
Maximum Length m 50
Chargeless Length m 15
Chargeless Length at 15m from serial numbers m 1505xxxx
Maximum Height Difference m 25
SKU 42SHDV140
Brand Carrier
Shipping Weight 157.0000kg
Shipping Cubic 0.805297000m3
