Braemar 20.0kW SDHV20D3S 3 Phase Ducted Air Conditioning System

SDHV20D1S / SCHV20D3S Braemar Ducted




$5,780.00 Incl GST
$5,254.55 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

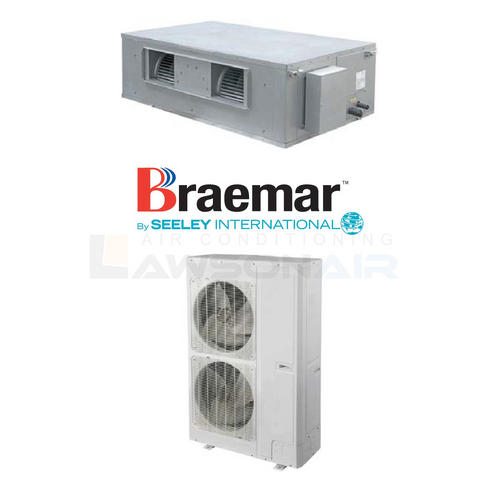

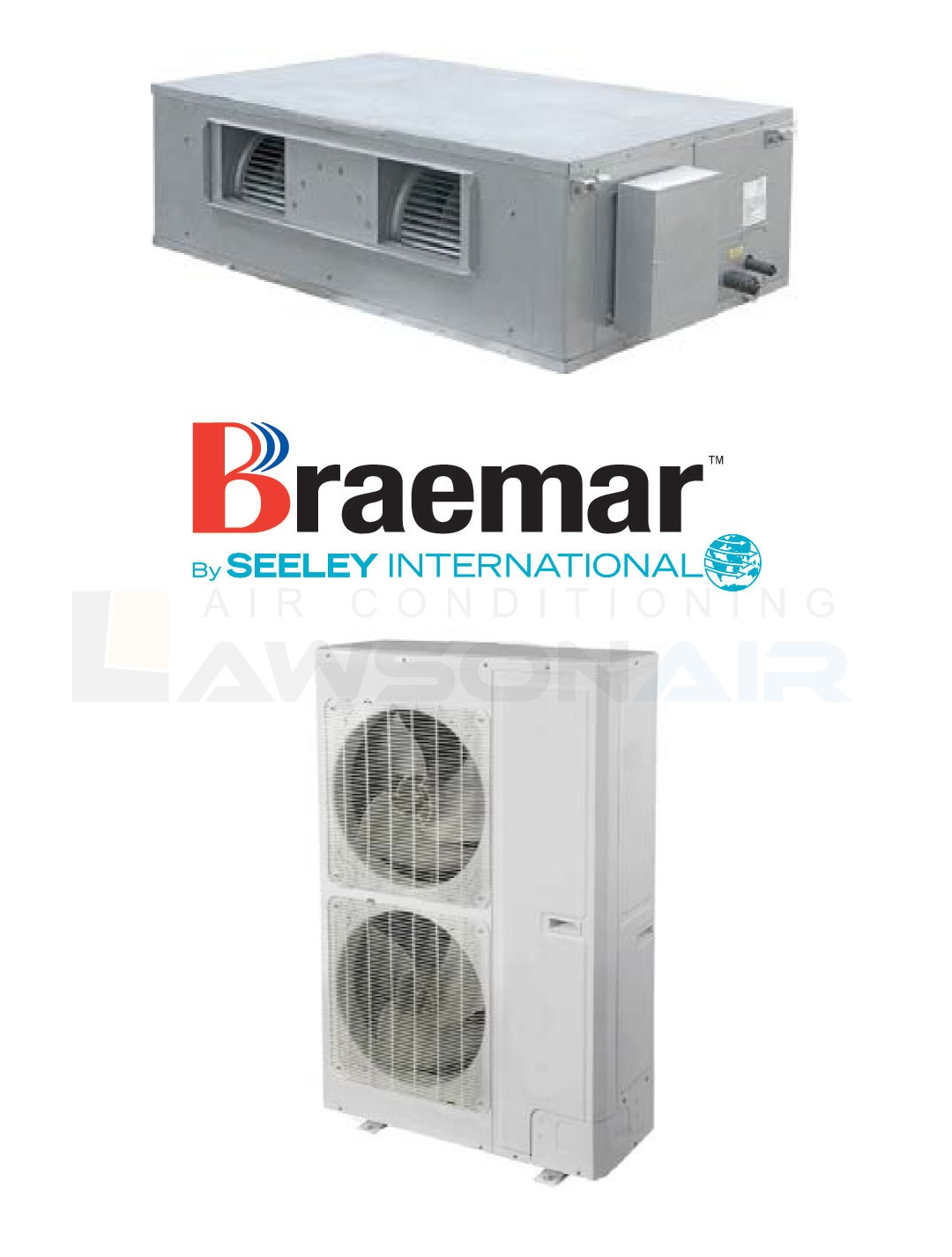

Braemar SDHV20D3S 20.0kW Three Phase Ducted System - Includes Outdoor Unit SCHV20D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV20D3S)

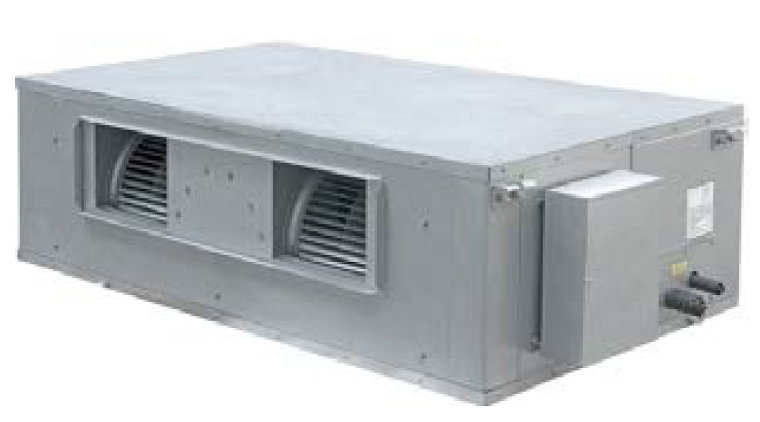

Indoor SDHV20D1S

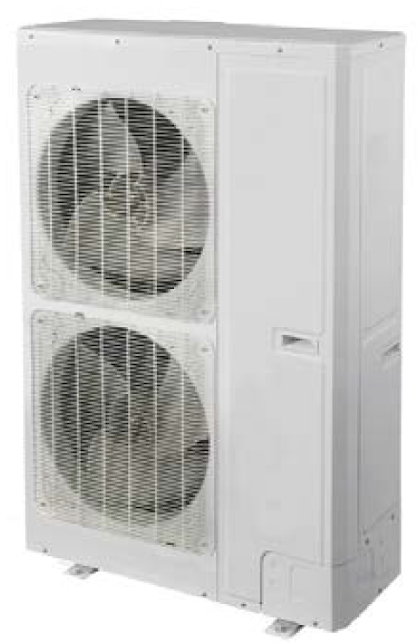

Outdoor SCHV20D3S
Refrigerant Type   R32
Power Supply (Volts - Phase - Hz)   220-240 / 3 / 50
Cooling Capacity - Rated (Range) kW 20.0 (10.0 - 25.0)
Power Input (Range) kW 6.06
Max Current Input (Indoor / Outdoor)   11.2 / 12.3
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -7 - 48
Heating Capacity - Rated (Range) kW 16.0 (5.2 - 17.0)
Power Input (Range) kW 6
Max Current Input (Indoor / Outdoor)   11.2 / 12.3
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -15 - 24
Indoor Unit Dimensions (WxDxH) mm 1690 x 440 x 870
Net Weight kg 110.0
Min/Max Airflow L/s 830 - 1400
Range (9 Settings)  Pa 0 - 250
Sound Pressure Level dBA(@spl) 53
Outdoor Dimensions (WxDxH) mm 940 x 1615 x 460
Net Weight kg 155.0
Compressor Type  -  -
Fan Motor Output W -
Sound Pressure Level dBA(@spl) 60
Sound Power  dBA(@spl) -
Pipe Size Pipe Sizes mm 9.53 / 19.05
Coupler Style  -  -
Minimum Length m -
Maximum Length m 50
Pre Charge Length m 7.5
Additional Refrigerant g / m 54
Lift m 30
SKU SDHV20D3S
Brand Braemar
Shipping Weight 265.0000kg
