Braemar SDHV12D1S 12.0kW Single Phase Ducted System

SDHV12D1S/SCHV12D1S Reverse Cycle Ducted System




$3,289.00 Incl GST
$2,990.00 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

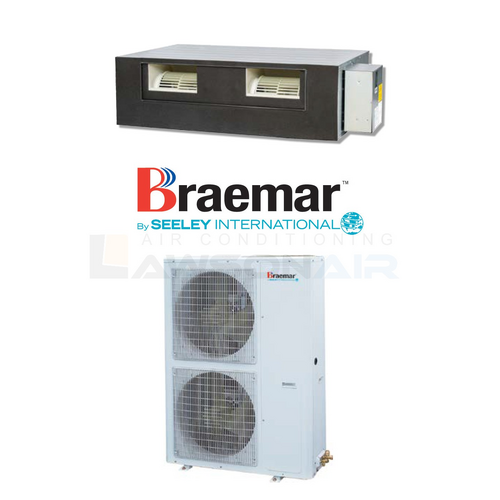

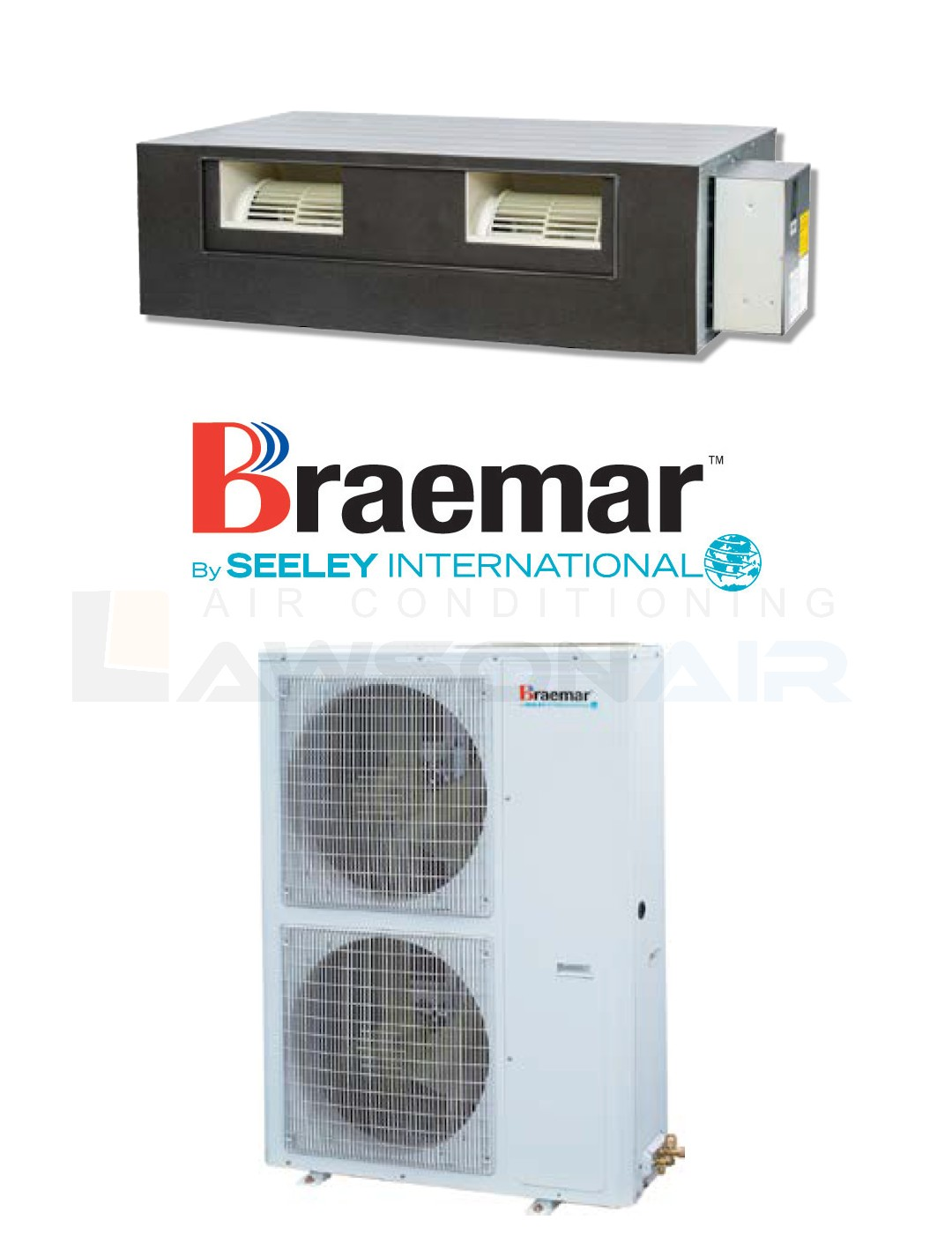

Braemar SDHV12D1S 12.0kW Single Phase Ducted System - Includes Outdoor Unit SCHV12D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV12D1S)

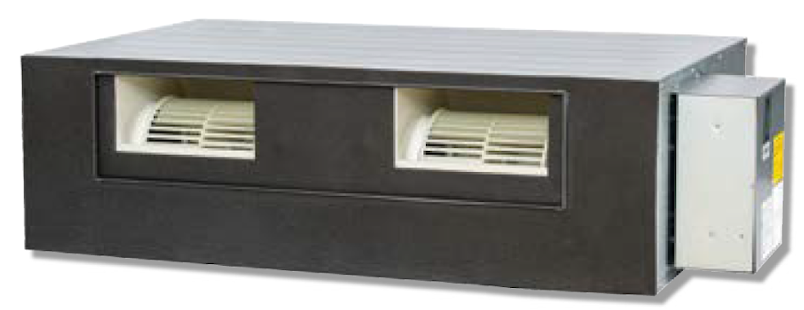

Indoor SDHV12D1S

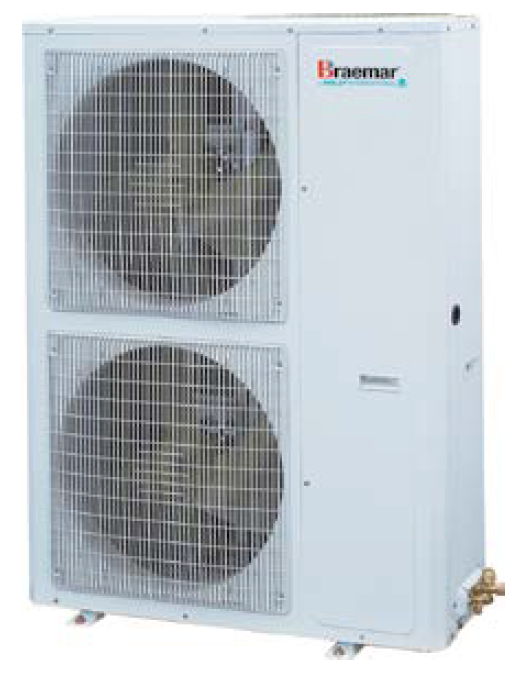

Outdoor SCHV12D1S
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 12.0 (4.0 - 13.5)
Power Input (Range) kW 3.70 (0.65 - 4.70)
Max Current Input (Indoor / Outdoor)   1 / 21
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -15 - 48
Heating Capacity - Rated (Range) kW 13.8 (4.0 - 15.0)
Power Input (Range) kW 4.00 (1.30 - 5.5)
Max Current Input (Indoor / Outdoor)   1 / 21
Efficiency - Rated  W/W 3.45
Ambient Temperature Range °C -10 - 24
Indoor Unit Dimensions (WxDxH) mm 1340 x 350 x 750
Net Weight kg 59.0
Min/Max Airflow L/s 420 - 900
Range (9 Settings)  Pa 0 - 200
Sound Pressure Level dBA(@spl) 43 - 52
Outdoor Dimensions (WxDxH) mm 1107 x 1100 x 440
Net Weight kg 101.0
Compressor Type  -  -
Fan Motor Output W -
Sound Pressure Level dBA(@spl) 60
Sound Power  dBA(@spl) -
Pipe Size Pipe Sizes mm 9.53 / 15.88
Coupler Style  -  -
Minimum Length m -
Maximum Length m 50
Pre Charge Length m 7
Additional Refrigerant g / m 60
Lift m 30
SKU SDHV12D1S
Brand Braemar
Shipping Weight 160.0000kg
Shipping Cubic 0.887538000m3
