Braemar SBHV07D1S 7.0kW Single Ceiling Mounted Cassette

SBHV07D1S/SCHV07D1S Single Ceiling Mounted Cassette




$2,093.00 Incl GST
$1,902.73 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

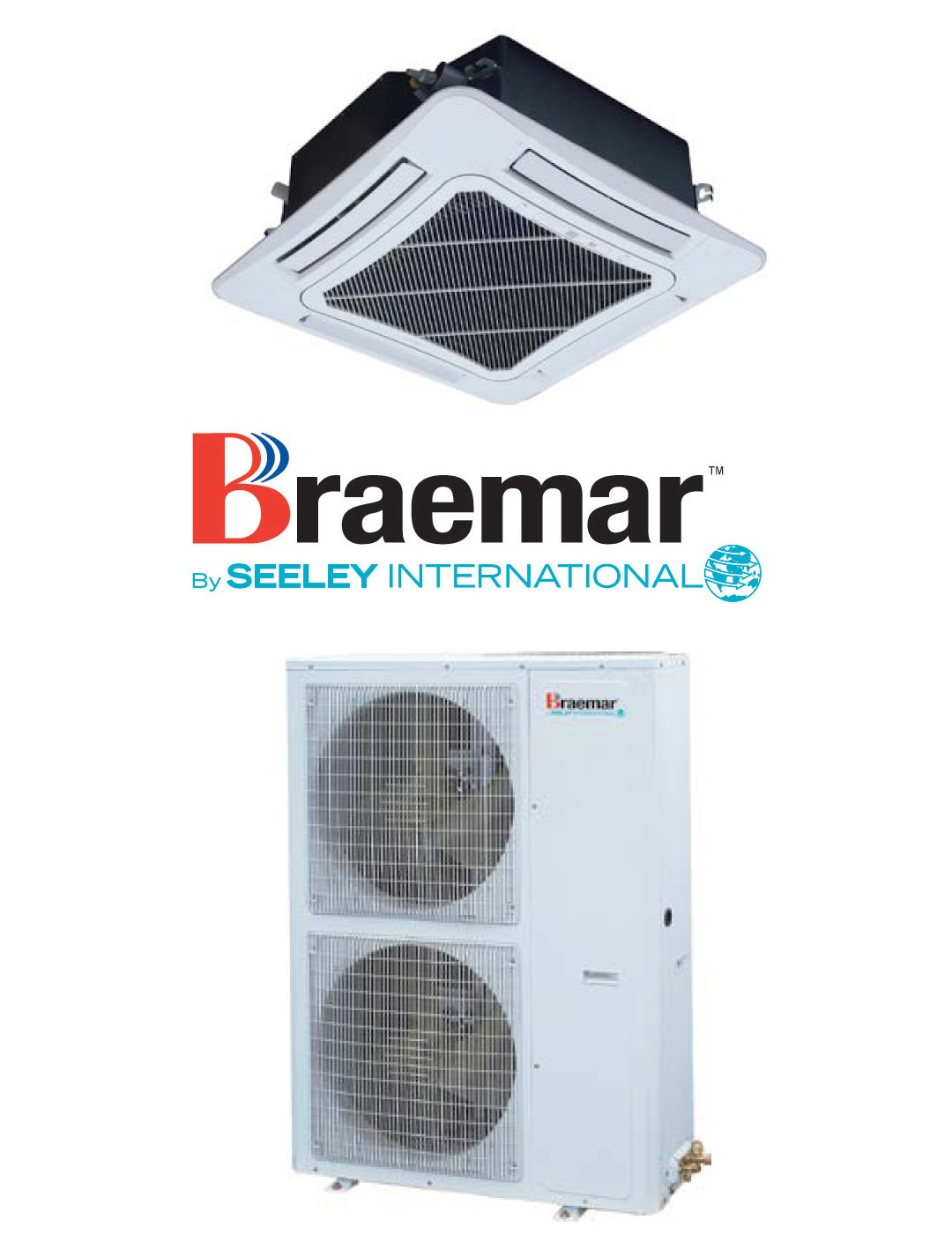

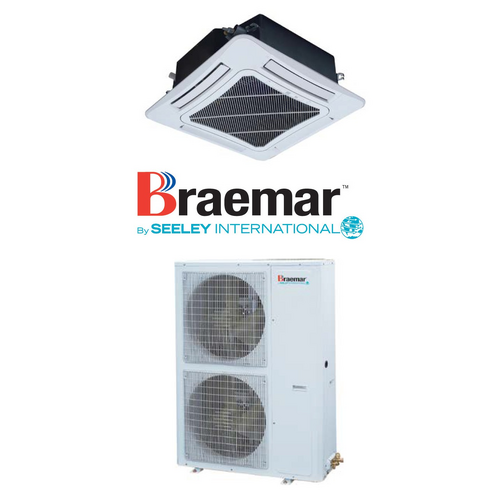

Braemar SBHV07D1S 7.0kW Single Ceiling Mounted Cassette - Includes Outdoor Unit SCHV07D1S

Key Features:

  • Airflow Distribution
  • Quiet
  • Efficient
  • Easy Maintenance
  • Easy and Flexible Installation

(SBHV07D1S)

Indoor SBHV07D1S

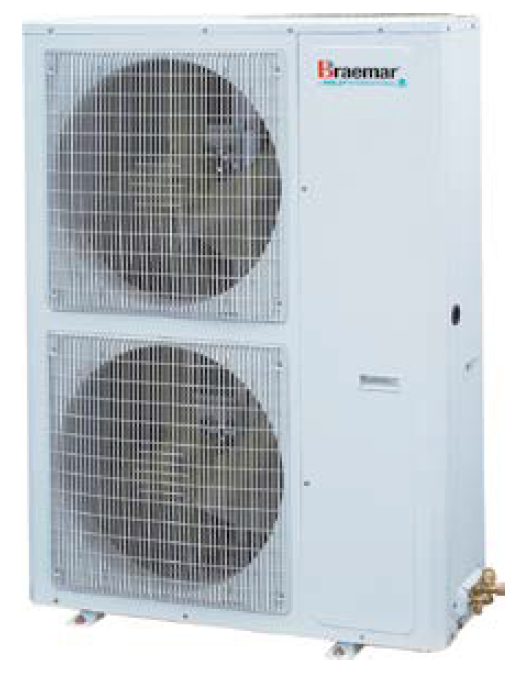

Outdoor SCHV07D1S
Fascia TC04
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 7.2 (2.4 - 9.5)
Power Input (Range) kW 2.15 (0.85 - 2.50)
Max Current Input (Indoor / Outdoor)   1 / 16
Efficiency - Rated  W/W 3.21
Ambient Temperature Range °C -15 - 48
Heating Capacity - Rated (Range) kW 8.2 (2.4 - 10.0)
Power Input (Range) kW 2.45 (0.80 - 2.75)
Max Current Input (Indoor / Outdoor)   1 / 16
Efficiency - Rated  W/W 3.51
Ambient Temperature Range °C -10 - 24
Indoor Unit Dimensions (WxDxH) mm 840 x 240 x 840
Net Weight kg 29.0
Rated Airflow L/s 385
Sound Pressure Level dBA(@spl) 43 - 48
Outdoor Dimensions (WxDxH) mm 980 x 790 x 427
Net Weight kg 69.0
Compressor Type  -  -
Fan Motor Output W -
Sound Pressure Level dBA(@spl) 56
Sound Power  dBA(@spl) -
Fascia Dimensions (WxDxH) mm 952 x 60 x 952
Net Weight kg 7
Pipe Size Pipe Sizes mm 9.53 / 15.88
Coupler Style  -  -
Minimum Length m -
Maximum Length m 50
Pre Charge Length m 7
Additional Refrigerant g / m 60
Lift m 15
SKU SBHV07D1S
Brand Braemar
Shipping Weight 105.0000kg
Shipping Cubic 0.554305000m3
