Braemar SACV12D1S 12.0kW Add-on Cooling System

SACV12D1S/SCHV12D1S Reverse Cycle Ducted System




$5,082.00 Incl GST
$4,620.00 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

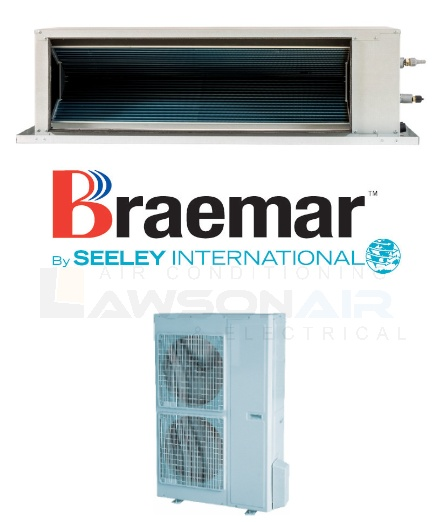

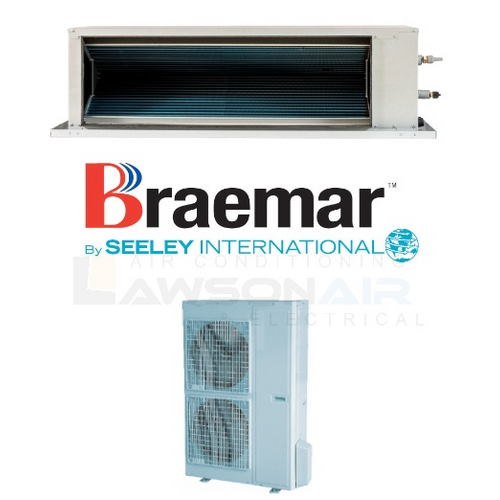

Braemar SACV12D1S 12.0kW Add-on Cooling System - Includes Outdoor Unit SCHV12D1S

Braemar add-on cooling systems are designed to act as add-ons to gas heating systems.

Key Features:

  • Compact High-Efficiency Coil
  • Very Low-Pressure Drop Coil Design
  • Slim Design

(SACV12D1SKIT)

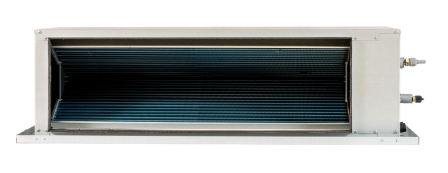

Indoor SACV12D1S
Outdoor SCHV12D1S
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 13.0 (4.0 - 13.5)
Power Input (Range) kW 3.50 (0.65 - 4.70)
Efficiency - Rated  W/W 3.40
Ambient Temperature Range °C -15 - 48
Indoor Unit Dimensions (WxDxH) mm 1280 x 450 x 366
Net Weight kg 25.0
Min/Max Airflow L/s 415 - 725
Pressure drop at rated airflow dry/wet  Pa 27 / 30
Outdoor Dimensions (WxDxH) mm 1107 x 440 x 1100
Net Weight kg 101.0
Compressor Type  -  -
Fan Motor Output W -
Sound Pressure Level dBA(@spl) 60
Sound Power  dBA(@spl) -
Pipe Size Pipe Sizes mm 9.53 / 15.88
Coupler Style  -  -
Minimum Length m -
Maximum Length m 50
Pre Charge Length m 7
Additional Refrigerant g / m 60
Lift m 30
SKU SACV12D1SKIT
Brand Braemar
Shipping Weight 116.0000kg
Shipping Cubic 0.610085000m3
