TECO TWSM71HVAG 7.1kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)

TECO-TWSM71HVAG
TECO-TWSM71HVAG

TECO TWSM71HVAG 7.1kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)

TECO Indoor Multi High Wall Split Unit




$626.00 Incl GST
$569.09 Excl GST
In Stock

Calculate Shipping


Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

TECO TWSM71HVAG 7.1kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi)

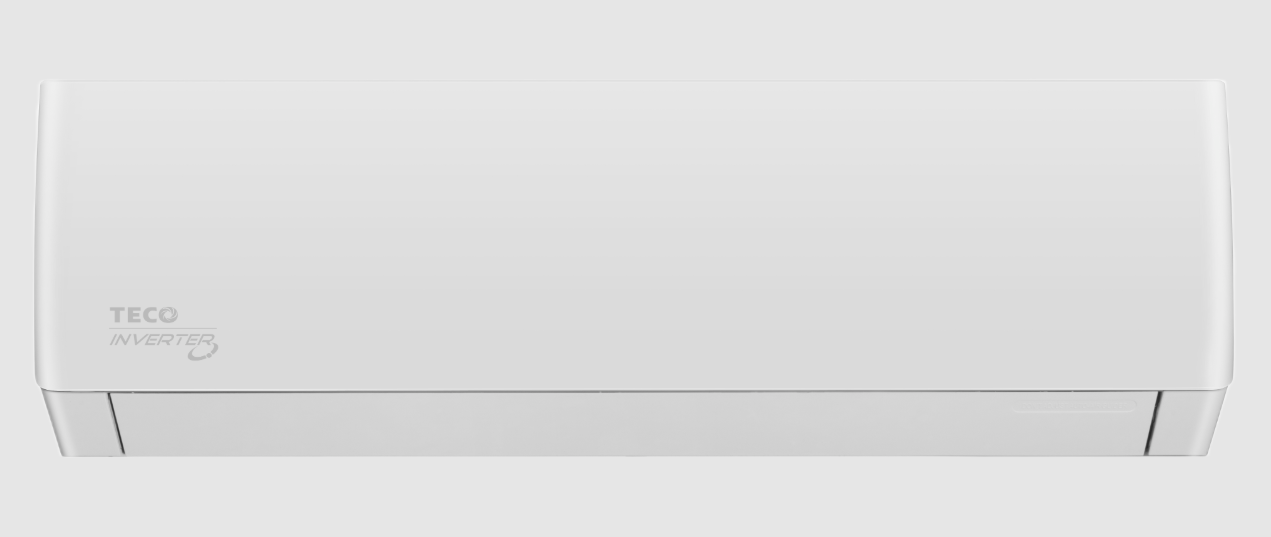

The TWSM71HVAG 7.1kW High Wall Mounted Indoor Unit is engineered for large residential and commercial spaces, offering powerful cooling and heating performance with energy-efficient operation. Designed to maintain a comfortable indoor climate in open-plan areas, large bedrooms, and office spaces, this unit integrates Plasmacluster Ion Sterilisation to actively purify air and enhance indoor air quality. Advanced inverter technology ensures stable and precise temperature control while reducing energy consumption. The Goldfin-coated heat exchanger provides superior durability and corrosion resistance, making it ideal for humid or coastal environments. With WiFi connectivity and an optional wall-mounted controller, this system offers convenient control, smart home integration, and reliable year-round comfort.

Key Features:

  • 7 Years Warranty (Domestic Application)
  • 2 Years Warranty (Commercial Application)
  • Built-in Wi-Fi
  • Dehumidify Mode
  • I Feel Function
  • Ion Generator
  • Dry Anti-Mildew Design
  • Turbo Fan Mode
  • Pre-Heat Function
  • Gold Fin Coating - Evaporator Coil

(TWSM71HVAG)

Indoor Unit TWSM22HVAG TWSM26HVAG TWSM35HVAG TWSM50HVAG TWSM64HVAG TWSM71HVAG
Power Supply (V - Hz - Phase) 220-240 / 50 / 1
Cool Capacity Rated/Min-Max (kW) 2.25 (0.35-3.05) 2.65 (0.45-3.7 3.52 (0.55-4.4) 5.2 (1.0-6.5) 6.3 (1.6-8.6) 7.1 (1.1-8.8)
Heat Capacity Rated/Min-Max (kW) 2.7 (0.75-3.75) 3.2 (1.1-3.85) 4.0 (1.1-5.4) 6.0 (1.4-6.9) 7.4 (2.0-9.06) 8.0 (2.0-9.5)
Power Input Rated/Min-Max Cool (W) 600 (110-1100) 575 (110-1250) 830 (190-1500) 1290 (220-2100) 1542 (400-2600) 1844 (450-3100)
Power Input Rated/Min-Max Heat (kW) 720 (150-1250) 745 (150-1350 980 (190-1650) 1460 (210-2300) 1805 (400-3000) 2050 (370-3200)
Min/Max Voltage 198 / 264
Air Flow Volume L/s

144 / 131 / 125 /

117 / 86 / 81 / 69

206 / 175 / 156 /

136 / 117 / 108 / 100

200 / 172 / 156 /

136 / 119 / 108 / 89

292 / 253 / 242 /

231 / 214 / 183 / 167

361 / 306 / 392 /

264 / 250 / 236 / 222

361 / 292 / 278 /

250 / 228 / 208 / 181
Application Area (m2) 10 - 16 12 - 18 16 - 24 23 - 34 27 - 42 27 - 42
Set Temperature Range (C) 16 ~ 30
Sound Pressure Level (dBA)

39 / 36 / 32 /

32 / 28 / 23 / 22

42 / 37 / 36 /

32 / 28 / 24 / 20

44 / 38 / 36 /

34 / 31 / 28 / 23

46 / 41 / 39 /

37 / 35 / 32 / 27

49 / 43 / 41 /

38 / 35 / 33 / 29

50 / 44 / 43 /

40 / 36 / 34 / 32
Sound Power Level (dBA)

55 / 52 / 50 /

48 / 44 / 39 / 38

57 / 52 / 51 /

47 / 43 / 39 / 35

59 / 53 / 51 /

49 / 46 / 43 / 38

62 / 57 / 55 /

53 / 51 / 48 / 43

62 / 55 / 53 /

50 / 47 / 45 / 41

66 / 60 / 59 /

56 / 52 / 50 / 48
Pipe Sizes Liquid/Gas (mm) 6.35 + 9.52 6.35 + 12.7 6.35 + 15.88
Unit Dimensions (HxWxD) (mm) 260 x 704 x 185 293 x 825 x 196 311 x 982 x 221 333 x 1075 x 246
Package Dimensions (HxWxD) (mm) 332 x 753 x 258 365 x 875 x 268 385 x 1044 x 297 414 x 1133 x 333
Net Weight (kg) 7.5 9.5 13 16
Gross Weight (kg) 9 11.5 15.5 19
SKU TWSM71HVAG
Brand TECO
Shipping Weight 19.0000kg
Shipping Width 0.333m
Shipping Height 0.414m
Shipping Length 1.133m
Shipping Cubic 0.156197646m3
Unit Of Measure ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
