TECO TWSM64HVAG 6.4kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)

TECO-TWSM64HVAG
TECO-TWSM64HVAG

TECO TWSM64HVAG 6.4kW Indoor Multi Reverse Cycle High Wall Split Air Conditioning Unit (Built-in WiFi R32)

TECO Indoor Multi High Wall Split Unit




$573.00 Incl GST
$520.91 Excl GST
In Stock

Calculate Shipping


Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

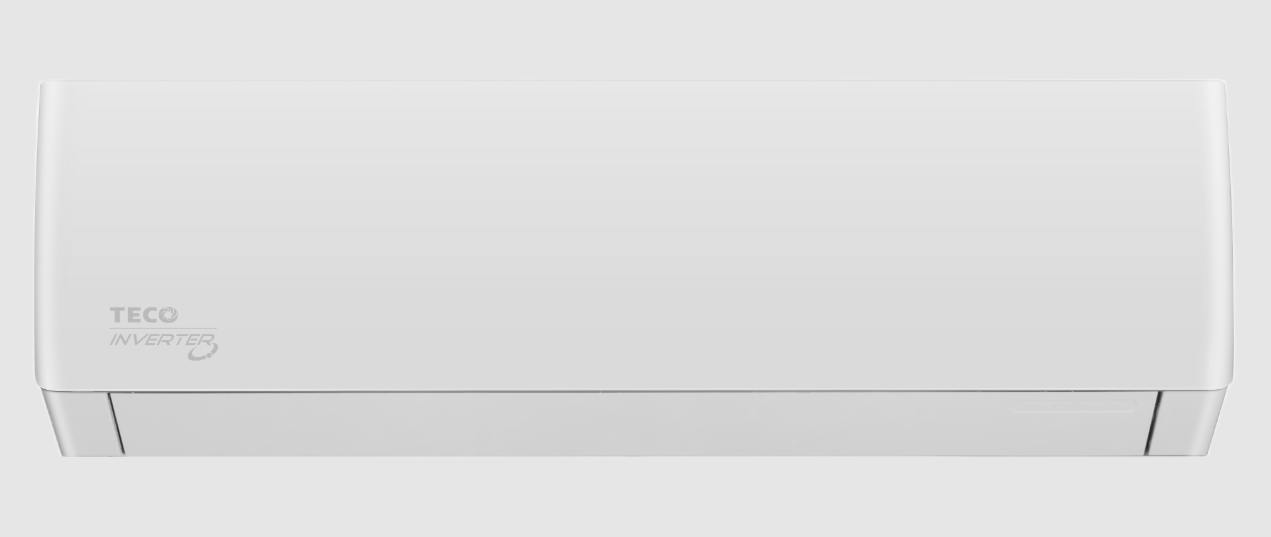

TECO TWSM64HVAG 6.4kW Indoor Only Reverse Cycle Wall Split Air Conditioning Multi Unit (Built-in WiFi)

The TWSM64HVAG 6.4kW High Wall Mounted Indoor Unit is designed to deliver powerful and efficient climate control for larger spaces, including living rooms, open-plan areas, and commercial offices. With Plasmacluster Ion Sterilisation, it enhances indoor air quality by actively neutralising airborne bacteria, viruses, and allergens. Inverter technology ensures precise temperature regulation while reducing energy consumption, making it an efficient choice for residential and commercial environments. The Goldfin-coated heat exchanger provides superior durability and corrosion resistance, ensuring long-term performance even in humid conditions. Featuring WiFi connectivity and an optional wall-mounted controller, this unit offers smart home integration, ease of use, and enhanced comfort.

Key Features:

  • 7 Years Warranty (Domestic Application)
  • 2 Years Warranty (Commercial Application)
  • Built-in Wi-Fi
  • Dehumidify Mode
  • I Feel Function
  • Ion Generator
  • Dry Anti-Mildew Design
  • Turbo Fan Mode
  • Pre-Heat Function
  • Gold Fin Coating - Evaporator Coil

(TWSM64HVAG)

Indoor Unit TWSM22HVAG TWSM26HVAG TWSM35HVAG TWSM50HVAG TWSM64HVAG TWSM71HVAG
Power Supply (V - Hz - Phase) 220-240 / 50 / 1
Cool Capacity Rated/Min-Max (kW) 2.25 (0.35-3.05) 2.65 (0.45-3.7 3.52 (0.55-4.4) 5.2 (1.0-6.5) 6.3 (1.6-8.6) 7.1 (1.1-8.8)
Heat Capacity Rated/Min-Max (kW) 2.7 (0.75-3.75) 3.2 (1.1-3.85) 4.0 (1.1-5.4) 6.0 (1.4-6.9) 7.4 (2.0-9.06) 8.0 (2.0-9.5)
Power Input Rated/Min-Max Cool (W) 600 (110-1100) 575 (110-1250) 830 (190-1500) 1290 (220-2100) 1542 (400-2600) 1844 (450-3100)
Power Input Rated/Min-Max Heat (kW) 720 (150-1250) 745 (150-1350 980 (190-1650) 1460 (210-2300) 1805 (400-3000) 2050 (370-3200)
Min/Max Voltage 198 / 264
Air Flow Volume L/s

144 / 131 / 125 /

117 / 86 / 81 / 69

206 / 175 / 156 /

136 / 117 / 108 / 100

200 / 172 / 156 /

136 / 119 / 108 / 89

292 / 253 / 242 /

231 / 214 / 183 / 167

361 / 306 / 392 /

264 / 250 / 236 / 222

361 / 292 / 278 /

250 / 228 / 208 / 181
Application Area (m2) 10 - 16 12 - 18 16 - 24 23 - 34 27 - 42 27 - 42
Set Temperature Range (C) 16 ~ 30
Sound Pressure Level (dBA)

39 / 36 / 32 /

32 / 28 / 23 / 22

42 / 37 / 36 /

32 / 28 / 24 / 20

44 / 38 / 36 /

34 / 31 / 28 / 23

46 / 41 / 39 /

37 / 35 / 32 / 27

49 / 43 / 41 /

38 / 35 / 33 / 29

50 / 44 / 43 /

40 / 36 / 34 / 32
Sound Power Level (dBA)

55 / 52 / 50 /

48 / 44 / 39 / 38

57 / 52 / 51 /

47 / 43 / 39 / 35

59 / 53 / 51 /

49 / 46 / 43 / 38

62 / 57 / 55 /

53 / 51 / 48 / 43

62 / 55 / 53 /

50 / 47 / 45 / 41

66 / 60 / 59 /

56 / 52 / 50 / 48
Pipe Sizes Liquid/Gas (mm) 6.35 + 9.52 6.35 + 12.7 6.35 + 15.88
Unit Dimensions (HxWxD) (mm) 260 x 704 x 185 293 x 825 x 196 311 x 982 x 221 333 x 1075 x 246
Package Dimensions (HxWxD) (mm) 332 x 753 x 258 365 x 875 x 268 385 x 1044 x 297 414 x 1133 x 333
Net Weight (kg) 7.5 9.5 13 16
Gross Weight (kg) 9 11.5 15.5 19
SKU TWSM64HVAG
Brand TECO
Shipping Weight 19.0000kg
Shipping Width 0.333m
Shipping Height 0.414m
Shipping Length 1.133m
Shipping Cubic 0.156197646m3
Unit Of Measure ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
